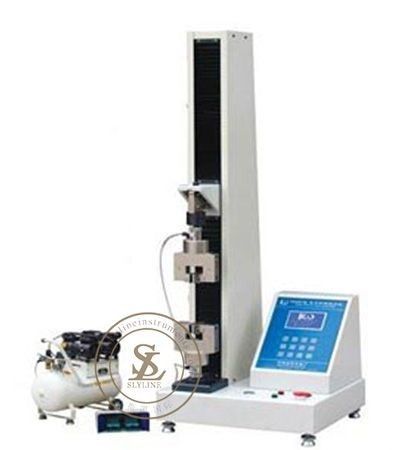

Tensile Strength Tester
Product information
Tensile testing machines It is applied to textiles, dyeing and garment industry to test the breaking strength and others.
It is applied to textiles, dyeing and garment industry to test the breaking strength (including strip method and grab method), extension rate at break ,tearing strength single-blade, double-blade, trapezia),billiard bursting strength and elastic material’s repeat elongation(including elasticity deformation ratio, recovery ratio and plasticity deformation),constant elongation, constant load, cloth commissure slip-off extent, suture slippage, knit goods armpit joint strength, sewing thread and single yarn strength. This machine can also be used for the tensile tests such as zipper, metal, paper, non-woven fabrics, linear materials and leather.
Standards
Breaking strength (sample method) GB/TT3923.1, ISO13934.1, ASTM D5035
(Grab method) GB/T3923.2 ISO13934.2 ASTM D5034
Tear strength (tongue-shaped tear) GB/T3917.2 ISO13937.2 ASTM D2261
Technical Parameter
| Measuring range |
1-100% full scale |
| Model |
-50 -100 -300 |
| Range |
500N 1000N 3000N |
| Test Accuracy |
≤±0.1%F.S |
| Drawing speed |
0.1~1000mm/min(Arbitrary) |
| Regen Rate |
~1000mm/min (Arbitrary) |
| Sampling frequency more than |
2000 times/s |
| Elongation Resolution |
≤0.01mm |
| Effective stroke |
800mm |
| External Dimensions |
500×460×1350mm |
| Power |
AC220V±10% 50Hz |
| Weight |
125kg |
