SL - F34 Textile Anti - Hook Tester Nail Hammer Hook Performance Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-F34
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 10-15 days
Payment Terms , Western Union, T/T, D/P
Supply Ability 1 unit/ week
Product Details
SKYLINE: Nail Hammer Hook Performance Tester Number Of Stations: 4 Stations
Rotating Speed: 60±2r/min Counting Range: 0~99999
Felt Thickness: 3 ~ 3.2mm; Width 165mm Power: AC220V, 50Hz, 200W
Highlight:

textile lab equipment

,

textile testing instruments
Product Description

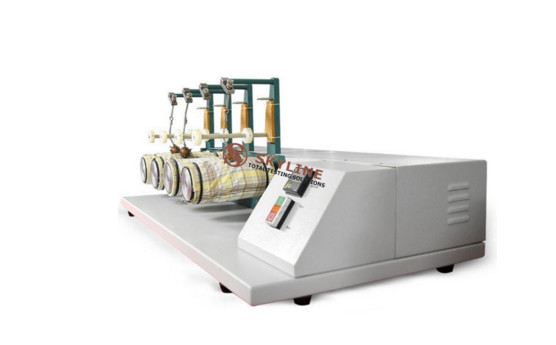

SL-F34 Nail Hammer Hook Performance Tester


Use
It is used for the anti-hook performance test of knitted fabrics and other easy-to-hook fabrics.


Standards compliant
GB11047, ASTM D3939.


Technical Parameters

 Number of stations  4 stations
 Rotating speed  60±2r/min
 Counting range  0~99999
 The diameter of the drum  Φ82mm; width 210mm
 The quality of the hammer  160 ± 10g
 The number of nails implanted  11
 Needle nail exposed length  10mm; tip radius R0.13mm
 Felt thickness  3 ~ 3.2mm; width 165mm
 The working width of the guide rod  125mm
 Distance between nail hammer and guide rod  45mm
 Power  AC220V, 50Hz, 200W
 The external dimensions  630 × 450 × 650 mm
 Weight  60kg
