Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Drop-Test-Machine-Product Maximum Weight Of Test Piece: 2kg±100g
Drop Height: 400 ~ 1500mm (adjustable) Drop Height Scale: Accuracy 1mm
The Use Of Air Pressure:: 0.4 MPa Power: 1 ∮, 220V, 3A
Highlight:

sharp edge tester

,

electronic testing machine
Product Description

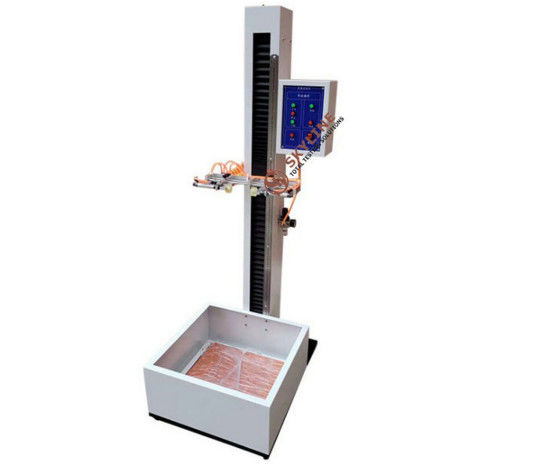

Drop test machine product



Use
This machine is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test; the machine uses pneumatic structure, will be tested Put it in a special fixture (adjustable stroke), press the down button, the cylinder will be loose, the test piece will be free fall test, the drop height can be adjusted up and down, the altimeter can know the drop height of the test piece, the key components of the machine Reliable performance, a variety of drop floor available.

Standards
UN38.3, IEC62133, QC/T743-201X


Technical parameters

 Maximum weight of test piece  2kg±100g
 Drop height  400 ~ 1500mm (adjustable)
 Drop height scale  accuracy 1mm
 Clamping method  pneumatic clamp
 Falling floor media  acrylic plate, stainless steel plate (customer-supplied)
 The drop method  free fall
 The bottom plate size  560x410mm

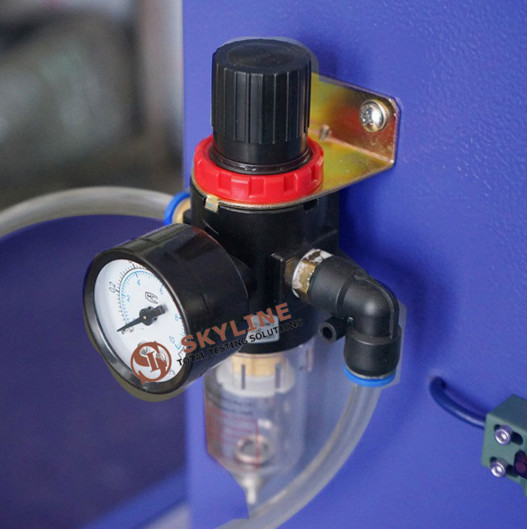

 The use of air pressure  0.4 MPa
 Machine size  700x900x1650mm
 Weight  80kg
 Power  1 ∮, 220V, 3A



Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester
