Outsole Belt Flexing Tester is Designed for Flexing Outsoles

Name: Outsole Belt Flexing Tester is Designed for Flexing Outsoles
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L25
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L25

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                abrasion resistance tester, shoe wear tester


SKYLINE:	Outsole Belt Flexing Tester	Belt Size:	Length: 1930±50mm Width: 140±5mm
Rotating Speed Of Sack:	90±8 Cycles/min	Sampling:	MAX.6 Pcs
Counter:	LCD 0~999,999	Dimension （W×D×H）:	131 Cm ×82cm ×69cm
Weight (Approx):	170kg	Power:	AC220V 50Hz/60Hz (specified By User)

SKYLINE:	Outsole Belt Flexing Tester
Belt Size:	Length: 1930±50mm Width: 140±5mm
Rotating Speed Of Sack:	90±8 Cycles/min
Sampling:	MAX.6 Pcs
Counter:	LCD 0~999,999
Dimension （W×D×H）:	131 Cm ×82cm ×69cm
Weight (Approx):	170kg
Power:	AC220V 50Hz/60Hz (specified By User)

Product Description

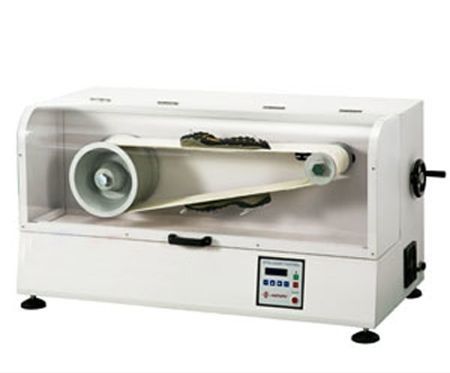

Outsole Belt Flexing Tester

Product information

This machine is designed for flexing outsoles. It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.

Technical parameters

Belt Size	Length: 1930±50mm Width: 140±5mm
Rotating Speed of Sack	90±8 cycles/min
Sampling	MAX.6 pcs
Counter	LCD 0~999,999
Motor AC	1/2HP variable freq. motor
Dimension (W×D×H)	131 cm ×82cm ×69cm
Weight (Approx)	170kg
Power	AC220V 50Hz/60Hz (specified by user)
