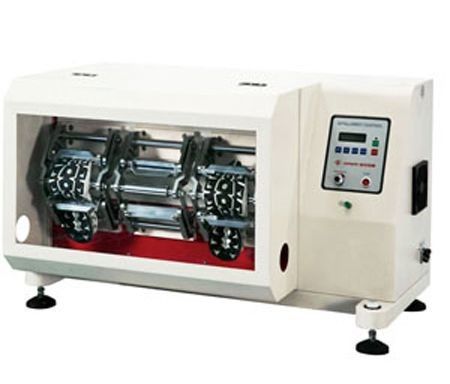

Sole Belt Flexing Tester to Determine the Resistance of Materials

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L26

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price
Product Details
Highlight:

abrasion resistance tester

,

shoe wear tester

SKYLINE:
Sole Belt Flexing Tester
Bending Angle:
90 ± 1
Bending Speed:
0-150cpm
Width Of Grips:
144mm
Counter:
LCD 0~999,999
Dimension (W×D×H):
100*45*45cm
Weight:
100kg
Power:
AC220V 50HZ 0.4KW
SKYLINE:
Sole Belt Flexing Tester
Bending Angle:
90 ± 1
Bending Speed:
0-150cpm
Width Of Grips:
144mm
Counter:
LCD 0~999,999
Dimension (W×D×H):
100*45*45cm
Weight:
100kg
Power:
AC220V 50HZ 0.4KW
Product Description

Sole Belt Flexing Tester/Shoes Sole Bending Test Machine



Application

Shoes Sole Bending Test Machine is used to determine the resistance of materials to cut growth, during repeated flexing. It’s especially applicable to outsoles of footwear including sole constructions.
Use a cutting tool to piece the specimen between the cleats at three points along the line of maximum bending stress. By the specified speed and times of 90bending action to inspect the cuts growth with a measuring.


Technical parameters

 Bending angle  90 ± 1
 Circular shaft D  30mm
 Bending speed  0-150cpm
 Width of grips  144mm
 Capacity  3sets
 Counter LCD  0-999 999
 MOTOR AC frequency motor
 Dimension  100*45*45cm
 Weight  100kg
 Power  AC220V 50HZ 0.4KW
