ISO 18895 EN 12958 Footwear Testing Equipment Shank Fatigue Resistance Tester

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-L2
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 35 work days
Payment Terms Western Union, , T/T
Product Details
SKYLINE: Shank Fatigue Resistant Tester Test Speed: 0-300cpm
The Distance Between The Fixtures: 7±0.1cm Weight: 90kg
Volume: 50*30*40cm Standards: ISO 18895 EN 12958
Highlight:

abrasion resistance tester

,

shoe wear tester
Product Description

ISO 18895 EN 12958 Footwear Tesitng Equipment Shank Fatigue Resistant Tester


Production information
Shank fatigue resistant test is suitable for the test shoes with the core of the resistance to fatigue.

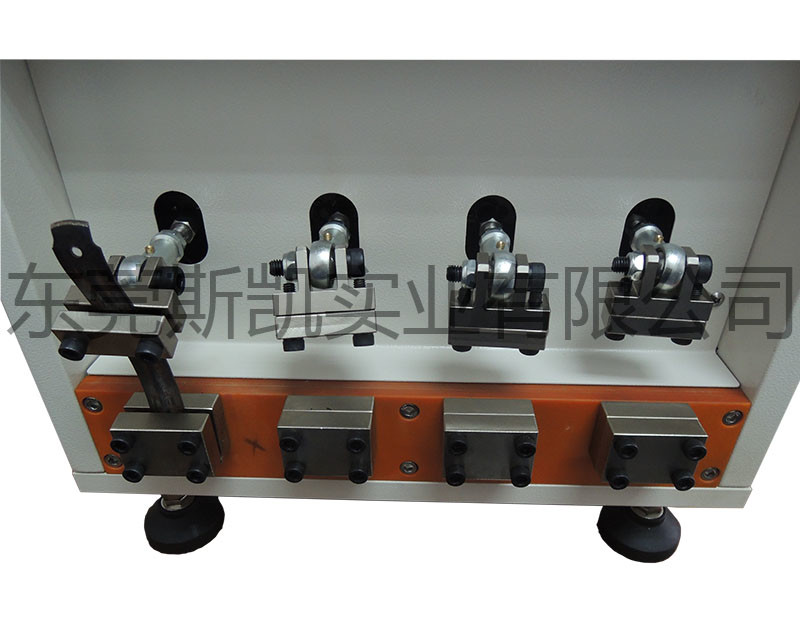

The principle is the core of both ends with two sets of clamps fixed, and subjected to a certain amount of force applied to the fixture at the core frequency per second, four cycles reciprocating bending movement
View the sample after a certain number of the extent of the damage.



Parameters

 Test speed  0-300cpm
 Imposed in the sample loop force  5±0.2KG
 The distance between the fixtures  7±0.1cm
 Counter Six figure  LCD 0-999 999
 Volume  50*30*40cm
 Weight  90kg
 Power  AC220V 0.4KIW 50Hz



Testing standards

 ISO 18895 EN 12958
