ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test

Name: ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test
Brand: SKYLINE
SKU: SL-L19
Rating: 4.7 (179 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L19

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                rub resistance tester, shoe wear tester


SKYLINE:	Footwear Compression And Puncture Resistant Tester	Sensor Capacity:	20KN
Load Resolution:	1/20000	Accuracy:	Within 1%
Compression Speed:	5 ± 2mm/min	Weight:	148kgs

SKYLINE:	Footwear Compression And Puncture Resistant Tester
Sensor Capacity:	20KN
Load Resolution:	1/20000
Accuracy:	Within 1%
Compression Speed:	5 ± 2mm/min
Weight:	148kgs

Product Description

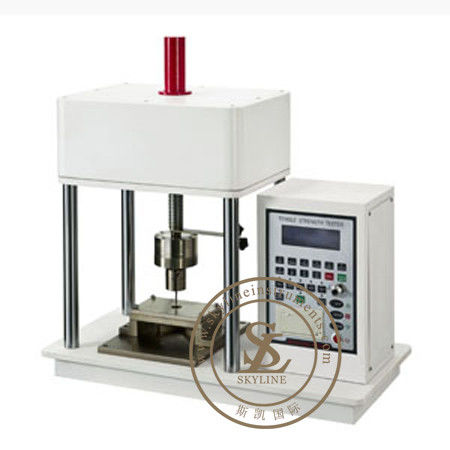

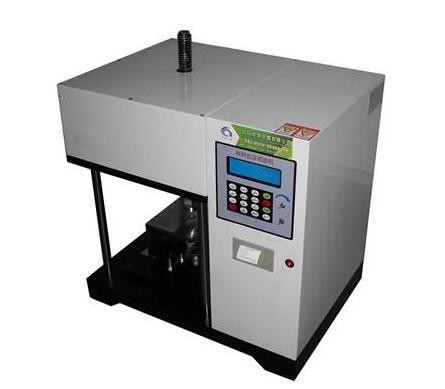

ISO 20344 Footwear Testing Equipment Safety Shoes Compression Puncture Resistant Tester

Product introduction

Safety Shoes Compression Puncture Resistant Tester is used to measure the compression strength for safety shoes steel head and puncture-resistant performance for steel plate. It Suitable for all types of steel head compression for safety shoes and puncture-resistant test for steel plate,and to prevent the injury of accident to operator in the workplace by wearing owing to the security of shoe

It is used to determine the safety footwear ability to resist the compression

Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.

Specification

Sensor capacity	20KN
Load resolution	1/20000
Accuracy within	1%
Display system English controller
Compression speed	5 ± 2mm/min
Motor AC motor, control system
Measuring fixture compression/puncture fixture
Dimension	825871cm
Weight	148kg
Power	AC220V 50HZ 0.4KW

Test Standards

ISO 20344 ANSI Z41 LD50,A EN12568；ANSI；JIS；CSA；
