Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus

Name: Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
Brand: SKYLINE
SKU: SL-SE04
Rating: 4.6 (178 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-SE04

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                sharp edge tester, electronic testing machine


SKYLINE:	Glow Wire Test Equipment	Temperature Range:	500 ~ 750℃±10℃,750 ~ 960℃±15℃
Burner Angle:	0,°20°, 45° (adjust Flame Height)	Test Speed 18±3mm/s:	18±3mm/s
Sample Pressure:	1N ± 0.2 N	Standards:	IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1GB2099.1IEC60335-1,GB4706.1,VDE0620

SKYLINE:	Glow Wire Test Equipment
Temperature Range:	500 ~ 750℃±10℃,750 ~ 960℃±15℃
Burner Angle:	0,°20°, 45° (adjust Flame Height)
Test Speed 18±3mm/s:	18±3mm/s
Sample Pressure:	1N ± 0.2 N
Standards:	IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1GB2099.1IEC60335-1,GB4706.1,VDE0620

Product Description

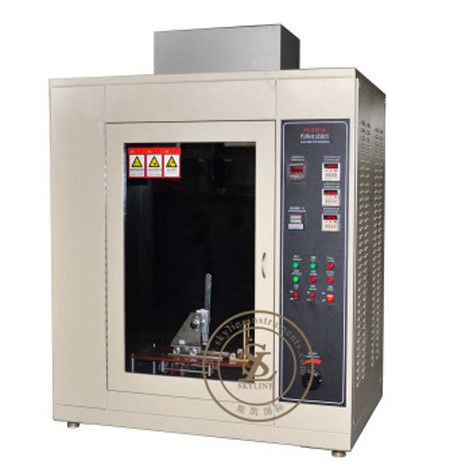

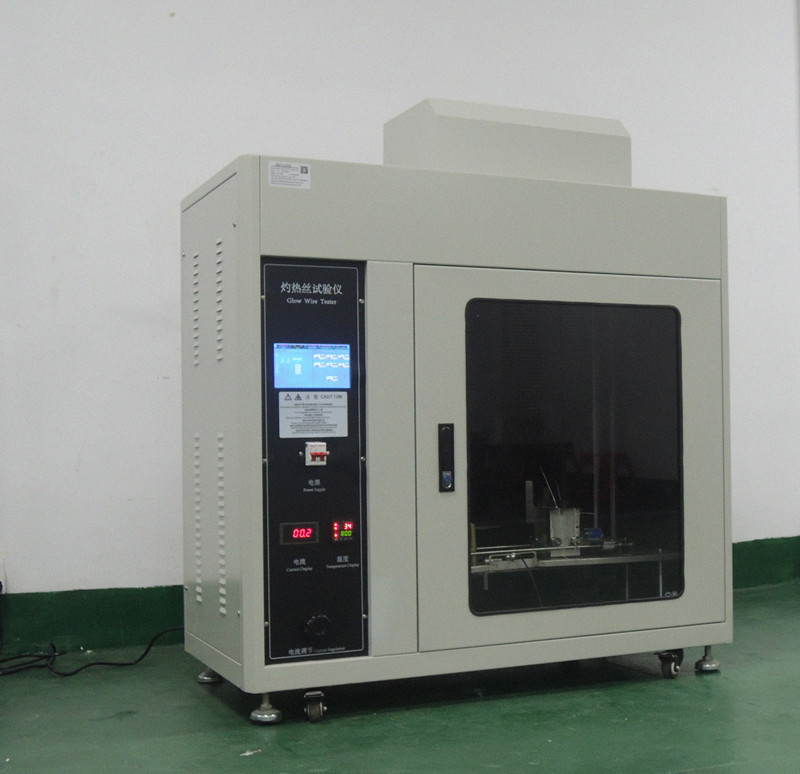

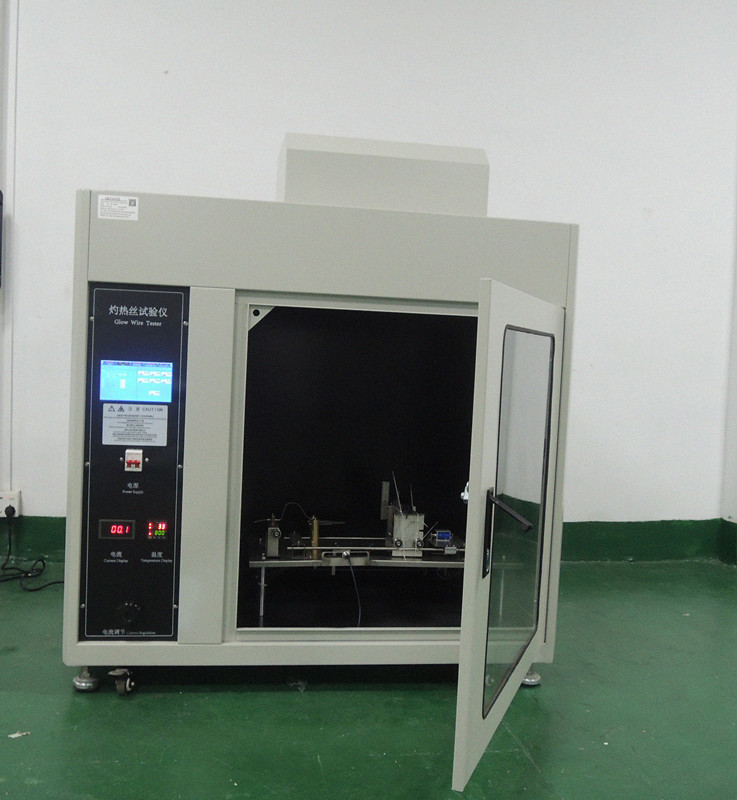

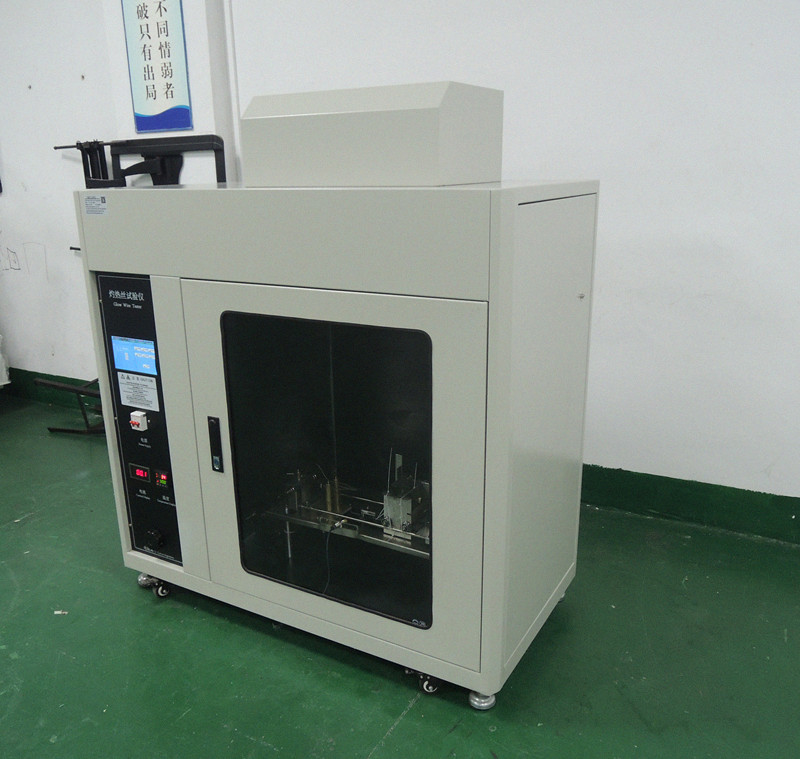

Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus

Application

a.The Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.
b.The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.
c. A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

Technical parameters

Glow wire diameter	4mm±0.04mmNi/Cr(80/20)
Temperature range	500 ~ 750℃±10℃；750 ~ 960℃±15℃
Thermocouple diameter	0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40~ 1100°C
Searing Time	30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)
Light-off Time	0-999.9 s ± 0.1 s, automatic recording, manual time out
Fire out time	0-999.9 s ± 0.1 s, automatic recording, manual time out
Ironing into depth	7mm ± 0.5 mm
Sample pressure	1N ± 0.2 N
Test speed	18±3mm/s
Test background black background
Test process automatic control, independent convulsions
Chamber	≥0.5m
Control Using single chip microcomputer + touch screen control
Power Supply	AC 220V,50Hz

Standards

IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1,GB2099.1,IEC60335-1,VDE0620
