BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-S18-B

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 2 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                flammability test chamber, flammability test apparatus


SKYLINE:	BS 5438 Flammability Testing Equipment	U Shape Fixture Frame:	160mmx250mm
Marker Threads:	45 Tex To 50 Tex	Rectangular Fixture Frame:	160mmx700mm
Dimension:	76x52x110cm	Weight:	55kgs

SKYLINE:	BS 5438 Flammability Testing Equipment
U Shape Fixture Frame:	160mmx250mm
Marker Threads:	45 Tex To 50 Tex
Rectangular Fixture Frame:	160mmx700mm
Dimension:	76x52x110cm
Weight:	55kgs

Product Description

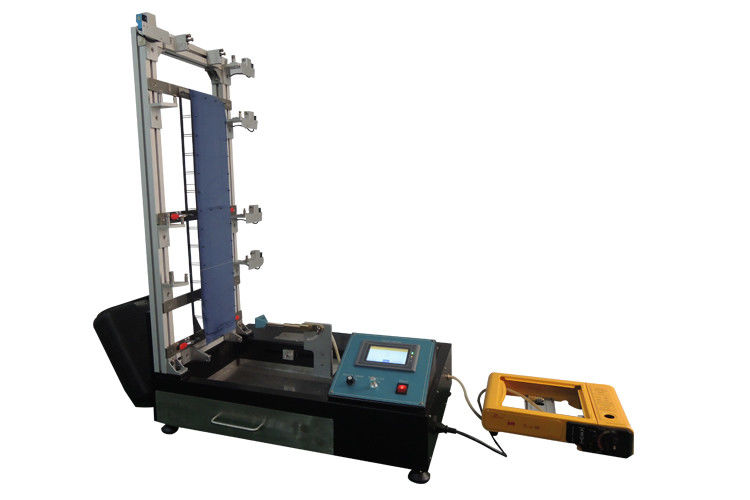

BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear

Applications

This tester is used to test the flammability performance of fabric, multi-layer fabric,fabric assemblies used in dress gowns and sleepear.

Performance requirements

Three specimens shall be tested in the machine direction and three in the cross direction in
accordance with test 3 of BS 5438 using a 10 s flame application time, except that the vertical trip threads shall not be used. None of the six specimens shall sever the 300 mm trip thread in less than 25 s.
None of the six specimens shall sever the 600 mm trip thread in less than 50 s.
If any one of the six specimens tested fails to comply with either performance requirement, then a further six specimens shall be tested
None of the second group of specimens shall fail either of the performance requirements.

Specification

Item	Specification
Ignition time setting range	0~99.99s
Combustion timing range	0~999.9s

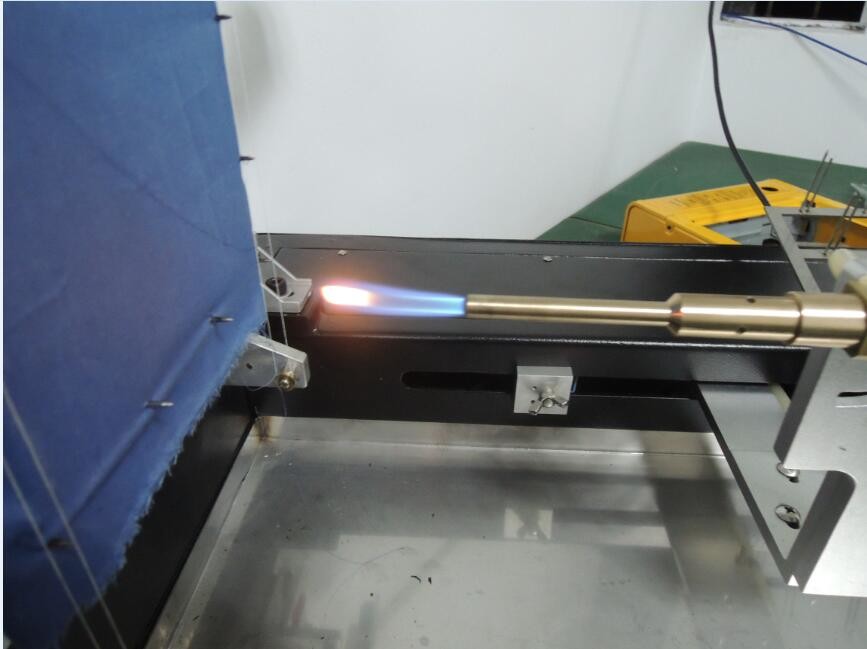

Burner	complies with BS 5438
Burner angle	can be moved (horizontal and veritical)
Test Flame Height	can be adjutable
U Shape Fixture Frame	160mmx250mm
U-shaped clamp marking line position	The first marking line is from the mouth of the fire mouth 167mm, the second mark line distance from the first mark line distance of 150mm, the third mark line distance from the second mark line distance of 300mm
Rectangular fixture frame	160mmx700mm
Combustion gas	Butane Gas
Dimension (WxDxH)	76x52x110cm
Weight	≈55Kg
Power supply	1∮ AC 220V 50Hz

BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear 0
