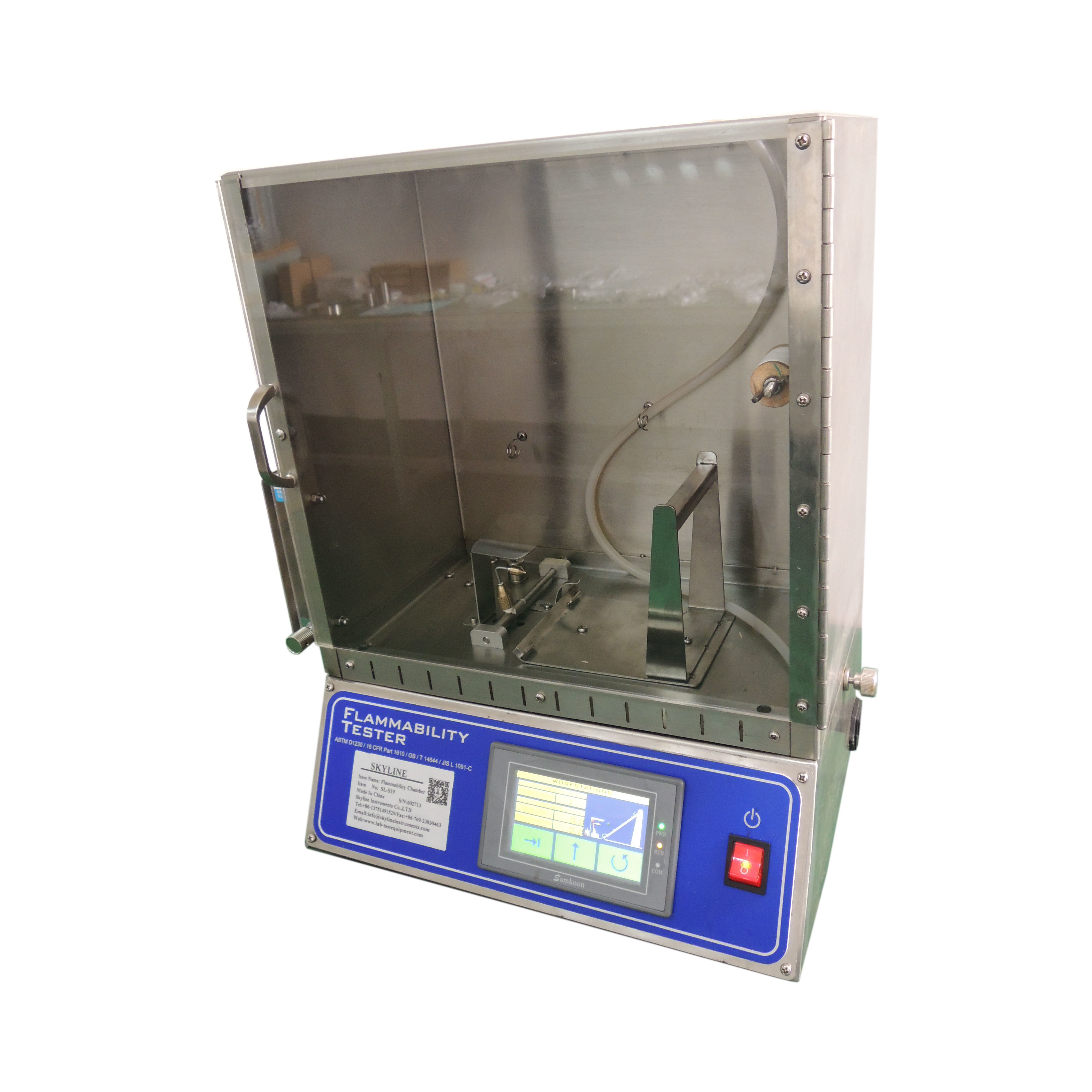

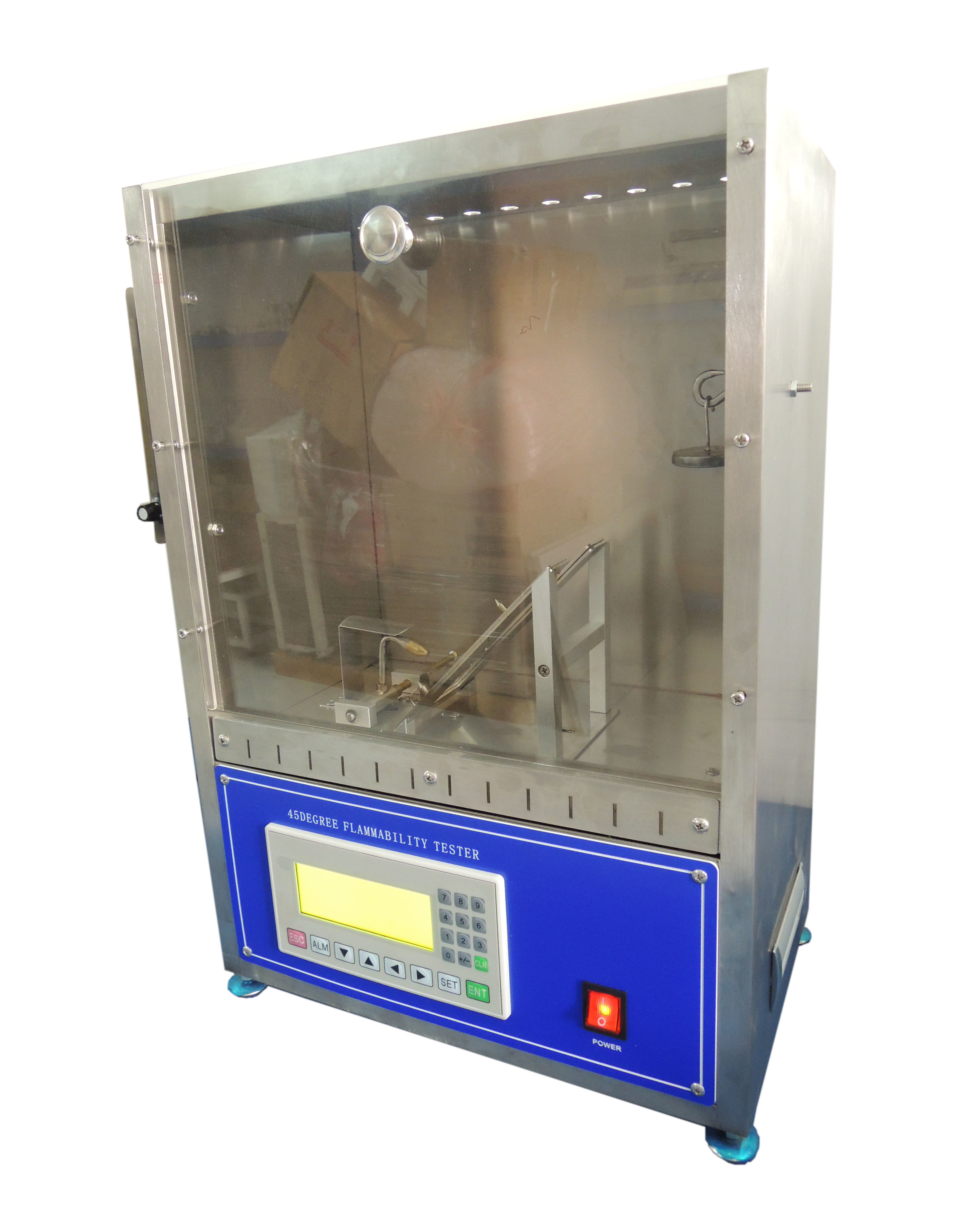

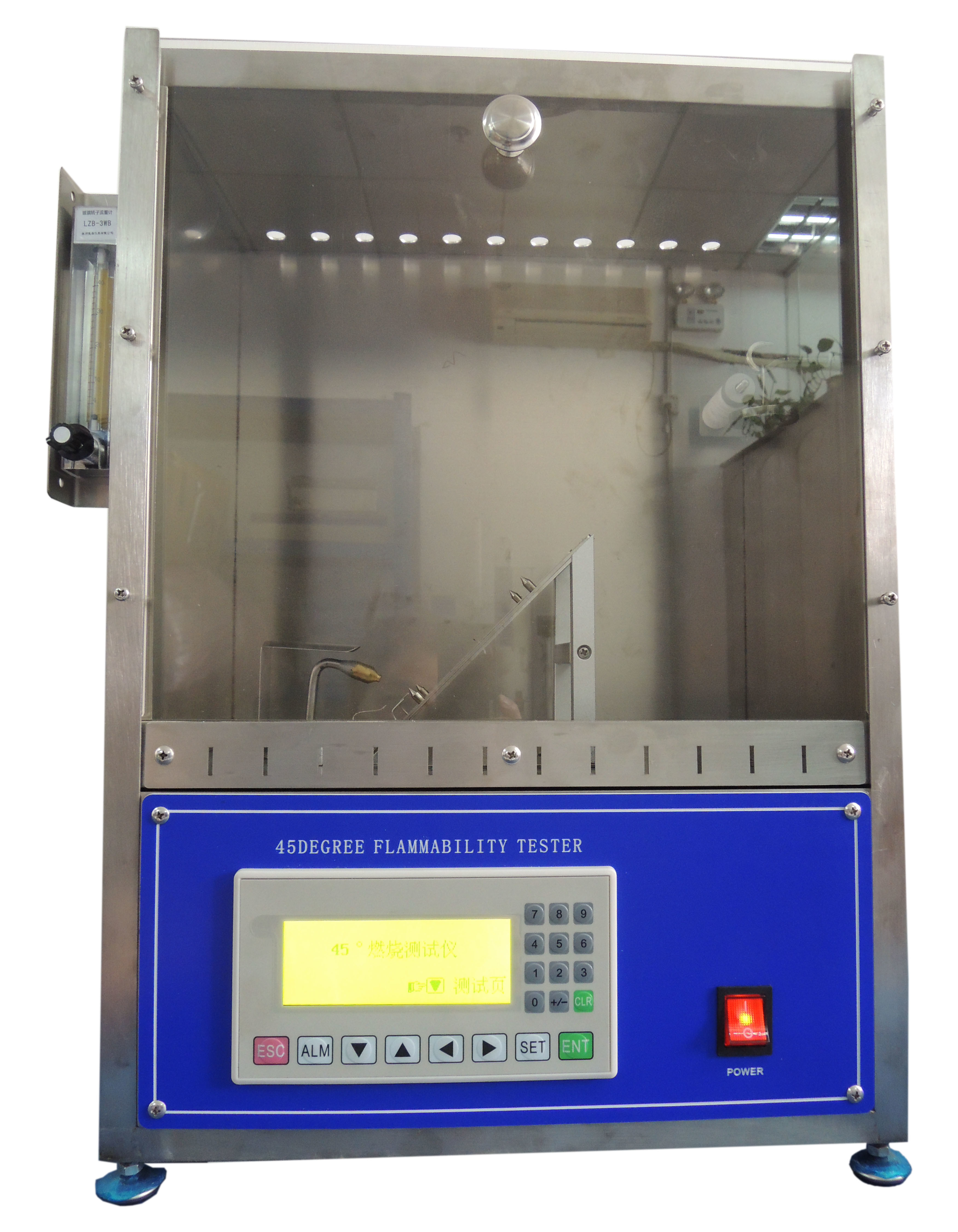

ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S19

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: neogitable

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                horizontal flammability tester, flammability test apparatus


SKYLINE:	45 Degree Automatic Flammability Tester	Standards:	ASTM D1230, FTMS191-5908, CFR 16-1610, CALIF TB117
Ignition Time:	0.1s Can Be Set	Dimension:	400 X 300 X 500mm (LWH)
Weight:	45kg	Controller:	PLC

SKYLINE:	45 Degree Automatic Flammability Tester
Standards:	ASTM D1230, FTMS191-5908, CFR 16-1610, CALIF TB117
Ignition Time:	0.1s Can Be Set
Dimension:	400 X 300 X 500mm (LWH)
Weight:	45kg
Controller:	PLC

Product Description

ASTM D1230 Flammaility Testing Equipment 45 Degree Automatic Flammability Tester

Indroduction

45 Degree is used to evaluate compliance of fire-retardant products with fire-retardant performance standards according to the combustion method, and measures combustion characteristics such as After Glow and After Flame of test specimen installed at a 45-degree angle.

45˚ Flammability tests After Flame Time and After Glow Time of specimen by heat in the chamber.

This measures flame retardance about specimen of less than 5 mm thick (Board, Plate, Sheet, Film and so on) by 45˚ Micro and Airmix method and evaluates materials about 3rd grade of flame retardance (less than 15cm and 5 seconds)

To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.

Key Specification

Time Display	0-99.9S
Resolving Capability	0.1S
Ignition time	1s or set it Set arbitrary
Dimensions	400 x 300 x 500mm (LWH)
Power	AC 220V / 50Hz / 2A
Standards	ASTM D1230, CRF 16-1610
Weight	45kg

Standards:

• KS F 2819 : Testing Method For Incombustibility Of Thin Materials (Testing Method for incombustibility of thin materials for construction)
• ASTM D 1230 Canadian Minimum Flammability Standards for most fabrics
• NFPA 702 Forced edge ignition of fabrics cited by California for Hospital Apparel and Bedding Fabrics
• CA TB 117 (2000) Upholstery Fabrics (Section E) Synthetic Filling (Section C)
• BIFMA Upholstery material screening test

ASTM 45 Degree Flammability Tester.pdf

ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel 0

Brush device
