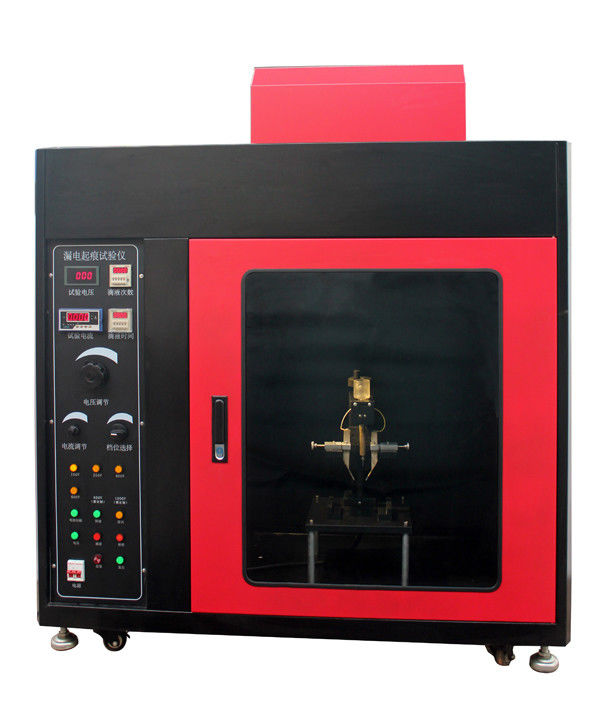

IEC60695 Comparative Tracking Index Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-E10
Minimum Order Quantity 1 unit
Price neogitable
Packaging Details plywood case
Delivery Time 10 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit / month
Product Details
SKYLINE: Tracking Index Tester Standards: IEC60695 / IEC60112
Test Current: Current Limiting 1A±0.1A Adjustable, Test Voltage: 100~600V Adjustable, Displayed Value: R.m.s
Chamber Volum: >0.5m³, Black Interior Power Supply: 800VA ,220V, 48-60Hz
Highlight:

flammability test chamber

,

flammability test apparatus
Product Description

IEC60695 Tracking Index Tester for Led luminaires Testing and Electronic Products



Product information

Tracking Index Tester is based on IEC60695, GB4207 / IEC60112 and other standards designed and manufactured special detection equipment. It is suitable for the determination of solid insulation material under the wet condition compared with the tracking index and the tracking index of the tracking resistance. It is simple, accurate, reliable and practical.



Technical Parameters

 Electrode  Materials  The electrode caput of brass-platinum
 Electrode  Distance  4.0mm±0.1mm,60±5°angle
 Test Voltage  100~600V adjustable, displayed value: r.m.s

 Test Current





  Current limiting 1A±0.1A adjustable,
   displayed value:r.m.s, tolerance of 1.5%

 Electrode Dimensions





  width: 5mm±0.1mm,
   thickness: 2mm±0.1mm,
   length >12mm,
   end chisel-edge angle : 30°±2°,platinum.
 Electrode Pressure  1.00N±0.05N
 Dripping Nozzle  outer diameter: 0.9mm~1.2mm for solution A
   0.9mm~3.45mm for solution B
 Dripping Interval

 0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable)

drops to fall on the specimen shall be (30±2)min.
 Heigh Drops  30-40mm±5mm(adjustable)
 Control  Using single chip microcomputer + touch screen control
 Chamber volume  >0.5m³, black interior
 Outer Dimensions  W*D*H=1100mm*700mm*1300mm
 Power Supply  800VA ,220V, 48-60Hz

IEC60695 Comparative Tracking Index Tester
