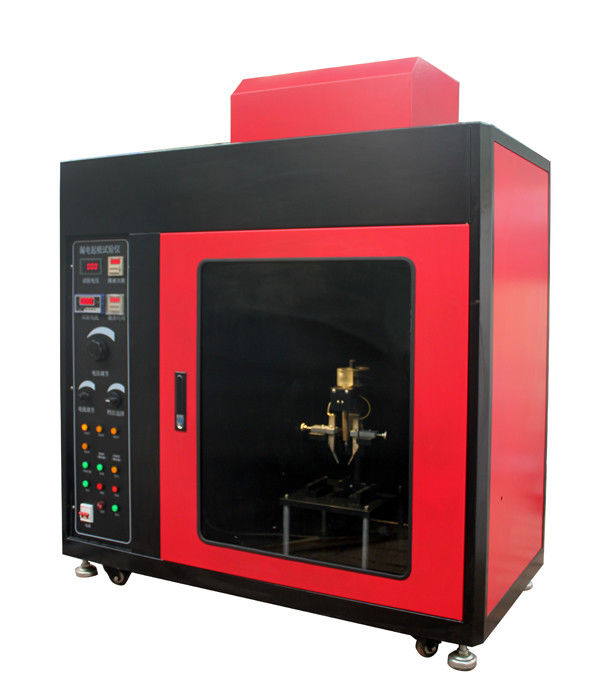

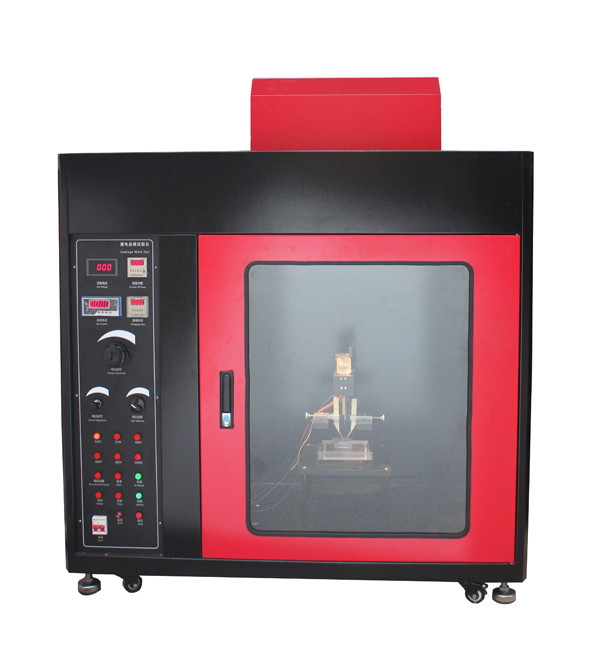

Flammability Test Apparatus , Tracking Index Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-E10
Minimum Order Quantity 1 unit
Price neogitable
Packaging Details plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 1 unit / month
Product Details
SKYLINE: Tracking Index Tester Standards: IEC60695,GB4207/IEC60112
Electrode Dimensions: Width: 5mm±0.1mm Thickness: 2mm±0.1mm,
Electrode Pressure: 1.00N±0.05N Power Supply: 800VA ,220V, 48-60Hz
Highlight:

horizontal flammability tester

,

flammability test apparatus
Product Description

Tracking Index Tester For Evaluating Leakage Resistance



Product introduction

This Tracking Index Apparatus is strictly designed and manufactured in accordance with IEC60112,IEC60335-1, IEC60598-1 and GB4207

Measure the relative resistance to traceability of the surface of the solid electrical insulating material when exposed to impurities containing water at a voltage of up to 600 V.
When the voltage is applied between the electrode means provided on the surface of the material and the electrolyte is dropped between the two electrodes at a predetermined time interval, it is possible to generate an electrical mark in this test case. The number of droplets necessary to cause material damage increases as the applied voltage decreases, and at less than a certain limit, no traceability occurs.
When the material in the highest test voltage is not electric marks, can have different degrees of corrosion, and corrosion depth can be measured. Some materials can burn during the test.



Technical Parameters

 Electrode Materials  The electrode caput of brass-platinum
 Electrode Distance  4.0mm±0.1mm,60±5°angle
 Test Voltage  100~600V adjustable, displayed value: r.m.s

 Test Current





  Current limiting 1A±0.1A adjustable,
   displayed value:r.m.s, tolerance of 1.5%

 Electrode Dimensions





  width: 5mm±0.1mm,
   Thickness: 2mm±0.1mm,
   length >12mm,
   end chisel-edge angle : 30°±2°,platinum.
 Electrode Pressure  1.00N±0.05N
 Dripping Nozzle  outer diameter: 0.9mm~1.2mm for solution A
   0.9mm~3.45mm for solution B
 Dripping Interval

 0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable)

drops to fall on the specimen shall be (30±2)min.
 Heigh Drops  30-40mm±5mm(adjustable)
 Control  Using single chip microcomputer + touch screen control
 Chamber volume  >0.5m³, black interior
 Outer Dimensions  W*D*H=1100mm*700mm*1300mm
 Power Supply  800VA ,220V, 48-60Hz
