DIN 4102-1 ISO 11925-2 Building Materials Flammability Ananlyzer
Introduction:

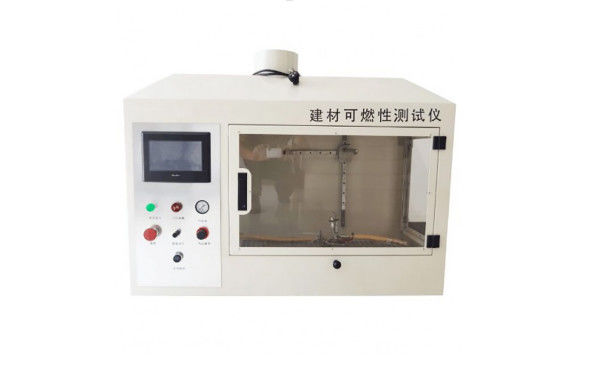

DIN 53438 ISO 11925-2 Building Materials Flammability Ananlyzer is designed
and made according to ISO11925-2, it is used to test building material under
condition in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of this building material products.
Application:
Building Materials
Rail
IMO
Standards:
DIN4102-1 Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
EN ISO 11925-2 Reaction to fire tests -- Ignitability of products subjected to direct impingement of flame -- Part 2: Single-flame source test
DIN 53438 Testing of combustible materials
Features:
1. Box paint treatment, beautiful.
2. The combustion chamber dimensions: length 700mm *width 400mm * high 600mm.
3. The flame height can be adjusted, automatic ignition.
4. The flame burning application time and hold time can range from 0 to 99
minutes 99 seconds regulation.
5. Combustion angle: 0 ° (vertical), 45 °.
6. The burner can be moved in a horizontal direction.
7. Glass doors for easy observation test.
8. All fixtures are made of stainless steel; beautiful and anti-corrosion.
9. Equipped with two types of stainless steel sample holder. With flame height measuring.
10. High degree of test automation, test data accurate, easy to operate.
Control System:
1.Programmable Logic Controller (PLC) Control.
2.Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection.
3.LCD touch screen display.
4.Real-time monitoring of experimental data, queries six samples of experimental
data, query alarm content.
Specification:
| Product Name |
DIN 53438 ISO 11925-2 Building Materials Flammability Ananlyzer |
| Dimension |
400mm(W)*700mm(D)*600(H) |
| Power |
AC 220V, 50/60Hz, 10A |
| Weight |
about 50kg |
