Leather Testing Equipment SATRA TM172 Leather Permeability Testing Machine

Name: Leather Testing Equipment SATRA TM172 Leather Permeability Testing Machine
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.8 (143 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Leather Permeability Testing Machine, BS 3144 leather testing machine


SKYLINE:	Leather Permeability Testing Machine	Temperature Range:	-40℃-150℃
Humidity Range:	20%-98%R.H	Temperature Fluctuation:	±0.5℃
Humidity Fluctuation:	±2.5%R.H	Standards:	SATRA TM172、EN ISO 20344、BS 3144、GB/T20991-2007

SKYLINE:	Leather Permeability Testing Machine
Temperature Range:	-40℃-150℃
Humidity Range:	20%-98%R.H
Temperature Fluctuation:	±0.5℃
Humidity Fluctuation:	±2.5%R.H
Standards:	SATRA TM172、EN ISO 20344、BS 3144、GB/T20991-2007

Product Description

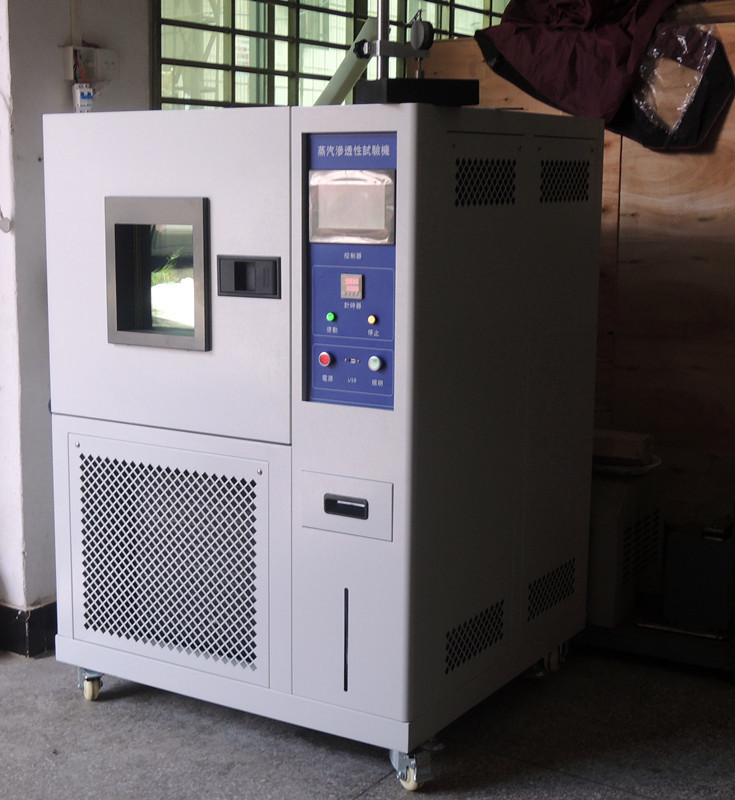

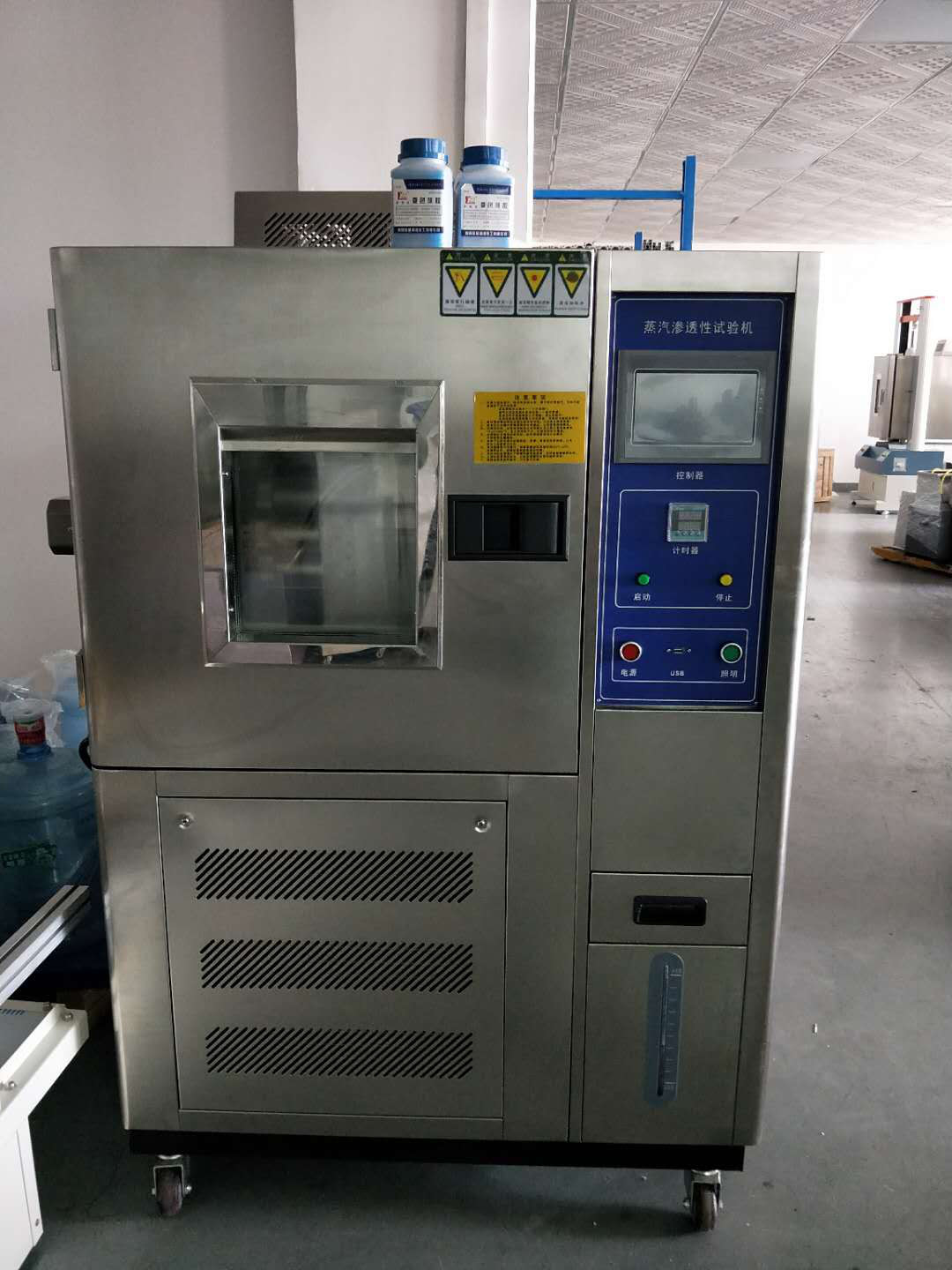

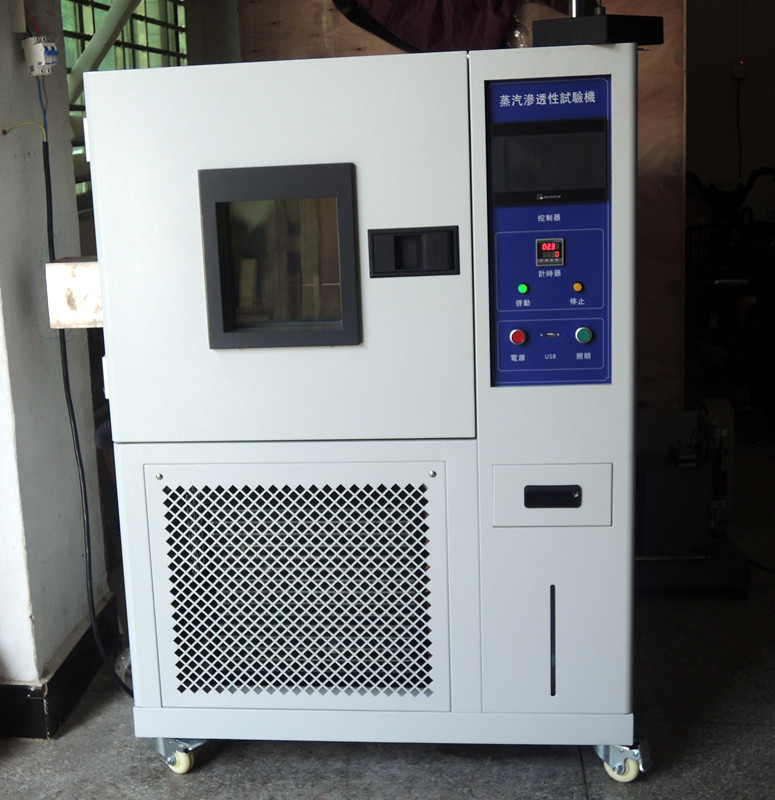

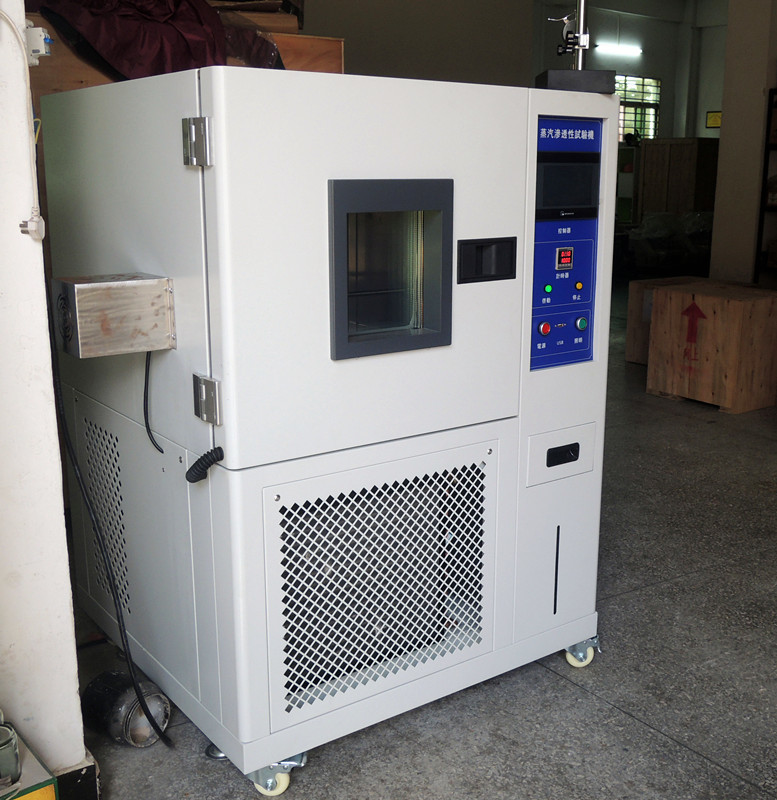

Leather Permeability Testing Machine

Product Introduction
Fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant in the water vapor permeability tester, so as to separate the desiccant in the bottle from the air outside the bottle by the test piece. The water vapor permeation tester rotates the test bottle and rotates the fan disturbed by the air. The continuously moving desiccant continuously absorbs the water vapor passing through the test piece, and the quality of the water vapor absorption by weighing the test bottle desiccant within a certain time Size to evaluate the water vapor permeability of the test material.

Reference standard
Comply with SATRA TM172, EN ISO 20344, BS 3144, GB/T20991-2007 and other standards.

Technical parameters

Temperature range	-40℃-150℃
Temperature fluctuation	±0.5℃
Temperature deviation	±2℃
Humidity range	20%-98%R.H
Humidity fluctuation	±2.5%R.H
Humidity deviation	±3%R.H
Fan speed	(1400±100) r/min
Bottle diameter	(30±1) mm
Bottle speed	(75±5) r/min
Distance from bottle mouth to fan	(10±5) mm
Power supply	AC220V, 4KW
Volume	10516598cm
Weight	205kg

Random accessories
1. 2 bottles of desiccant and 1 knife mold.
2. Six aluminum bottles and one power cord.
3. instruction manual

one warranty certificate.
