Footwear Testing Equipment Vamp Flex Test Resistance To Creasing And Cracking

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L17

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Vamp Flexing Tester, Vamp Flex Test Equipment


SKYLINE:	Vamp Flexing Tester	Standards:	SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288
Flexing Speed:	300±30CPM	Dimension:	54 Cm × 35 Cm × 30 Cm
Weight:	64kg	Sample Size:	64x64mm

SKYLINE:	Vamp Flexing Tester
Standards:	SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288
Flexing Speed:	300±30CPM
Dimension:	54 Cm × 35 Cm × 30 Cm
Weight:	64kg
Sample Size:	64x64mm

Product Description

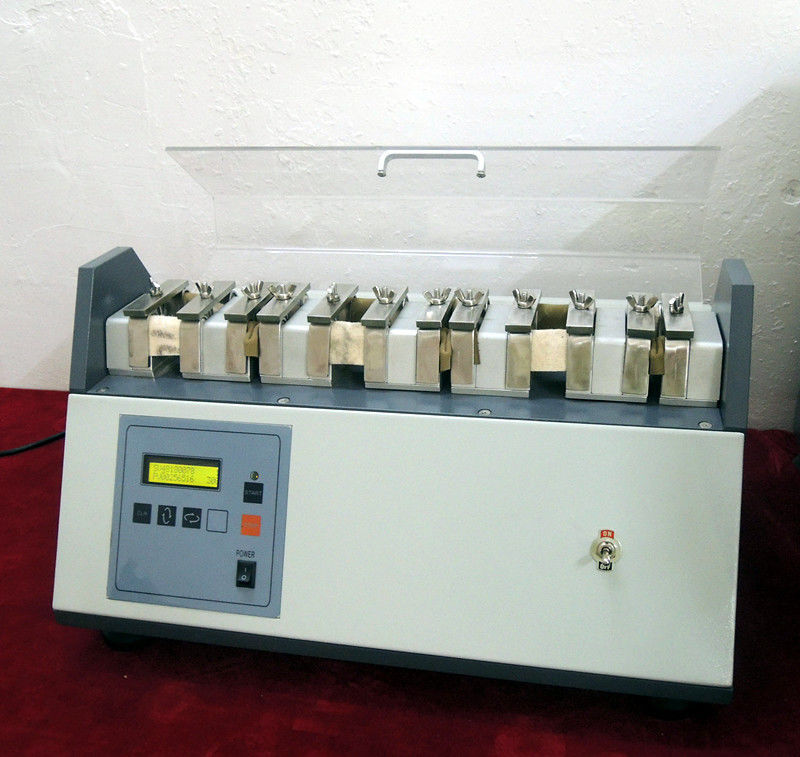

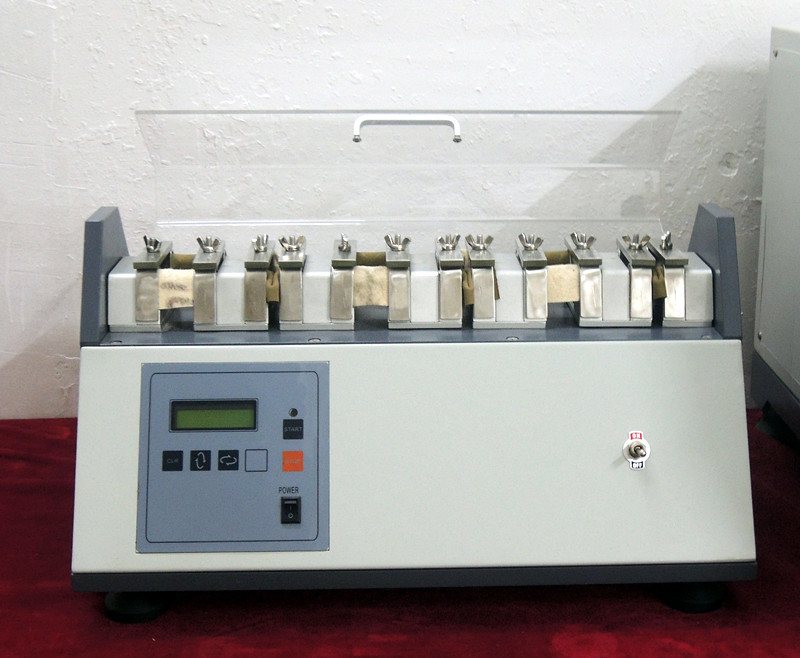

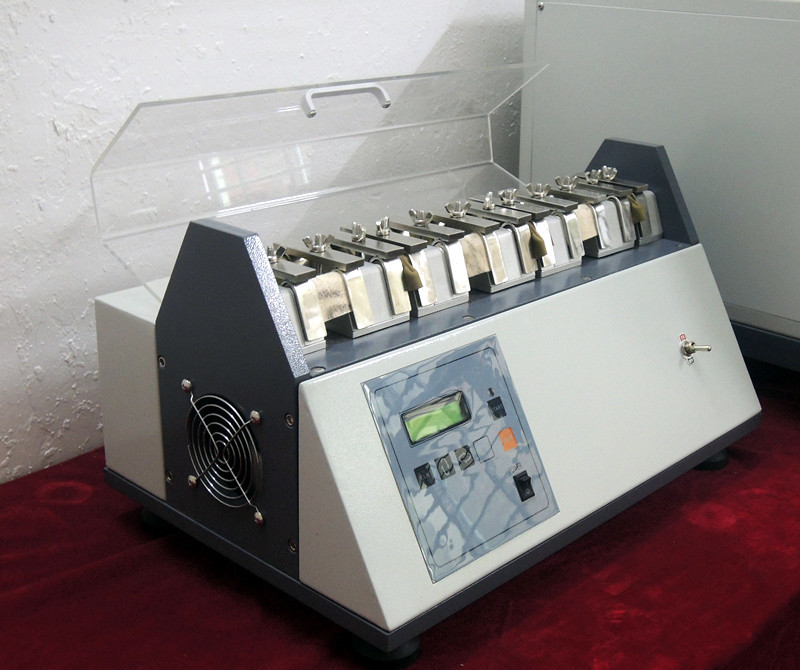

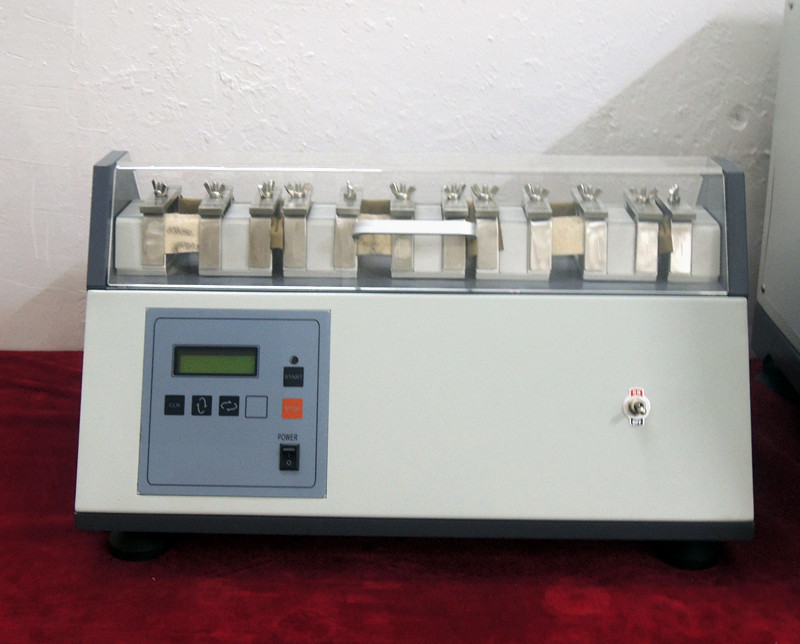

Shoes Vamp Flexing Tester

Application

This machine is suitable for the test method of the folding resistance of uppers.

Principle

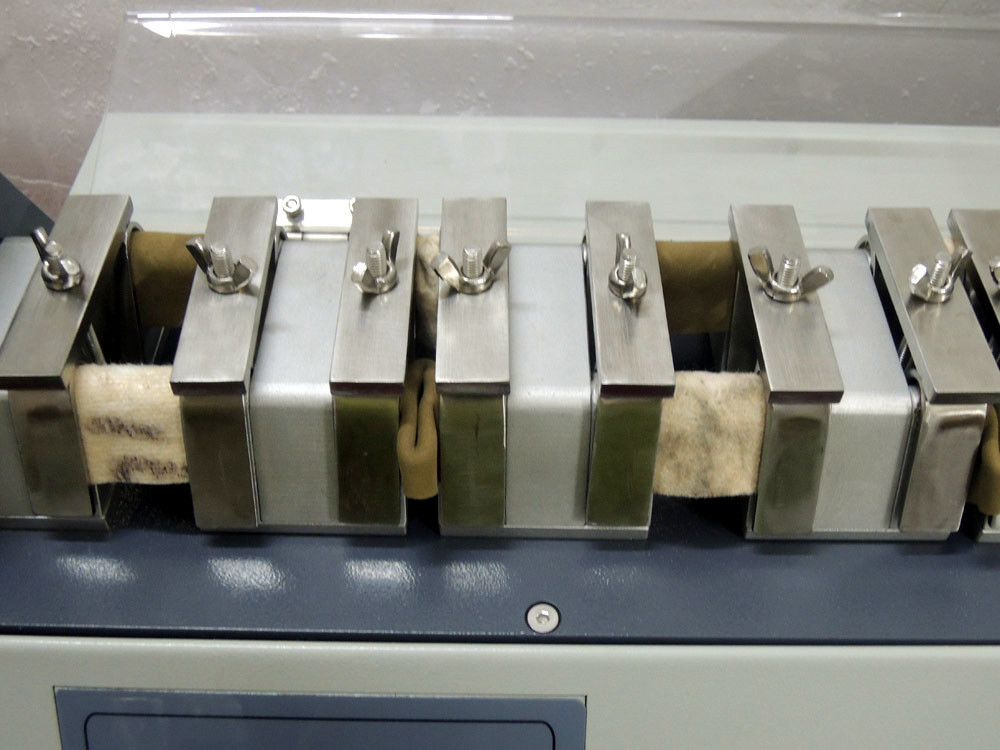

The sample is fixed on the fixture, and the fixture moves relative to each other.When the two fixtures are close, the sample bends. During the test, the fixture moves at a uniform speed, and the sample repeatedly bends. Observe the damage of the sample.

Product information

To primarily intended to determine the propensity for materials to crack or be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature or with dry specimens at sub zero temperatures. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles

Specifications

Clamp	40degree V-shaped
Number of specimen	12pcs
Zigzag frequency	300±30 times/min
Counter	LCD, 0- 999, 999
Test stroke	19mm
Flexing speed	300±30CPM
Sample size	64x64mm
Dimensions	54 cm × 35 cm × 30 cm
Weight	64kg
Power supply	1∮ AC 220V 2.5A

Standards

ISO 4643

ISO 5423 section 5.2

EN ISO 20344-2004 Section 6.5.2

AS/NZS 2210.2 Section 6.5.2

EN ISO 22288

SATRA TM25
