Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-L13
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 15 work days
Payment Terms Western Union, , T/T
Product Details
SKYLINE: Digital Footwear Stiffness Tester Standard: SATRA STM 507 ISO EN20344-2010
Dimension: 67 X 53 X 65cm Speed: (100±10)mm/min
Weight: 60KG Screen: LED Digital Display
Highlight:

abrasion resistance tester

,

shoe wear tester
Product Description

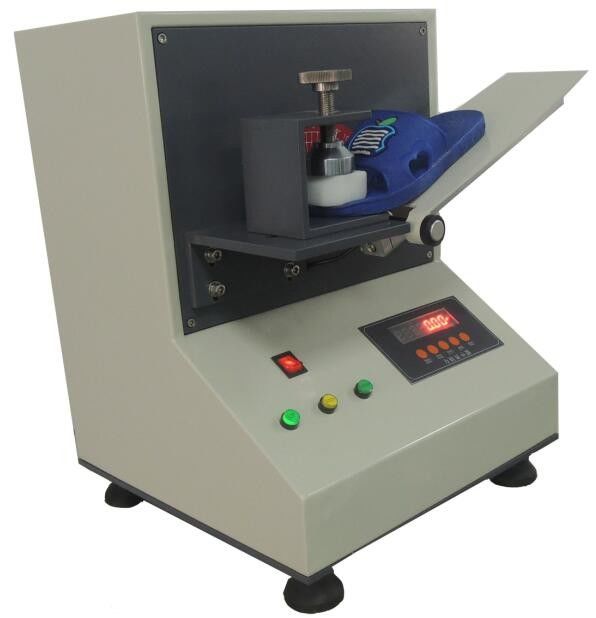

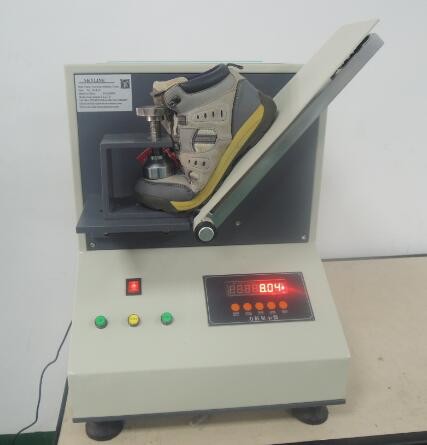

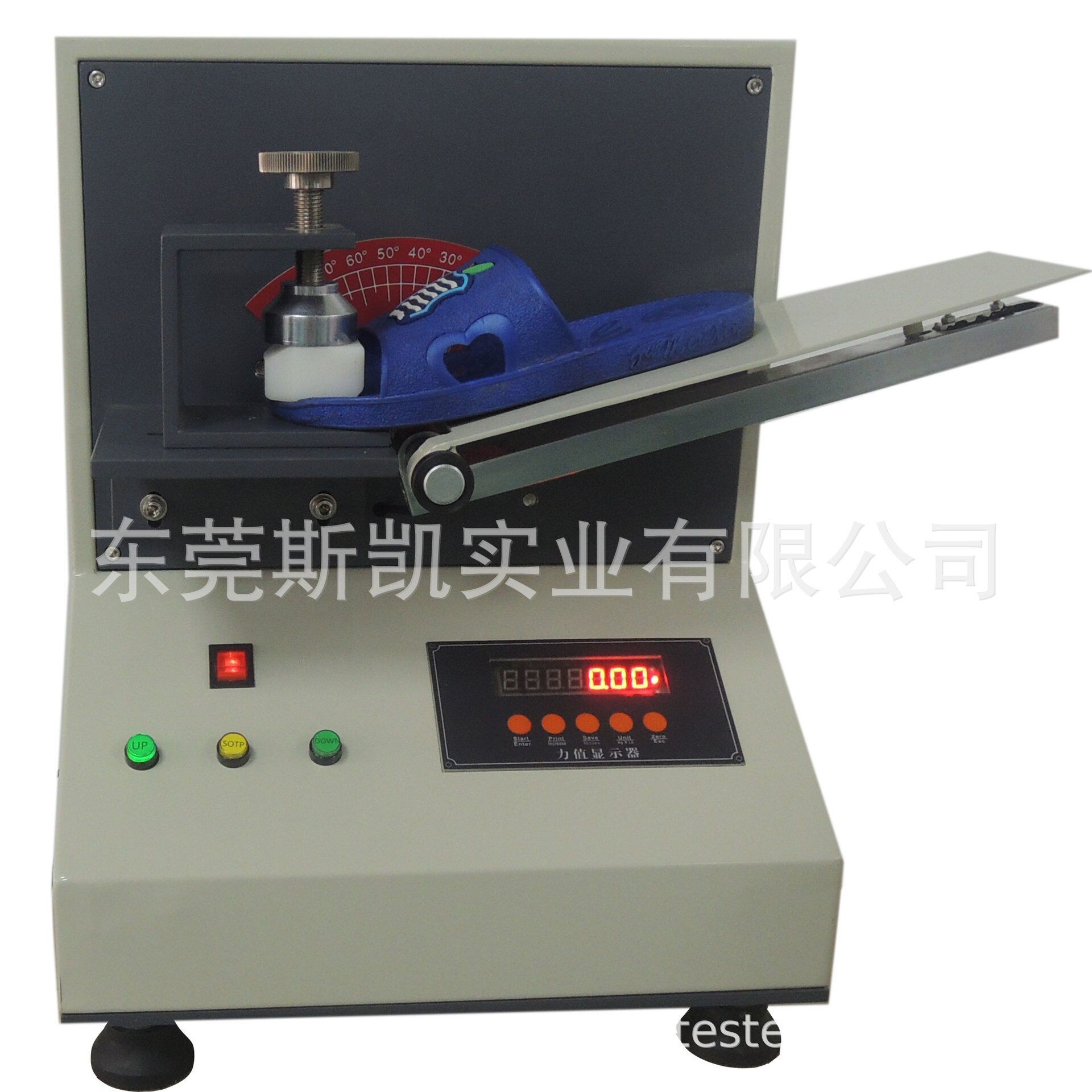

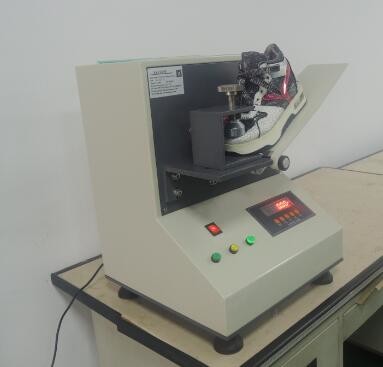

Footwear Testing Equipment Digital Shoes Rigidity Tester (100±10) Mm / Min
Product information
Torsional stiffness is a measure of the resistance to twisting of footwear about its longitudinal axis. The footwear is clamped in the toe area, forces are applied through the heel clamp such that the heel and backpart is twisted first inwards and then outwards up to a maximum angle. The torque required to achieve the twist is used to calculate the torsional stiffness values.

Application
It is the tester used to test stiffness of the outsole.fix the toe part of finished shoe with a solid body by the fixture and increase the force under requested speed ,inspect the bendng angle of the outsole ,then decide if it is necessary to do Bending Test according to the angie.

Technical parameter
 Speed  (100±10)mm/min
 Load  30kg
 Screen  LED digital display
 Power  AC220V
 Dimension(W×D×H)  67*53*65cm
 Weight  60kg



Operation procedure

1.Turn on the power, press the "Down" button, let the moving board back to 0-bit.

2. Install the sample (shoe or shoe sole), and place the zigzag line of the sample on the rotating shaft to compress the toe cap;

3. Press the “clear” button on the display to display 0.00 kg on the display.

4. Press the "Up" button, the table to the specified speed (100±10mm/min) gradually increase the force to 3kg or the active plate bends to 90°, the instrument will automatically stop. At this point, we can look at the angle of the pointer readings, according to which we decide whether it is to do the folding test;

5. When we measure the rigid angle of the shoe, press the "Down" button again to return the movable panel to zero (level). Repeat the above steps for a sample test;

6. After testing, please turn off the power.



Attention matters

1. The instrument must be reliable grounding

2. Regularly in the activities of the instrument to add embellish oil to protect the flexibility of the use of equipment

3. The instrument must be used by special personnel

4. External power supply: AC220v.

5. Power: 100W



Standard

Comply with ISO EN20344-2010 and other standards.
