Professional Digital Fabric Pick Counter For Woven Fabrics / Knitted Fabrics

Name: Professional Digital Fabric Pick Counter For Woven Fabrics / Knitted Fabrics
Brand: SKYLINE
SKU: SL-F26
Rating: 4.8 (163 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-F26

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Carton box

Delivery Time: 7 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                textile lab equipment, textile testing machines


SKYLINE:	Digital Fabric Pick Counter	Display Mode:	Thread/10mm And Thread/inch
Measuring Direction:	Vertical/Horizontal	Standards:	GB/T 4668 ISO 7211.2 ASTM D3775
Magnification Of The Camera:	1×~50×	Specimen:	Woven Fabrics, Knitted Fabrics

SKYLINE:	Digital Fabric Pick Counter
Display Mode:	Thread/10mm And Thread/inch
Measuring Direction:	Vertical/Horizontal
Standards:	GB/T 4668 ISO 7211.2 ASTM D3775
Magnification Of The Camera:	1×~50×
Specimen:	Woven Fabrics, Knitted Fabrics

Product Description

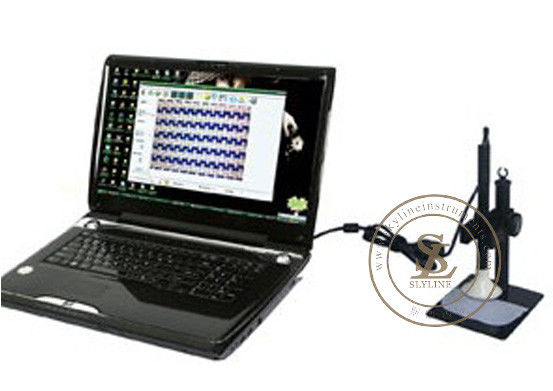

Textile Testing Equipment Professional Digital Fabric Pick Counter for determine thread density of woven fabrics

Application

Digital Fabric Pick Counter is used to determine the thread density of woven fabrics
and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture
and magnify pictures of fabrics, the number of threads or loops on captured pictures can be
counted easily on the screen of the computer by the software

Testing Standards

GB/T 4668 ISO 7211.2 ASTM D3775

Features

1.Two language version software, in Chinese or English according to the requirement of customers;

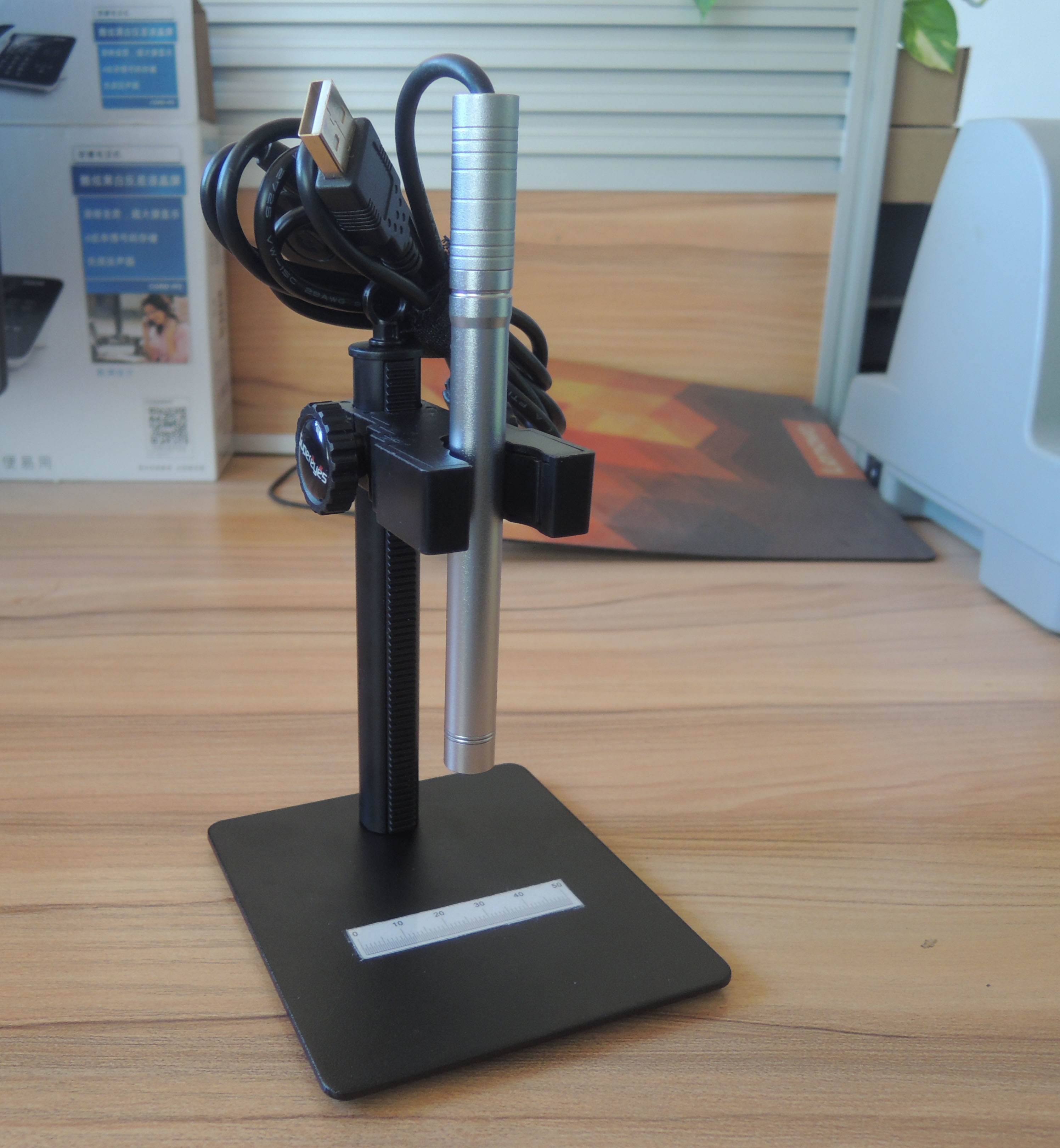

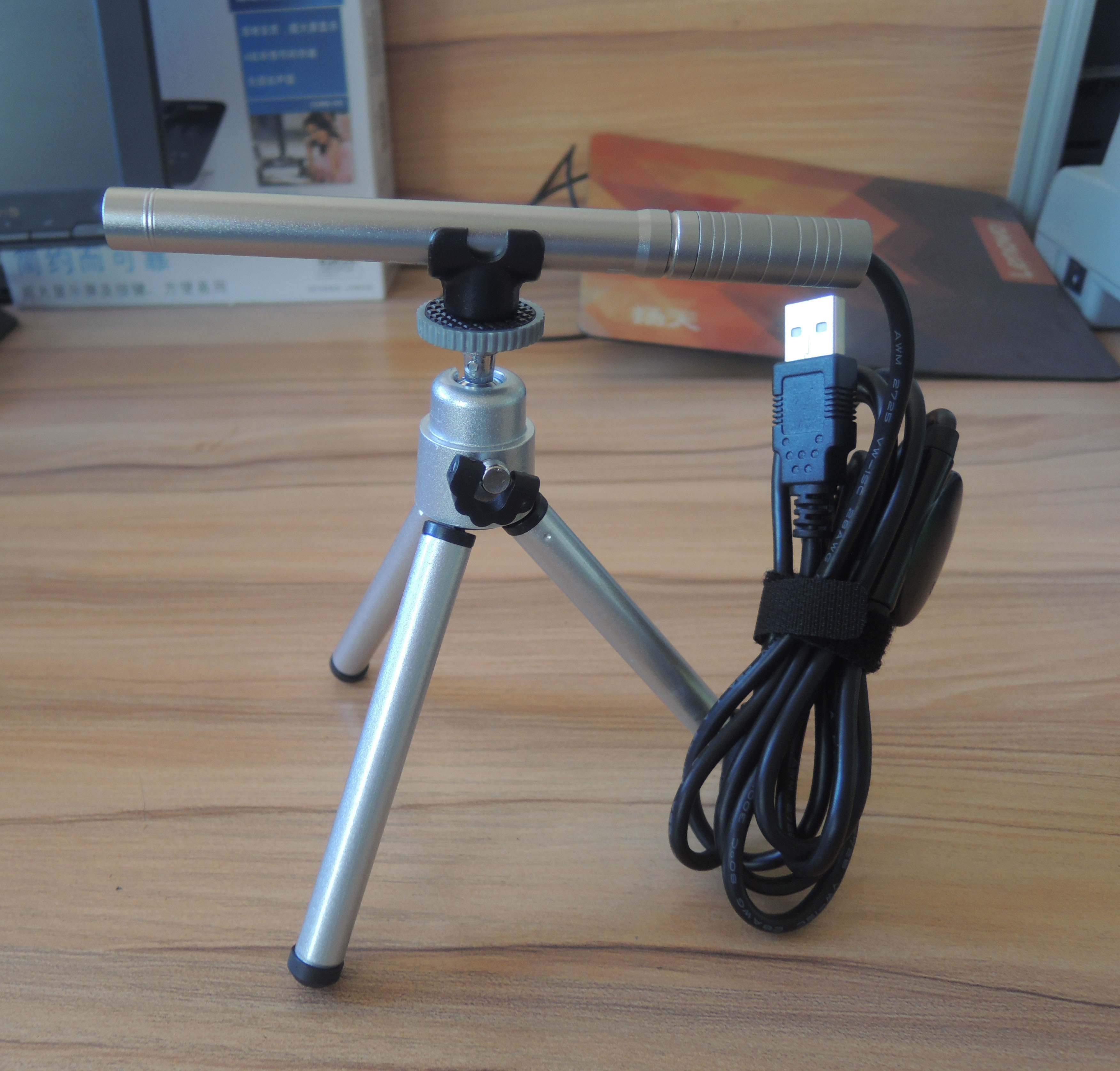

2.The camera is portable and can be connected to the PC by the USB interface;

3.Three measuring methods: “Auto Count”, “Positioning Count” and “Manual Count”; can be applicable for

different colors and patterns fabrics;

4.The measuring software is equipped with the function of memorizing the positioning, so it is convenient for

users to measure the count on different pictures of the same fabric with the same positioning.

5.The color of the measuring lines can be changed according to the color of fabrics in case that error is

caused by the closeness of the color of measuring lines to that of fabrics.

6.The software will automatically display a standard line on the picture to check whether the positioning is

accurate or not after the manual positioning.

Key Specifications

Magnification of the camera	1×~50×
Specimen	Woven fabrics, knitted fabrics
Measuring direction	Vertical/Horizontal
Counting direction	Warp-wise/Weft-wise
Display mode	Thread/10mm and thread/inch
Mode of storing results	In text files
