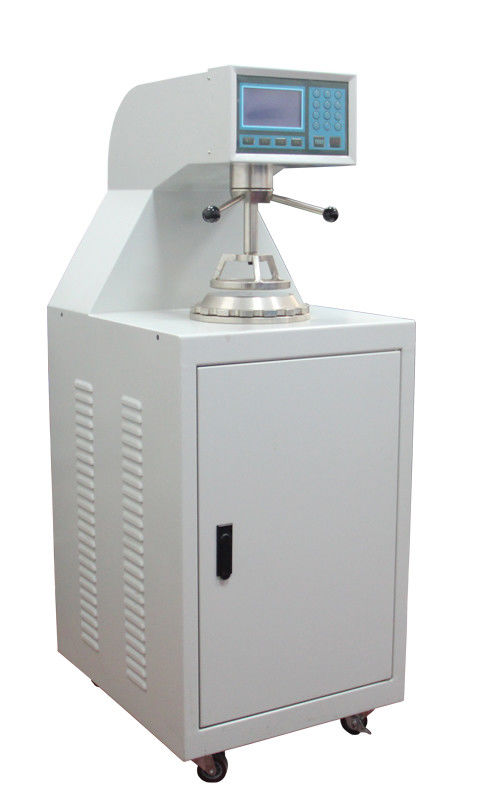

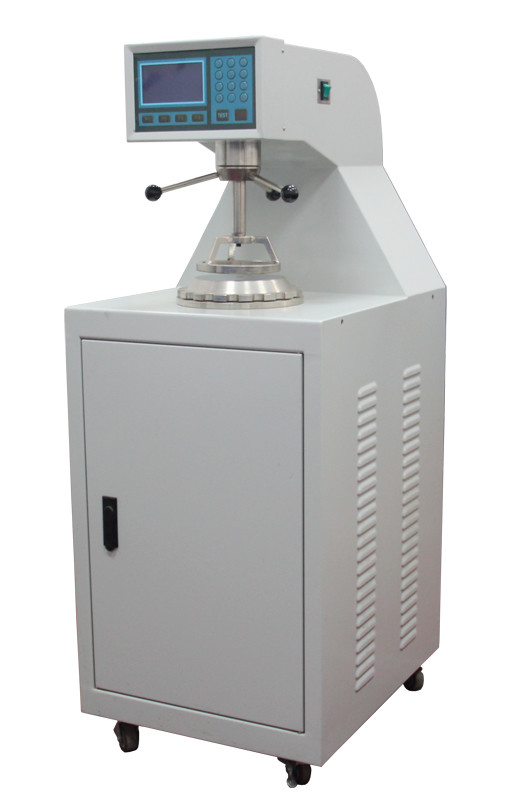

White Textile Testing Equipment Digital Air Permeability Tester For Fabric

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-F26
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 10 unit / month
Product Details
SKYLINE: Digital Fabric Air Permeability Tester Pressure Test Range: 1～3500Pa
Test Errors: ≤±2％ Fabric Thickness: ≤8mm
Brand: SKYLINE Dimension: 820×600×1300mm（L×W×H）
Highlight:

textile testing machines

,

textile testing instruments
Product Description

Textile Testing Equipment Digital Air Permeability Tester



The instrument is used for the air permeability test of special industrial fabrics, general fabrics, knit goods, coated fabrics, non-woven fabrics, and industrial filter paper etc. The instrument performance is compliant with the GB/T5453－97 Fabric Permeability determination and other requirements of national standards for test instruments.

With digit display, digital test parameter setting and a highly accurate sensor adopted instead of traditional water column pressure difference test method, and with a microcomputer for test data computation and test result print in stead of manual conversion, the instrument is easy in operation and has a high accuracy and efficiency.



Specifications:



 Pressure test range 1～3500Pa
 Testable air permeability 2～9999mm/s
 Test errors ≤±2％
 Fabric thickness ≤8mm
 Digital adjustment Dynamic adjustment according to data feedback
 Definite value ring for specimen area(2 Pieces of each specification) 5cm2；20cm2；50cm2；100cm2；
 Definite diameter ring for specimen area(1 Pieces of each specification) Ф50mm(≈19.6cm2)Ф70mm(38.5cm2)



Nozzle: 11 Pieces



Code 00 01 02 03 04 05 06 07 08 09 10
Dia.φ(mm) 0.8 1.2 2 3 4 6 8 10 12 16 20

 Power 1200W
 Weight 65Kg
 External dimensions

820×600×1300mm(L×W×H)
