Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-F33

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                rub resistance tester, shoe wear tester


Standards:	BS3084	Speed:	30/min
Force:	0-10 Kg Lateral Force. 0-5 Kg Longitudinal Force	Angle:	Open: 30degree. Close: 60degree
Dimension:	480 X 370 X600mm	Weight:	65kg

Standards:	BS3084
Speed:	30/min
Force:	0-10 Kg Lateral Force. 0-5 Kg Longitudinal Force
Angle:	Open: 30degree. Close: 60degree
Dimension:	480 X 370 X600mm
Weight:	65kg

Product Description

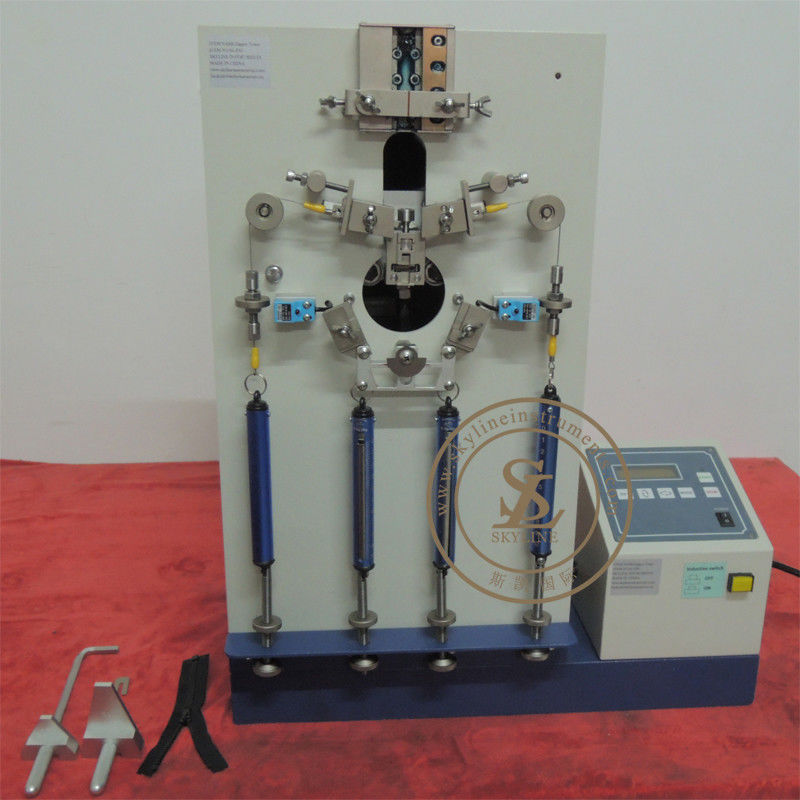

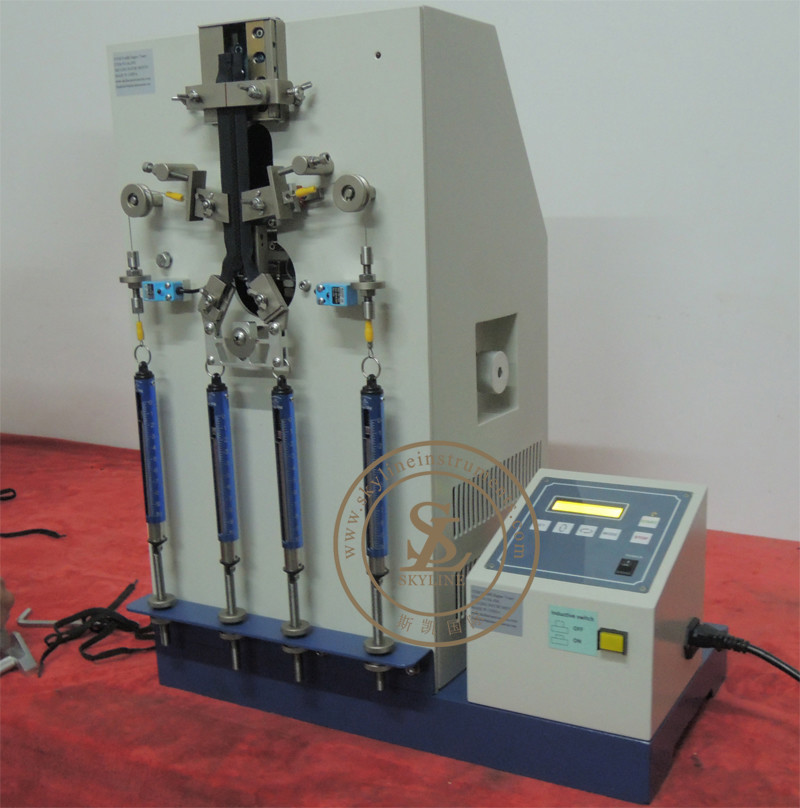

Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester

Product introduction

Zipper Tester, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension.
Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute, integral counter to stop the drive when a pre-selected count has been reached

Specifications

Horizontal fixture width	25mm
Test speed	30cpm
Reciprocating stroke	75mm
Angle	Open: 30degree. Close: 60degree
Counter	LCD, 0-999999
Power Supply	AC 220V 50/60HZ
Dimensions	480 x 370 x600mm
Weight	65kg
Standard		CNS -1083 , BS 3084 , QB/T2171
Standard accessories	1pc		60° Angle gauge
	1pc		30° Angle gauge
	8pcs		Positioning pieces
	1pc		Power line

Zipper Reciprocation Tester.pdf
