Leather Footwear Testing Equipment Steel Hook Stiffness Tester For Shoes Application

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-L13
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Steel Hook Stiffness Tester Length Of Measuring Clip: 60±0.002mm
Front Clamp: D 12mm Load: 200g*4sets
Dimension: 45*45*20cm Standards: BS 5131/4.18, QB/T 1812, QB/T 1813
Rotation Angle Of Lower Jaw Seat: 30degree
Highlight:

abrasion resistance tester

,

rub resistance tester
Product Description

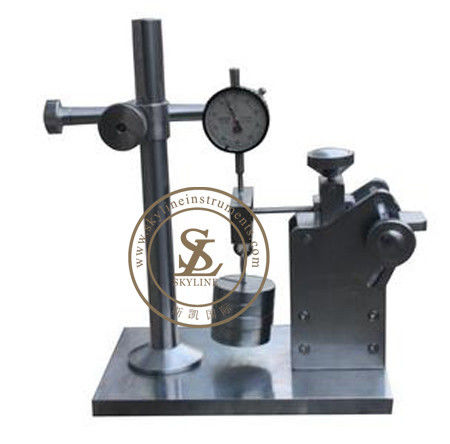

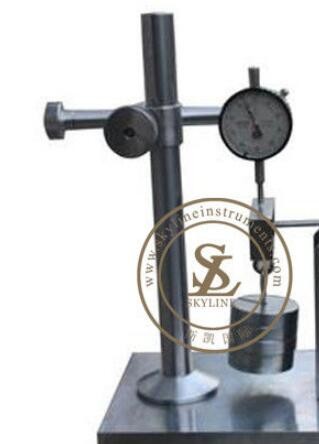

Footwear Tesitng Equipment Steel Hook Stiffness Tester



Use

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the

reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses

added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank.



Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of
steel shanks used for the reinforcement of the waist region of shoes, the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward ,then calculate the flexural rigidity of the shank.


Specification

 Rotation Angle of Lower Jaw Seat  30degree
 Length of Measuring Clip  60±0.02mm
 Depth of Clamp for Front End  12mm
 Dial Gauge  0~10mm(min graduation0.01mm )
 Dead Weight  200+/-1g×4
 Dimension(W×D×H)  37x17x35cm
 Weight  12kg
 Standards

 SATRA TM 58 BS 5131/4.18, QB/T 1812, QB/T 1813





SL-L13 Insole Backpart Stiffness Tester.pdf
