Building Materials Flammability Tester Touch Screen Steel - Structure Fireproof Coating Sample Test Furnace

Name: Building Materials Flammability Tester Touch Screen Steel - Structure Fireproof Coating Sample Test Furnace
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: GJL-2
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: GJL-2

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                horizontal flammability tester, vertical flammability chamber


Standards:	GB 14907-2002 Steel-Structure Fireproof Coating,GB T9978-2008 Fire Resistance Test Method For Building Components, GB T23864-2009 Plugging Material Of Fireproof	Operating Voltage:	AC 380V±10% 50Hz
Air Flow:	0-50 M³/min Measurement Accuracy: ≤ +/-0.5 M³/min	Timing Range:	0-360 Min;Timing Accuracy: < +/-2s
Maximum Of Burning Length Of The Sample:	1600mm

Standards:	GB 14907-2002 Steel-Structure Fireproof Coating,GB T9978-2008 Fire Resistance Test Method For Building Components, GB T23864-2009 Plugging Material Of Fireproof
Operating Voltage:	AC 380V±10% 50Hz
Air Flow:	0-50 M³/min Measurement Accuracy: ≤ +/-0.5 M³/min
Timing Range:	0-360 Min;Timing Accuracy: < +/-2s
Maximum Of Burning Length Of The Sample:	1600mm

Product Description

Steel-Structure Fireproof Coating Sample Test Furnace High Accuracy 3KW

Technical indicators

Operating Voltage	AC 380V +/-10% 50Hz ; Electric power: 3KW
Stove Pressure Measurement Range	0-100Pa Measurement Accuracy: ≤ +/-3Pa
Air Flow	0-50 m³/min Measurement Accuracy: ≤ +/-0.5 m³/min
Burning Airflow	Propane ,Liquefied gas
Gas Flow	0-100 L/min;Measurement Accuracy:2.5 level
Tank Capacity	50 kg*2
Test Temperature	Program warming:60min room temperature-925℃;120min room temperature-1050℃;180min room temperature-1115℃;240min room temperature-1150℃;300min room temperature-1180℃; 360min room temperature-1210℃;
Equipment Precision	a.furnace temperature: +/-15℃;b.internal specimen temperature: +/-10℃; c.backfire specimen temperature: +/-4℃
Temperature Sensor	a.armored platinum rhodium platinum value S thermocouple accuracy class:II level;b.armored nickel-chromium nickel-silicon value K thermocouple accuracy class:II level
Timing Range	0-360 min;Timing Accuracy: < +/-2s
Maximum of Burning Length of the Sample	1600mm
Instrument Dimensions	Test plate bracket 670mm670mm1100mm;Control box 800mm500mm500mm

Features
1.PLC+NA view professional software, touch screen control, easy operation
2. The whole process of testing is fully automated
3. Temperature errors are lower than the national standard

Design Standards
GB14907-2002 Steel-Structure Fireproof Coating
GB T9978-2008 Fire Resistance Test Method for Building Components
GB T23864-2009 Plugging Material of Fireproof

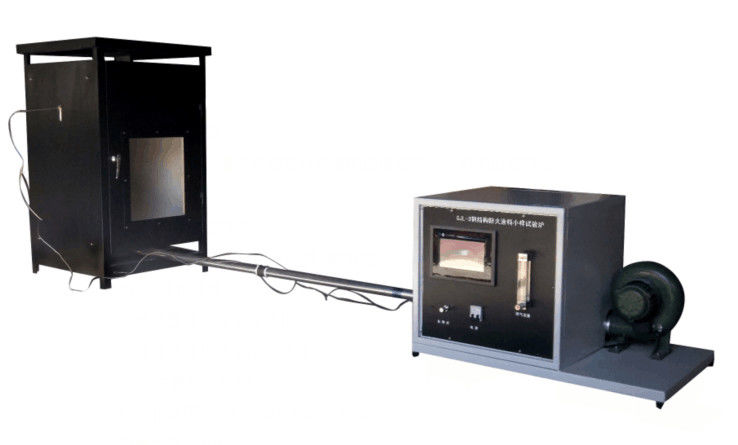

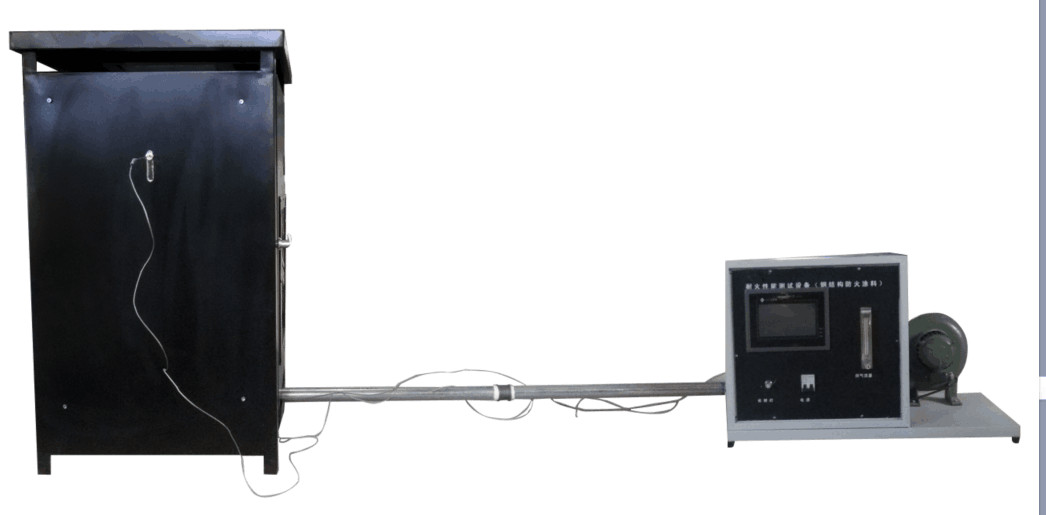

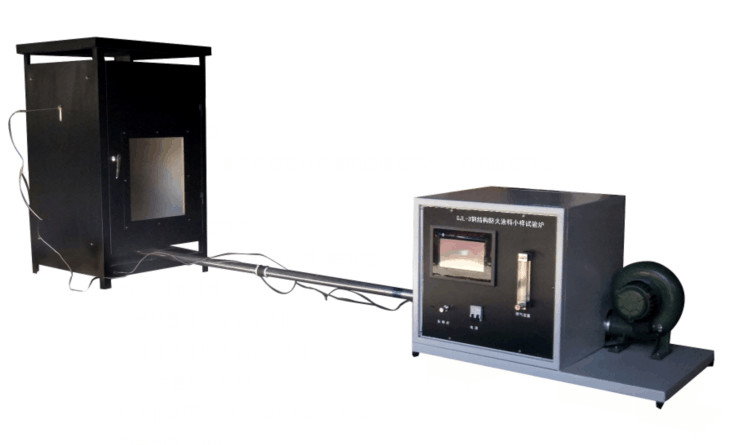

Building Materials Flammability Tester Touch Screen Steel - Structure Fireproof Coating Sample Test Furnace 0
