0-180d Lab Testing Equipment Electric Steel Shank Tester SKYLINE

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-L11
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 5 pcs / month
Product Details
SKYLINE: Electric Steel Shank Tester Bending Angle: 0-180°
Center Column: ∮10mm Weight: About 25kg.
Power Supply: AC220V 50HZ
Highlight:

0d Lab Testing Equipment

,

180d Lab Testing Equipment

,

SKYLINE steel shank tester
Product Description

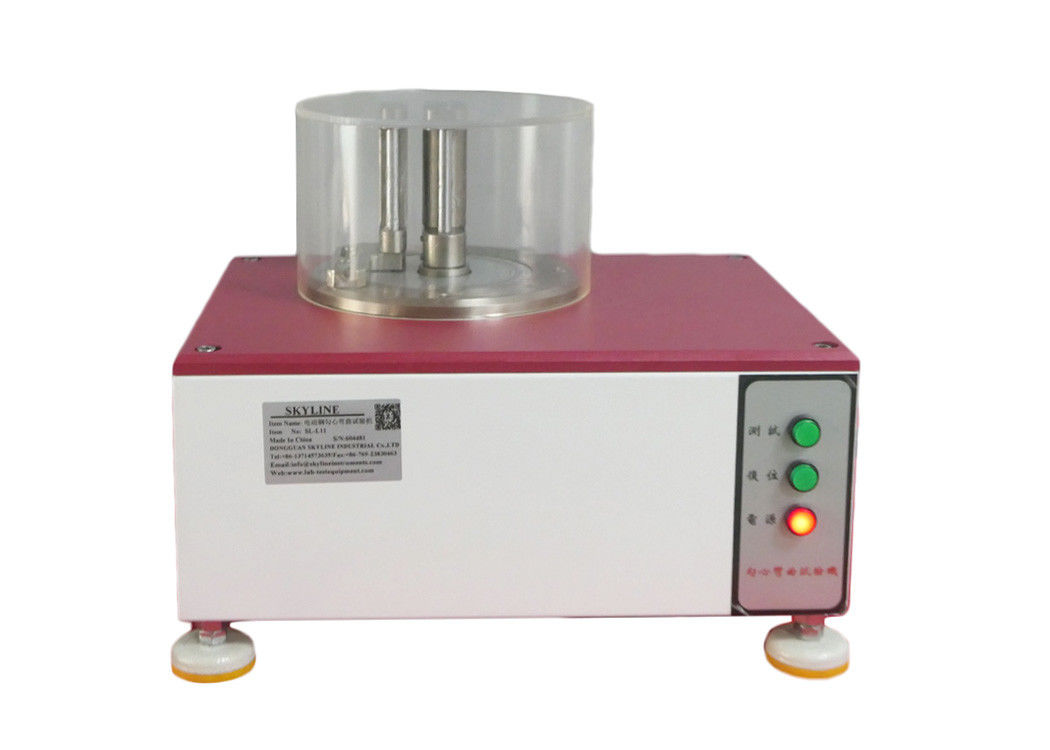

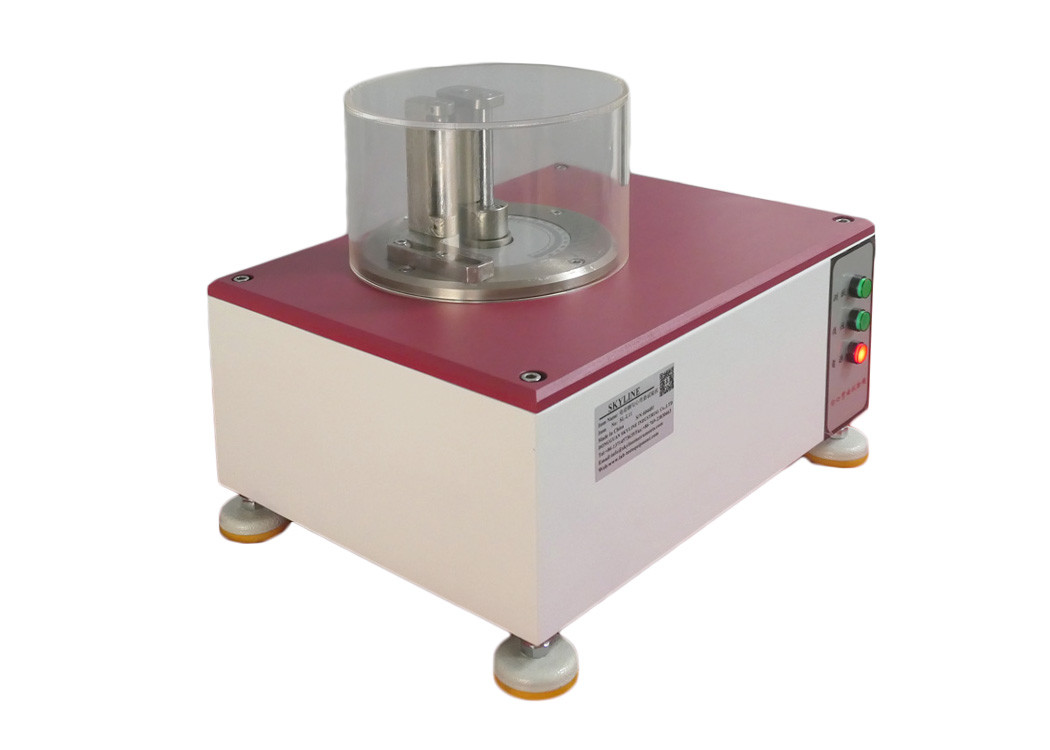

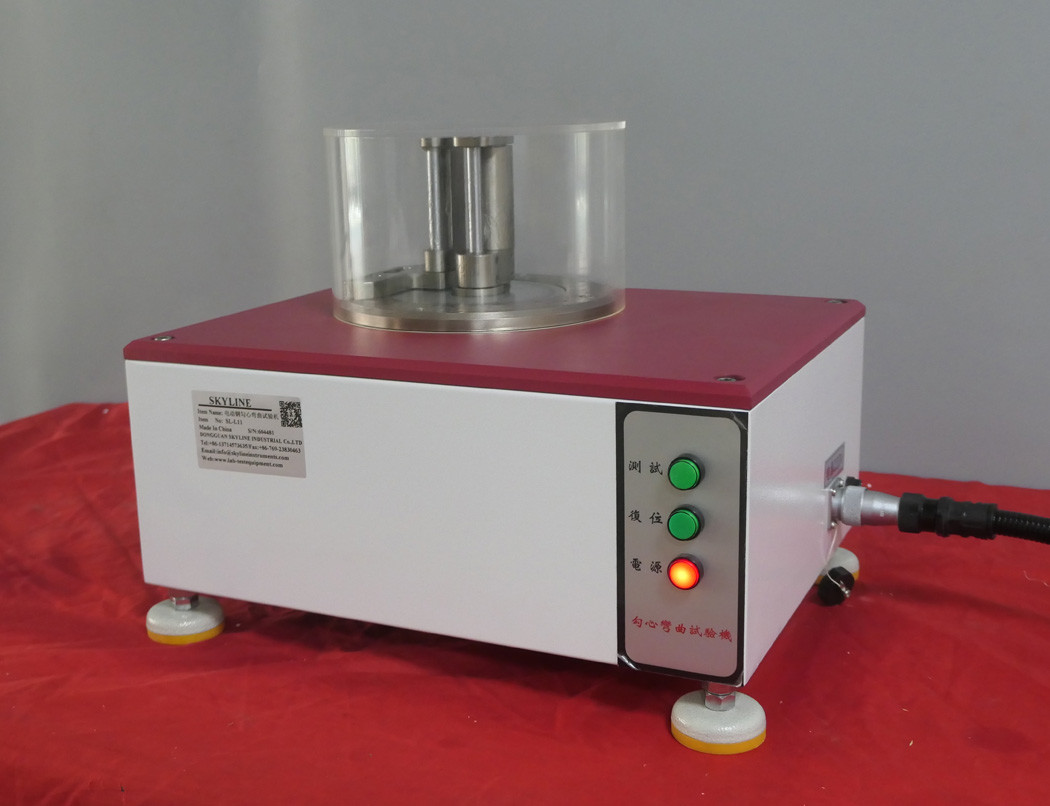

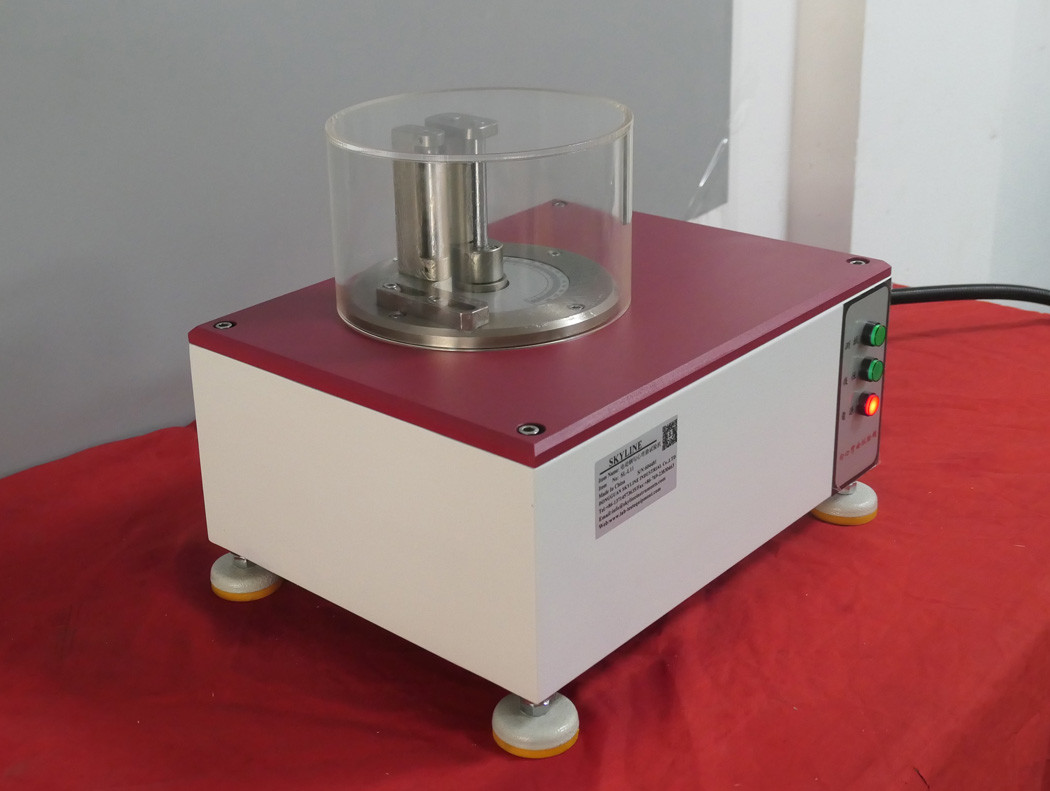

Electric Steel Shank Tester



Product introduction

Meet the standards: GB 28011, QB/T 1812, QB/T 1813, BS 5131

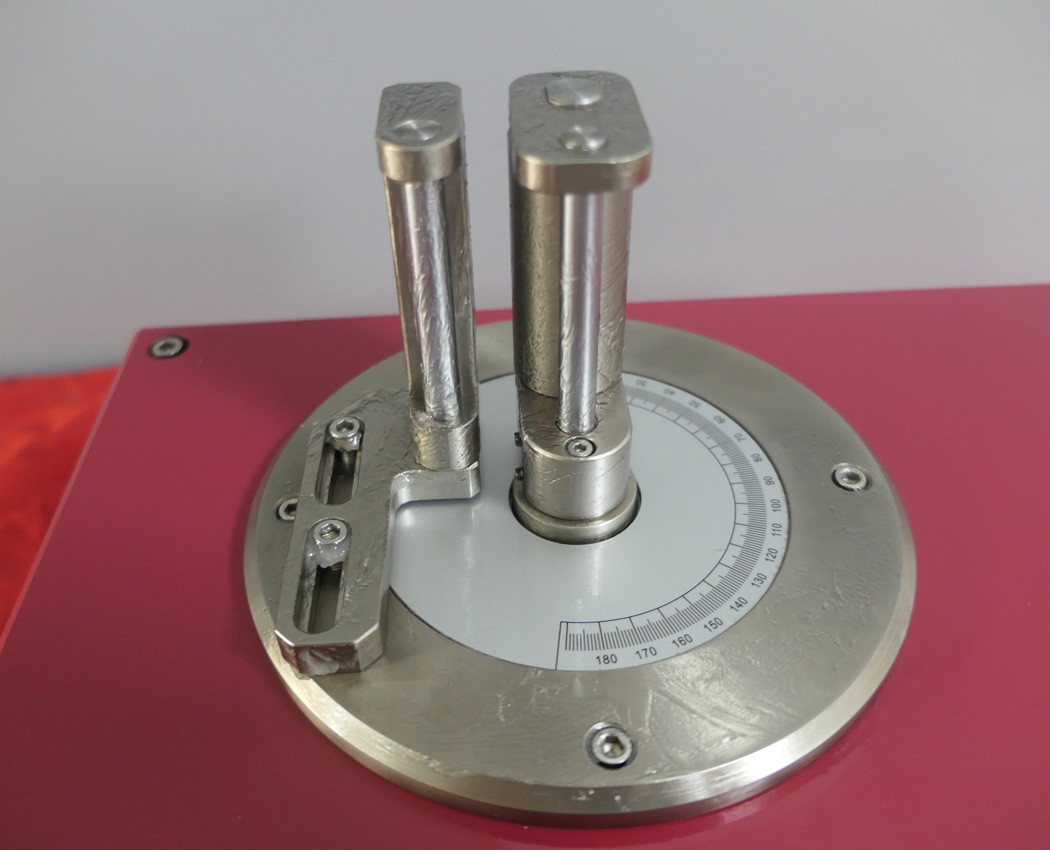

This machine is mainly used to test the bending resistance of the steel shank. Insert the shank into the fixture and make it rotate 180° around the central column with a diameter of ∮10mm. Visually inspect the condition of small cracks on the surface and whether it is broken to determine its quality.
2. Technical parameters:
1. Bending angle: 0-180°
2. Center column: ∮10mm
3. Dimensions (length × width × height): 400x300x290mm
4. Weight: about 25kg.
5. Power supply: AC220V 50HZ
