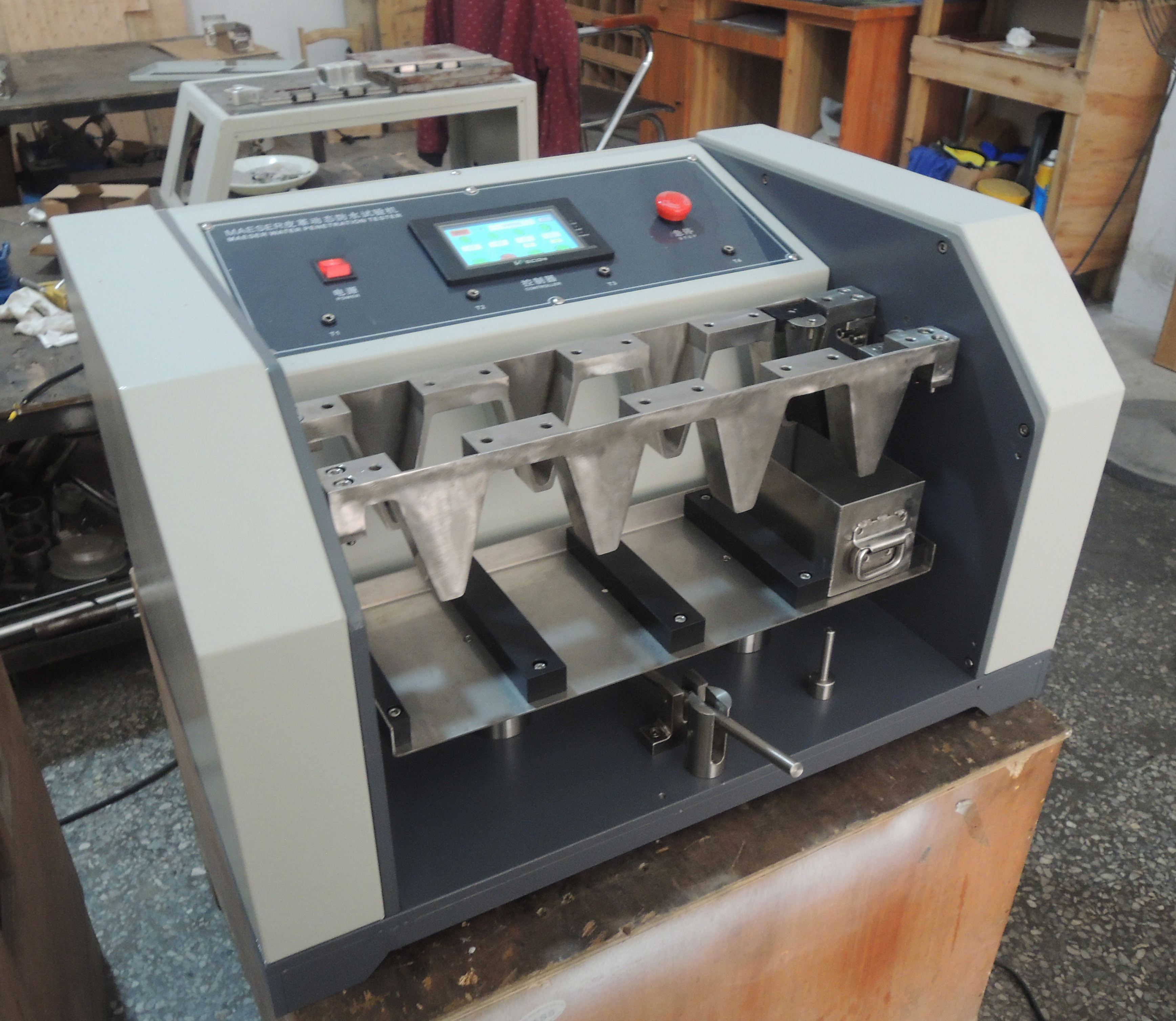

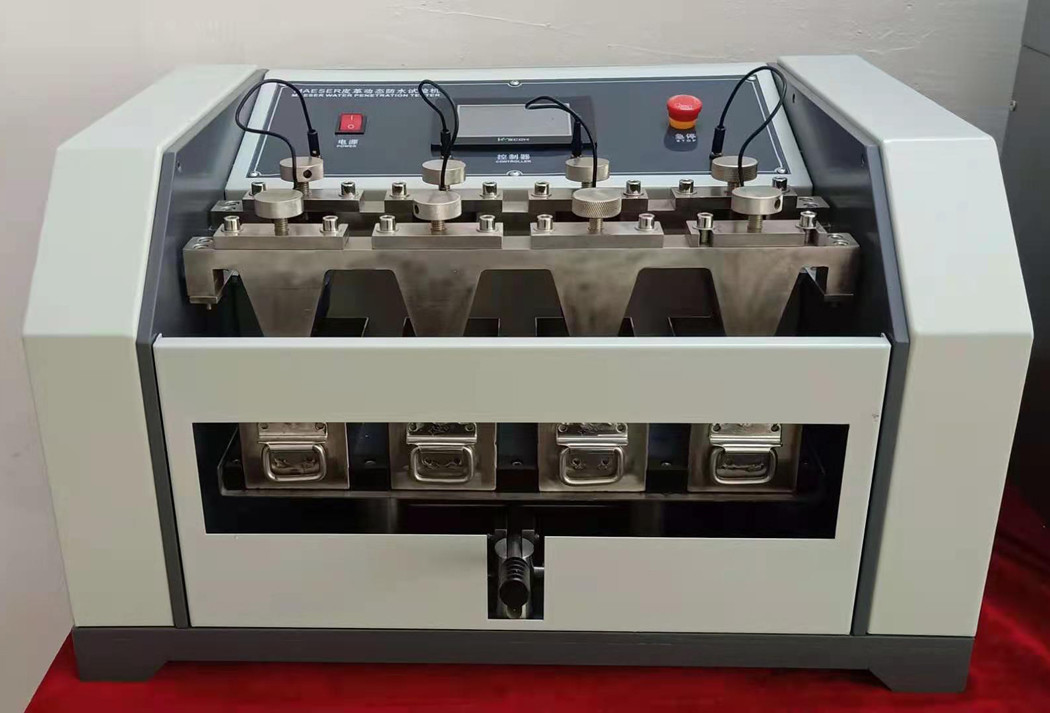

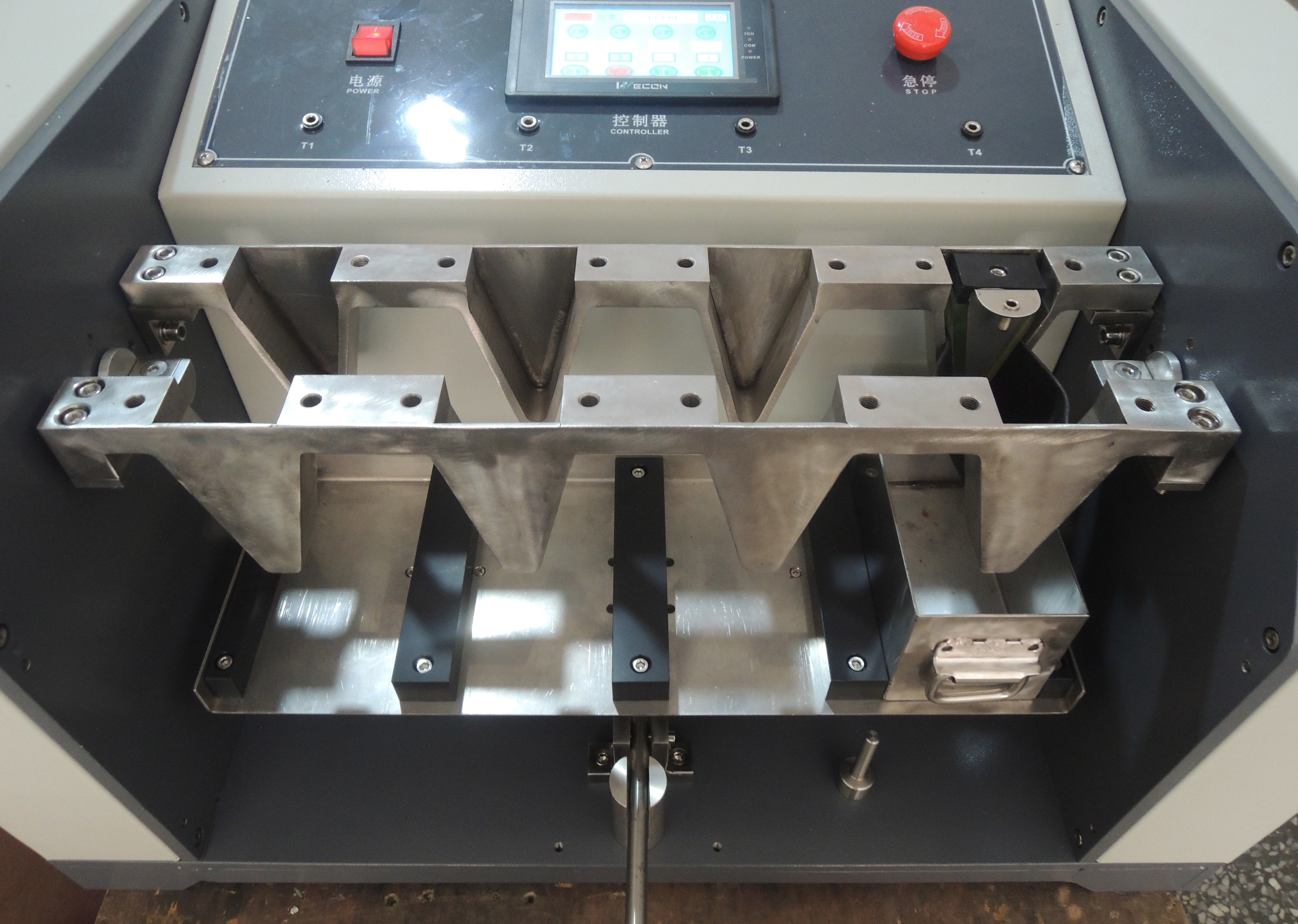

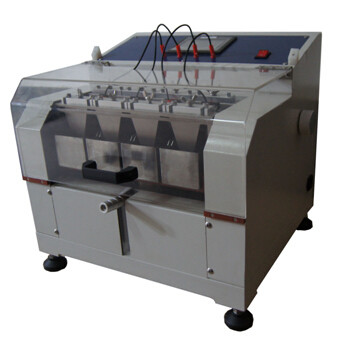

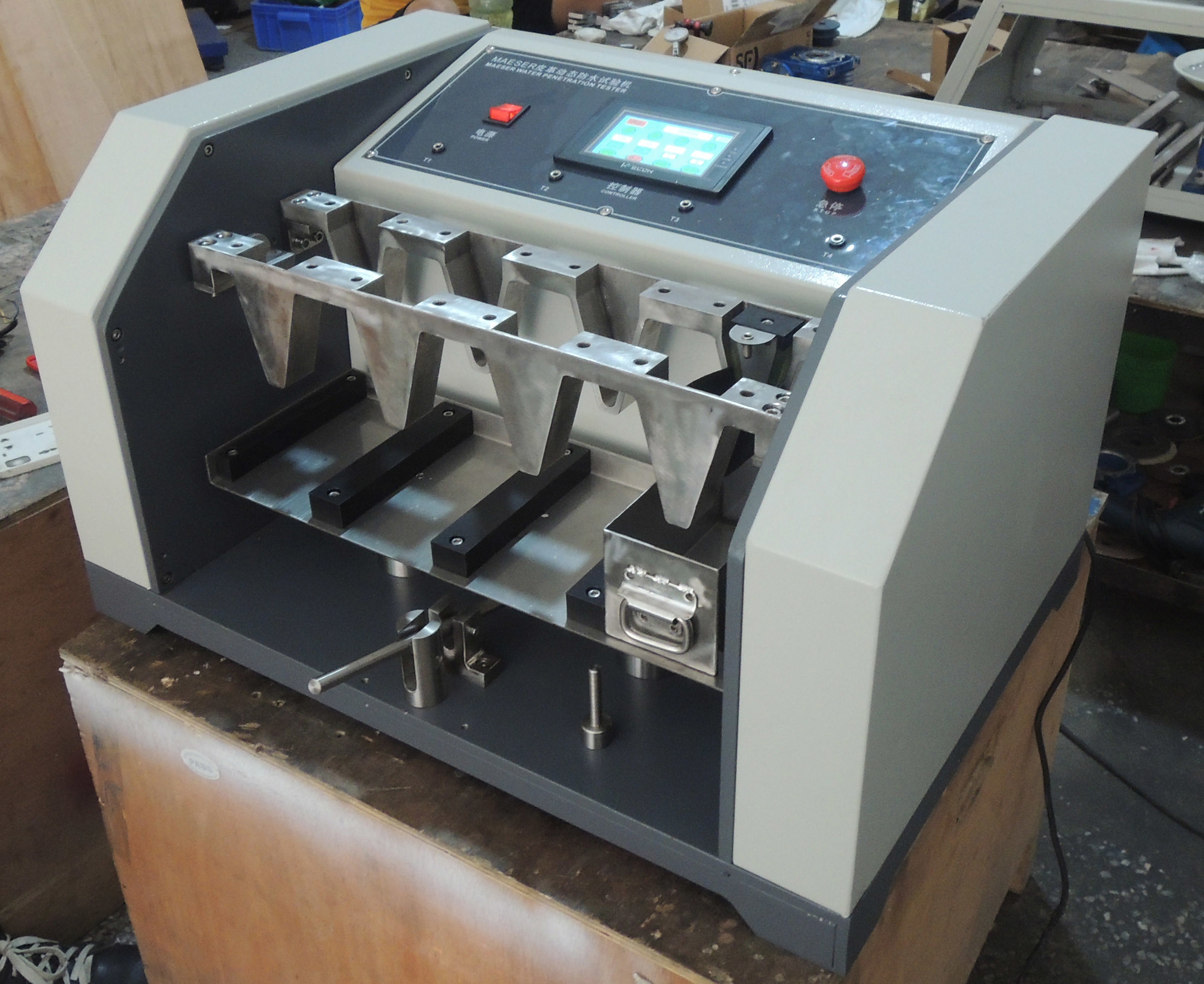

Leather Testing Equipment SATRA TM34 Flexing Water Penetration Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-C72
Minimum Order Quantity 1 unit
Packaging Details Plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: MAESER Leather Dynamic Water Proof Tester Load: 135 ± 5gs
Motor: 90W Weight: 55kg
Dimensions: 49x45 X45cm( L X W X H ) Standards: ASTM-D2099 SATRA PM34
Highlight:

leather testing machine

,

rubber testing equipment
Product Description

SATRA PM34 Leather Testing Equipment Leather Dynamic Water Proof Tester



Product information

It is used to test shoe upper material of leather, synthetic leather, cloth,etc. anainst water
penetration, which is taken the specimen immersing in water and flexing by a constant speed

waterproof tester for leather products is used standard steel ball placed in the interrior ofleather, and in this way to do water-proof and twist testing. Testing before need to set the number of reverse and automatically shut down when the number arrive, the machine is equipped with a sensor, when the water infiltrate into the interior of leather, it will automatically stop counting time, and display the time of twist.



Specifications

 Specimen Number  4 groups
 Specimen Size  4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm)
 Ball total weight (Load)  135 ± 5gs
 Ball size  1 / 8 "× 3mm
 Testing displacement  30 ± 1 °
 Testing speed  90°±5cpm
 Counter  LCD display, 0~999,999
 Motor  90W
 Dimension(L×W×H)  49×45×45cm3
 Weight  55kg(appr)
 Power supply  AC220V,3A
