Building Materials Flammability Tester Touch Screen Control Flammability Testing Equipment Fireproof Coating

Name: Building Materials Flammability Tester Touch Screen Control Flammability Testing Equipment Fireproof Coating
Brand: SKYLINE
SKU: DBF-3
Rating: 5 (199 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: DBF-3

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                lab testing equipment, vertical flammability chamber


Environmental Temperature:	-5℃-30℃	Air Volume Of Blower:	(1-5) M³/min
Voltage And Power:	220V±10%. 50Hz,300W	Gas Source:	Liquefied Petroleum Gas
Relative Humidity:	≤85%	Timer Error:	≤ 1s/h

Environmental Temperature:	-5℃-30℃
Air Volume Of Blower:	(1-5) M³/min
Voltage And Power:	220V±10%. 50Hz,300W
Gas Source:	Liquefied Petroleum Gas
Relative Humidity:	≤85%
Timer Error:	≤ 1s/h

Product Description

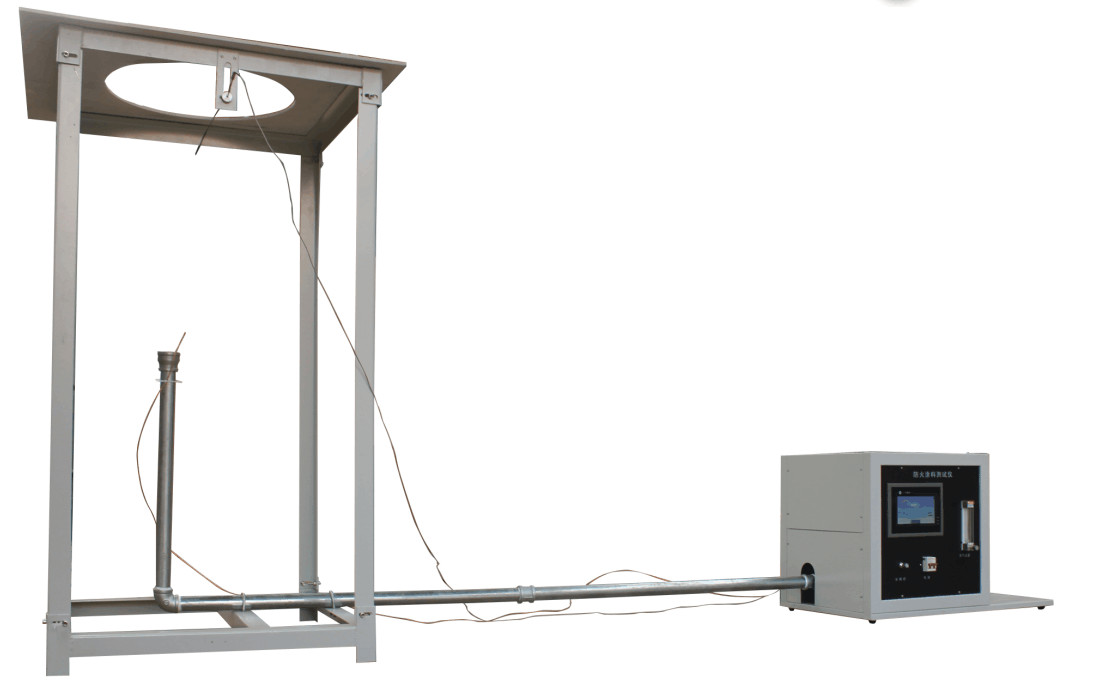

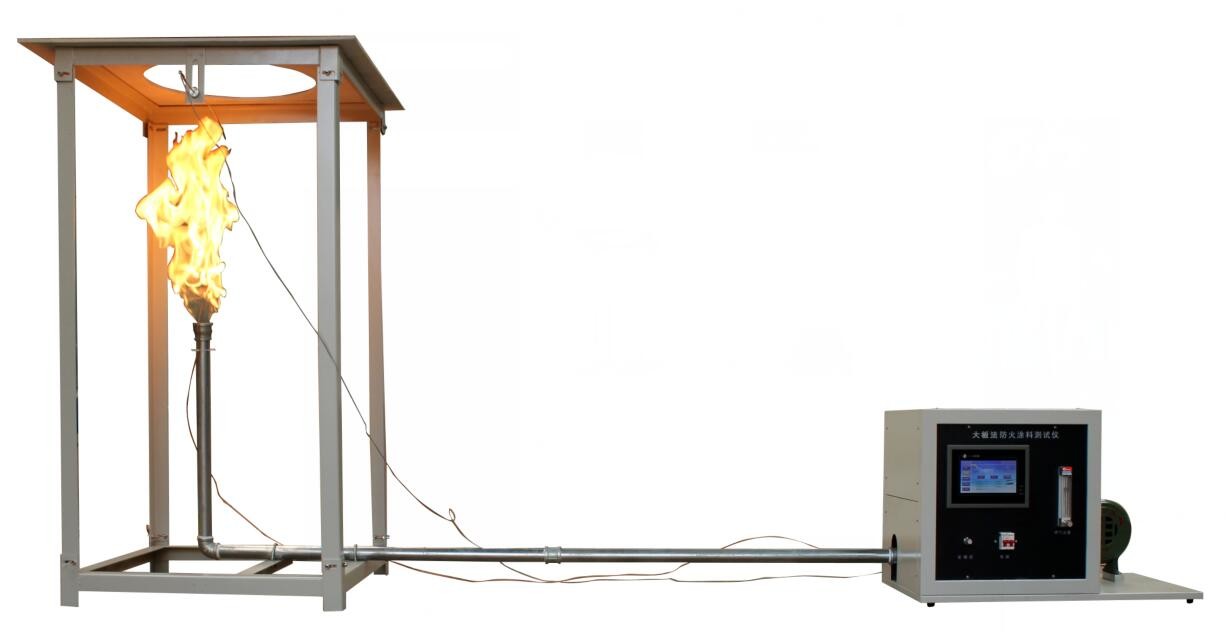

Touch Screen Control Flammability Testing Equipment Fireproof Coating(Method of large plate)

Technical indicators

1.PLC+NA view professional software, touch screen control, easy operation

2. Backfire five-way thermocouple temperature,alarm when it comes to 220℃

3. Specimen Size: 900mm*900mm*5mm +0.2mm Plywood of five layers of first level

4. Time of Automatic Controlling——Temperature Rise and Record

5.Alarm when temperature of time back fire comes 220℃

Parameters

Voltage and Power	220V±10%. 50Hz,300W
Working Environment	indoor , no forced ventilation
Air Volume of Blower	(1-5) m³/min
Armored Thermocouple	Outer diameter ≤3mm, Wire diameter 0.5mm , Accuracy ≥II level, Range 1300℃
Timer Error	≤ 1s/h
Environmental Temperature	-5℃-30℃
Relative Humidity	≤85%
Gas Source	Liquefied petroleum gas
Test plate bracket	760mm760mm1500mm
Control box	800mm500mm500mm

Design standards

GB12441-2005 <Grading and Testing Method of Function of Fireproof Of Facing Fire-retardant Coating——Method of large plate>

Building Materials Flammability Tester Touch Screen Control Flammability Testing Equipment Fireproof Coating 0

What is fireproof coating?

Exposure to the heat of a fire triggers a reaction, causing the intumescent paint to expand to up to 50 times its thickness and form a solid foam-like char. This char insulates the steel from the heat, so keeping it below the temperatures that would compromise it. Intumescent paint is the main coating used for steel.
