Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-L06
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 15 work days
Payment Terms Western Union, , T/T
Product Details
SKYLINE: Ross Flexing Tester Counter: LCD, 0~99,999,999
Volume: 58 Cm × 60 Cm × 32 Cm Weight: 58kg
Flexing Speed: 100±5cpm Standards: ASTM-D1052 SATRA TM60 ISO-5423
Highlight:

abrasion resistance tester

,

rub resistance tester
Product Description

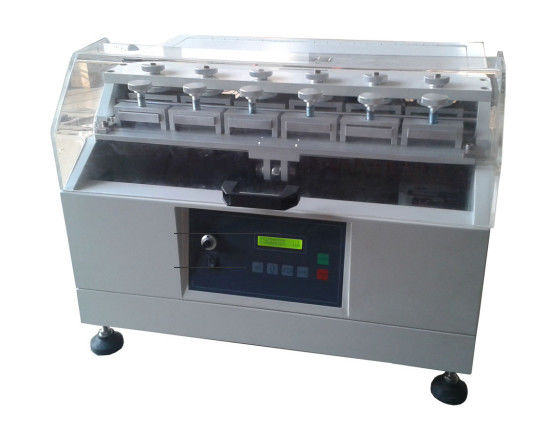

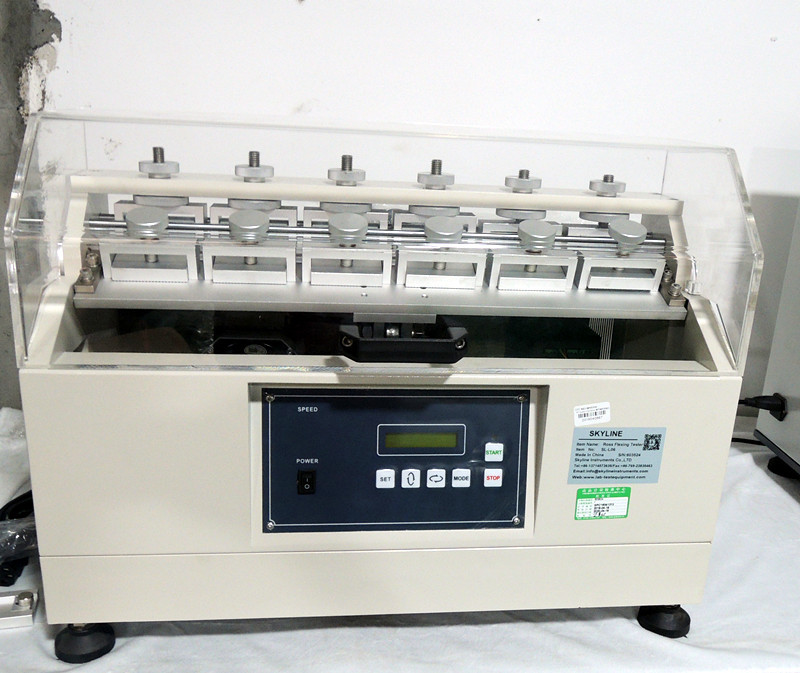

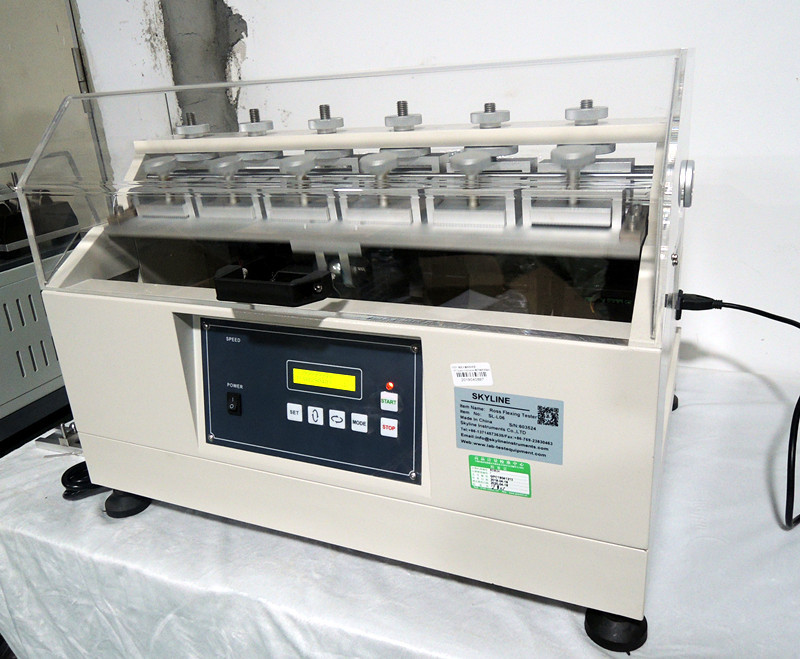

Ross Flexing Tester



Application

Shoes Ross Flexing Tester is used for flexing test at a 90°angle of rubber products, sole materials, PU, etc. by subjecting specifically prepared specimens to repeated bend flexing. The damage and cracking condition is then observed.



Principle

The sample is repeatedly subjected to deflection at a certain angle and a certain degree of frequency to examine the degree of damage and cracking.



Features

1. Be able to test 0~12pcs specimens;

2. Counter with LCD display;

3. 90°bending angle.



Key specification

 Specimen No.  6 groups (12pcs)
 Flexing angle  90°
 Flexing speed  60~100c.p.m (adjustable)
 Counter  LCD, 0~999,999
 Dimensions  58 cm × 60 cm × 32 cm
 Weight  approx. 58kg
 Power supply  220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required)



Ross Flexing Tester.pdf

Company Profile.pdf



Testing standards
ASTM-D1052 SATRA TM60 ISO-5423



Please review video of the Ross Flexing Tester operation as below link:

https://youtu.be/hdrDmVXM57w

Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester

What is Ross Flex Test?

Ross Flex Tester is designed to determine the resistance of vulcanized or synthetic elastomers to cut growth. The system does so under continuously bend flexing in 90°.
