OD50mm L211mm Electronic Testing Equipment SKYLINE Spring Impact Hammer

Place of Origin China
Brand Name SKYLINE
Certification Calibration Certificate
Model Number SL-SE02U
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 5 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Universal Spring Impact Test Hammer Standards: IEC60068-2-75 IEC884 And UL1244
Weight: 1250g Length: 211mm
Hammer Radius: 10mm OD: 50mm
Highlight:

50mm Electronic Testing Equipment

,

211mm Electronic Testing Equipment

,

SKYLINE spring impact hammer
Product Description

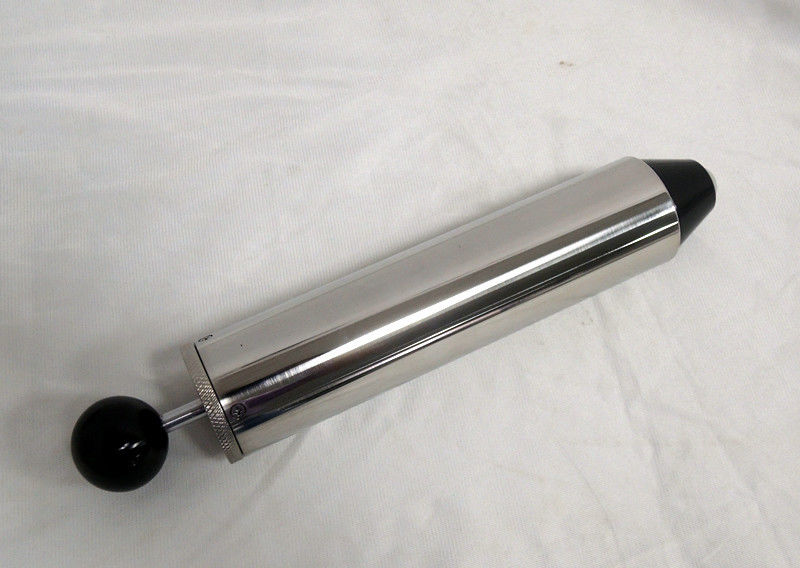

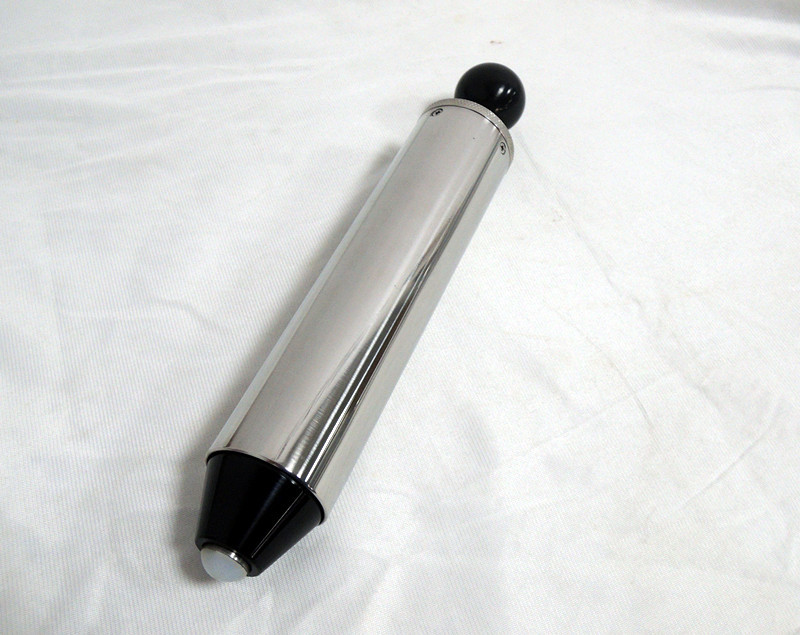

Universal Spring Impact Test Hammer for House Hold Products



Introductions

This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



Standards

It is strictly designed according to IEC60068-2-75, but not limited to these standards.



Applications

This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



After applying the impact with the hammer, the products is examined with accessibility probes to determine access to shock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.



 Type
 Impact Energy(J)
 Tolerance Mistake
 Spring Impact Energy
 0.14
 0.014
 Spring Impact Energy
 0.20
 0.02
 Spring Impact Energy
 0.35
 0.03
 Spring Impact Energy
 0.50
 0.04
 Spring Impact Energy
 0.70
 0.05
 Spring Impact Energy
 1.00
 0.05
 Spring Impact Energy
 2.00
 0.10
 Universal Energy
 0.14
 1.00


Technical parameters

 length  211mm
 weight  1250g
 OD  50 mm
 Hammer Weight  60g
 Hammer radius  10mm

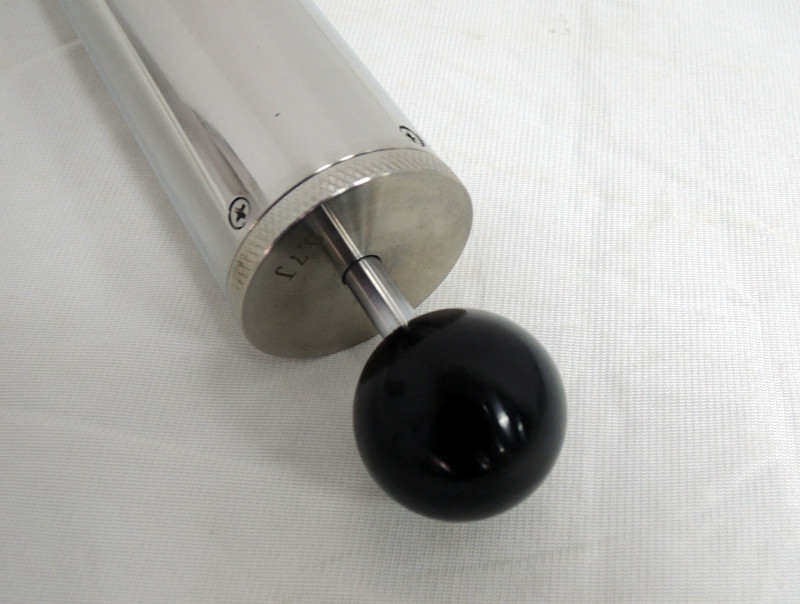

 Impact Components  including the hit ball handle the hammer,weight 250g, hammer head is made from white polyethylene imine first
 The release force of impact  <10N



What is spring hammer test?

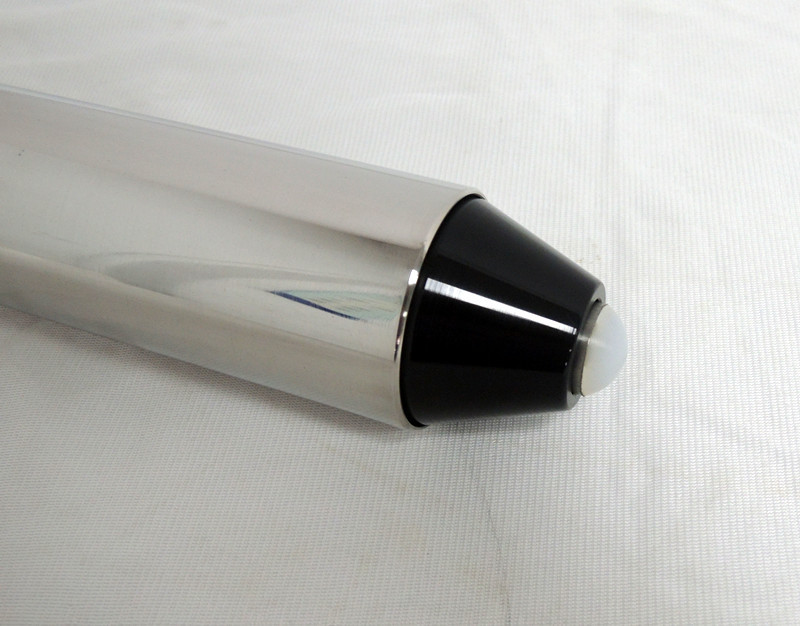

A compressed spring accelerates a striking element to hit the sample undergoing test. The spring is released from a locking mechanism by pressing the cone-shaped end of the impact hammer against the product under test.
