Footwear Testing Equipment Anti-Static Tester
Instrument introduction

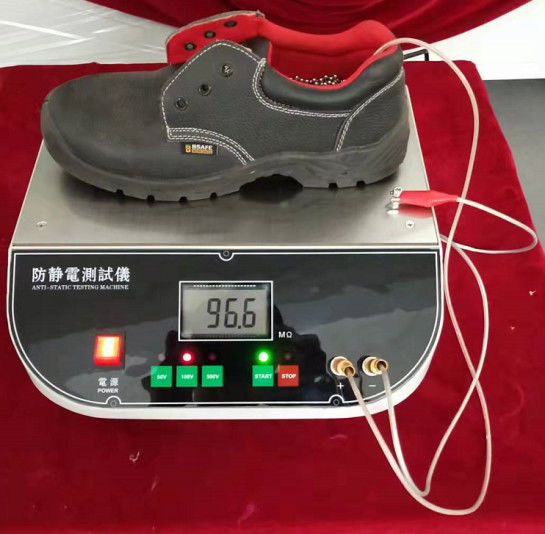

After a certain voltage passes through a closed circuit composed of a sample, steel balls and stainless steel plates, the resistance is measured, and whether the value falls within the antistatic insulation resistance range is used to evaluate whether the test sample has antistatic performance.
Reference standard
Comply with: GB/T20991,GB/T21148,ISO 20344,CAN/CSA-Z195
Technical specifications:
| The voltage range |
DC50V, DC100V, DC500V. |
| Test scope |
0.001-20000M ohm |
| Test accuracy |
2%, 5% and 10% vary with the test range |
| Operating environment |
Temperature (0-40)℃, humidity (20-90)%R.H |
| Volume |
(35x34x14)cm |
| Weight |
About 11kg |
| Electricity source |
AC220V,50HZ |
Accessory part
1. 4kg of 5mm stainless steel beads and 1 power cord.
2. One copy of instruction and one copy of warranty.
Note:
EN, GB: (0.1-1000) m ohm is antistatic, and the voltage is DC100V.
Astm: (1-1000) anti-static in the range of m ohms, and the voltage is DC50V.
CsA: (1-100) anti-static in the megaohm range, and the voltage is DC500V.
