CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-L63
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 15 work days
Payment Terms Western Union, , T/T
Product Details
SKYLINE: De Mattia Flex Tester Standard: BS 3424 P9，ISO 7854
Dimension: 36x35x50cm Test Speed: 5.0Hz±0.2Hz（300±12r/min）
Fixture Width: 20mm Test Track: Vertical Reciprocating Motion
Highlight:

abrasion resistance tester

,

shoe wear tester
Product Description

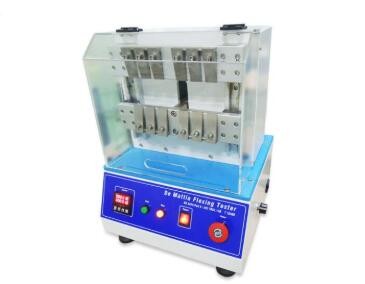

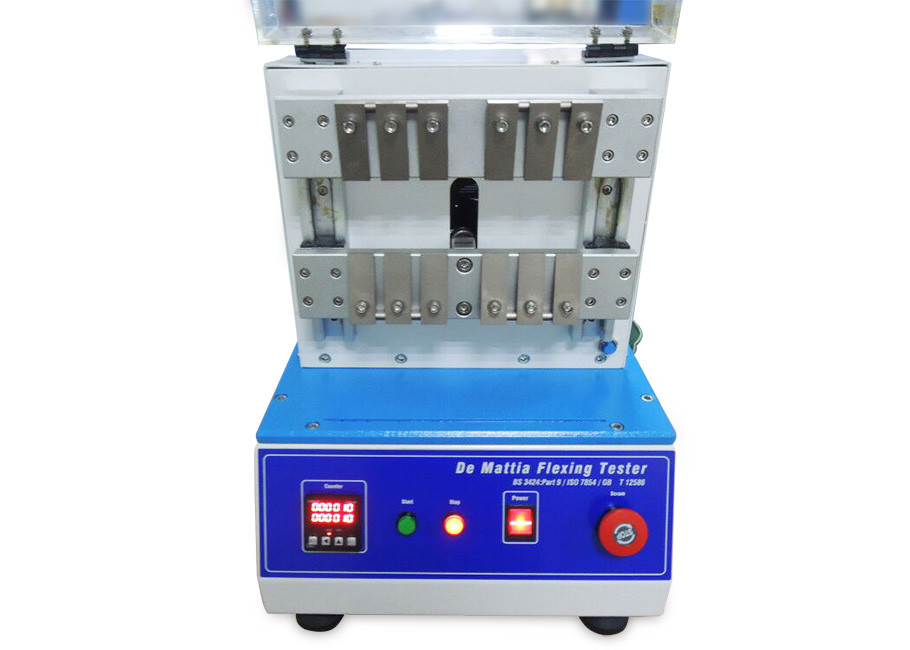

CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester


Applications

De Mattia Flexing Tester is used for the assessment of the resistance of coated fabrics to damage by repeated flexing under De Mattia method.

The tester is suitable for coated fabric against repeated flexing damage performance, to provide a reference for improving the fabric.



Standards

BS 3424 P9, ISO 7854



Principle

Fold a strip of coated fabric two times with their long edges stacked to form a 125 mm × 12.5 mm strip. Install the folded strip between a pair of flat clamps, one of the clamps can be reciprocated, causing the folded specimen to bend outward five times per second. This high-speed folding of the sample continues until the predetermined number of cycles or sample is significantly damaged.



Parameters

 Item

 Specification

 Fixtures

 6 Group

 Test Speed

 5.0Hz±0.2Hz(300±12r/min)

 Fixture Width

 20mm

 Test track

 Vertical reciprocating motion

 Test stroke

 57mm

 Fixture minimum space

 13mm±0.5mm

 Fixture max space

 70mm±1mm

 Specimen size

 37.5mmx125mm

 Specimen quantity

 6 pcs, wrap and horizontal each 3 pcs

 Dimension(WxDxH)

 36x35x50cm

 Weight

 ≈45Kg

 Power supply

 1∮ AC 220V 50Hz 3A
