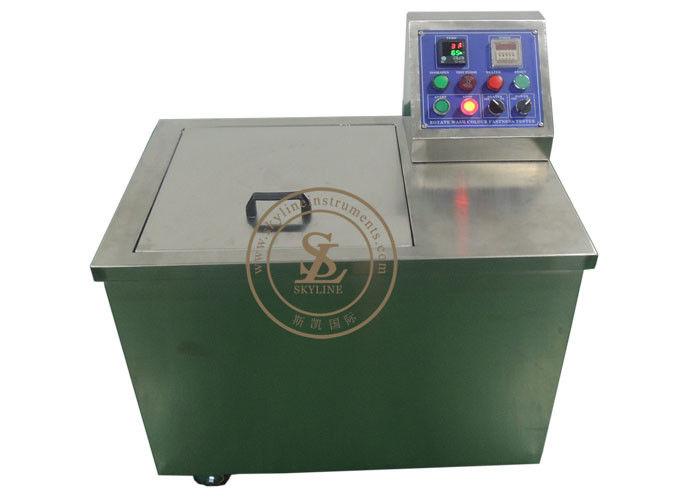

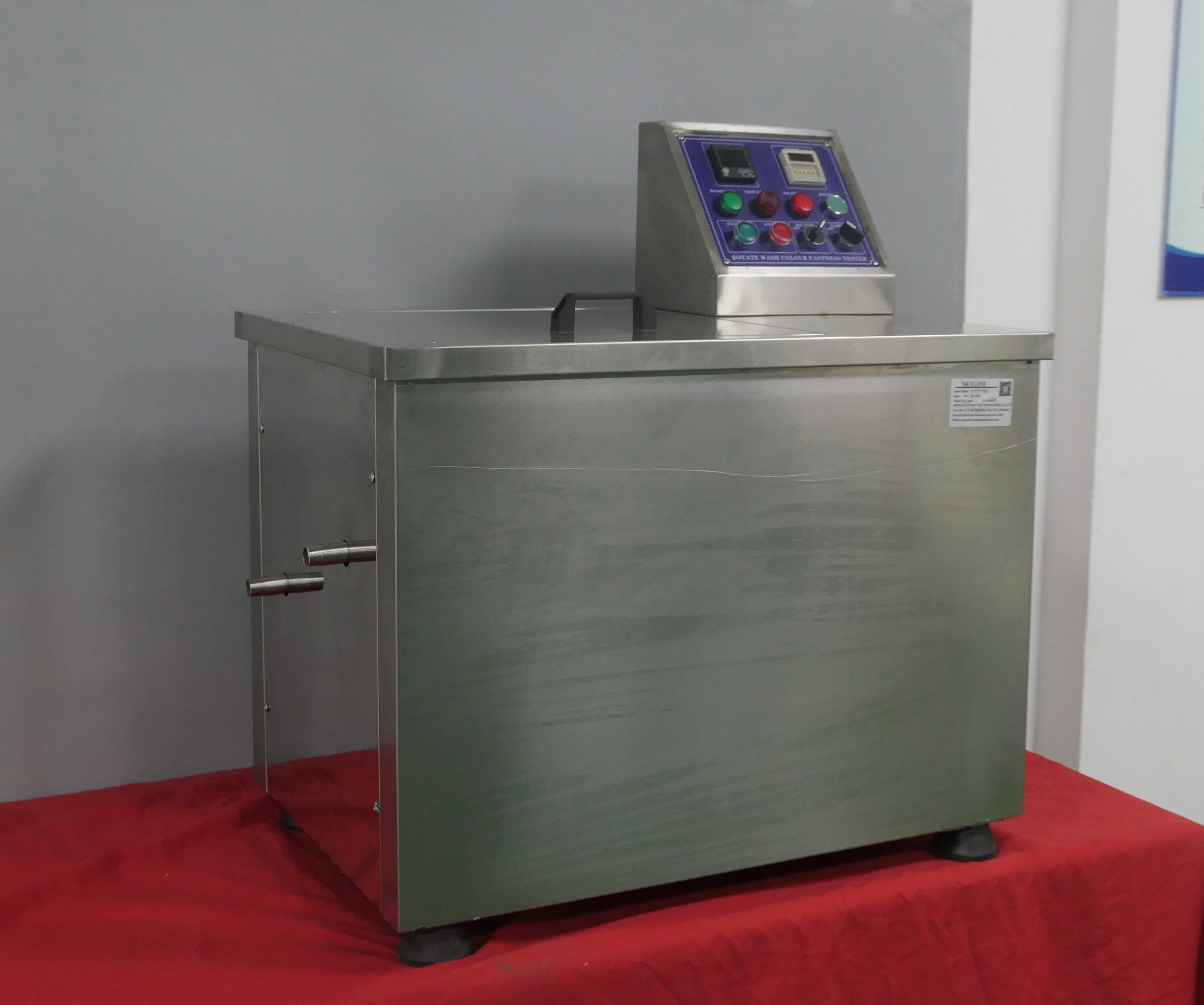

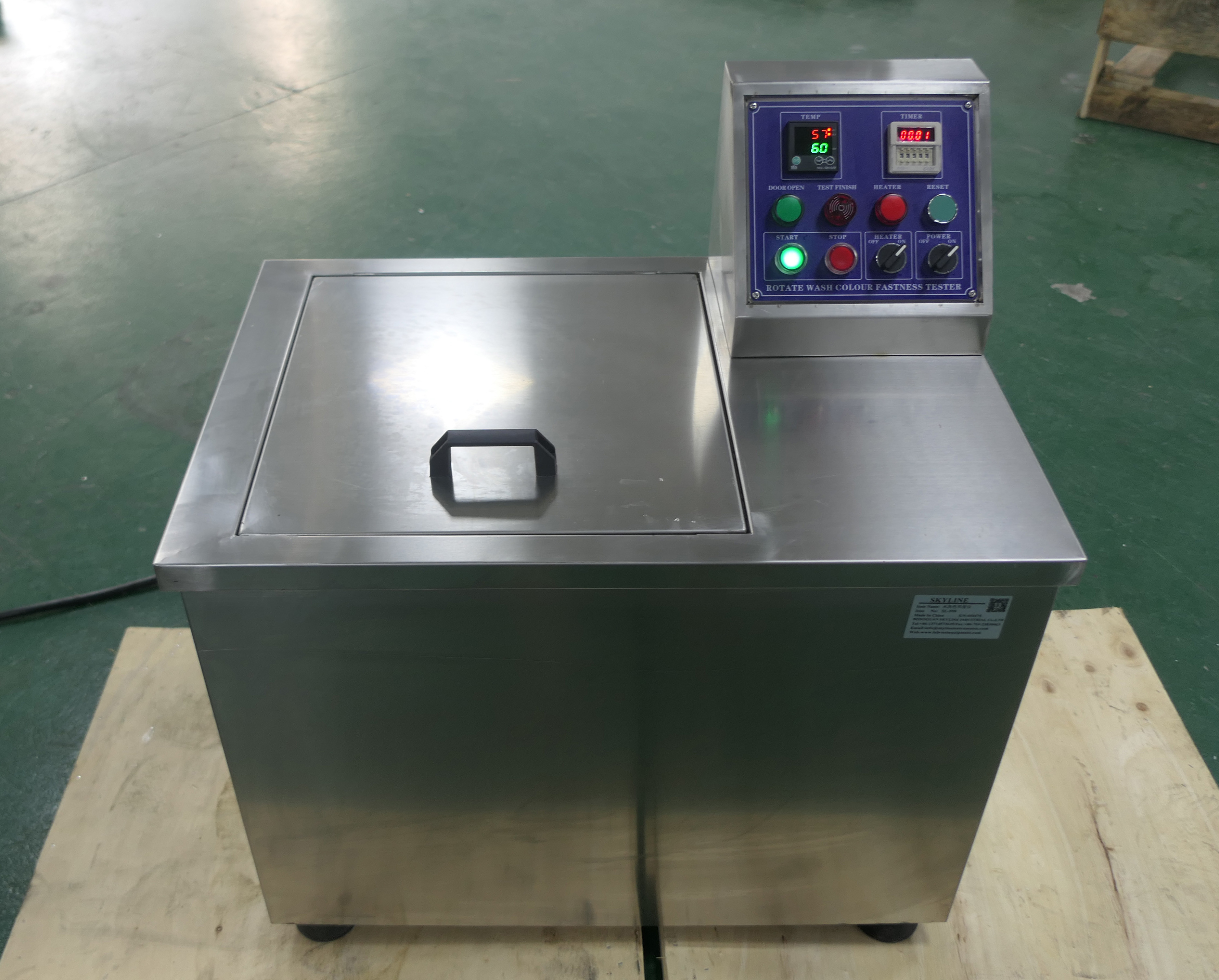

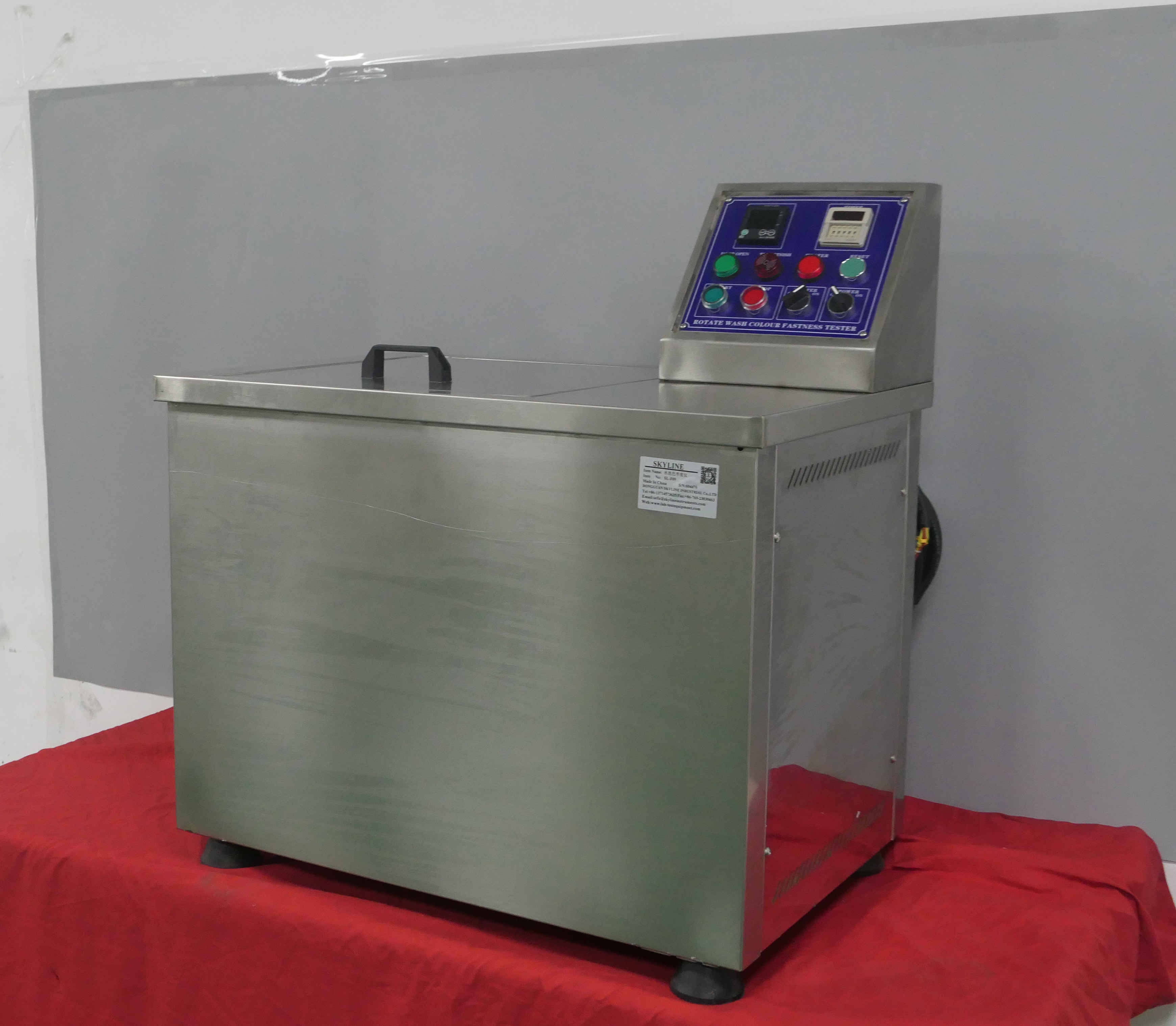

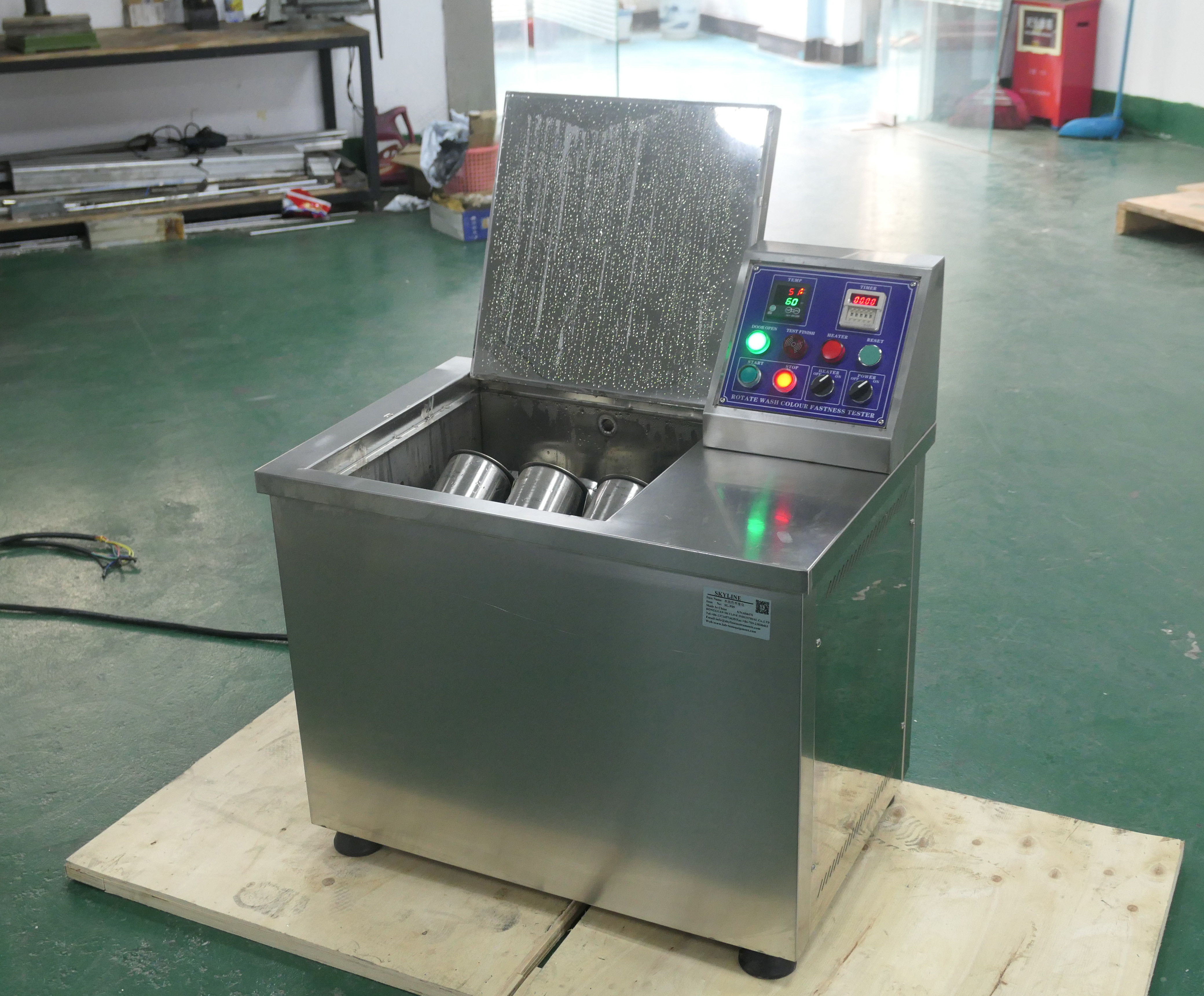

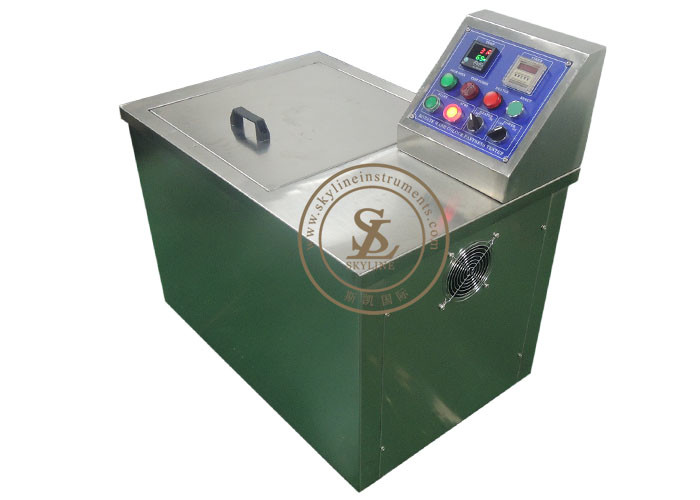

100C Textile Testing Equipment Rotowash Washing Fastness Tester

Name: 100C Textile Testing Equipment Rotowash Washing Fastness Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F09
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-F09

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiated

Packaging Details: Plywood case

Delivery Time: 7 working days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 3 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                100C Textile Testing Equipment, Rotowash washing fastness tester, 100C washing fastness tester


SKYLINE:	Durable Rotawash Washing Fastness Tester	Spin Speed:	40±2r/min
Temperature Control Range:	0~100℃	Standards:	AATCC/3/28/61/86/132, BS1006, JISL0860
Cup Capacity:	550ml, 1200ml	Power Supply:	AC 380V, 50Hz

SKYLINE:	Durable Rotawash Washing Fastness Tester
Spin Speed:	40±2r/min
Temperature Control Range:	0~100℃
Standards:	AATCC/3/28/61/86/132, BS1006, JISL0860
Cup Capacity:	550ml, 1200ml
Power Supply:	AC 380V, 50Hz

Product Description

Textile Testing Equipment Rotawash Color Fastness Tester

Product Introduction

Rotawash Washing Fastness Tester is used for determining color fastness of textile materials to washings. This is attained by mechanically agitating a specimen of textile in contact with pieces of specified adjacent fabrics in soap – soda solution. Before being rinsing and dried. The change in color of specimen and stains of the adjacent fabrics are assessed with standard Grey Scale.

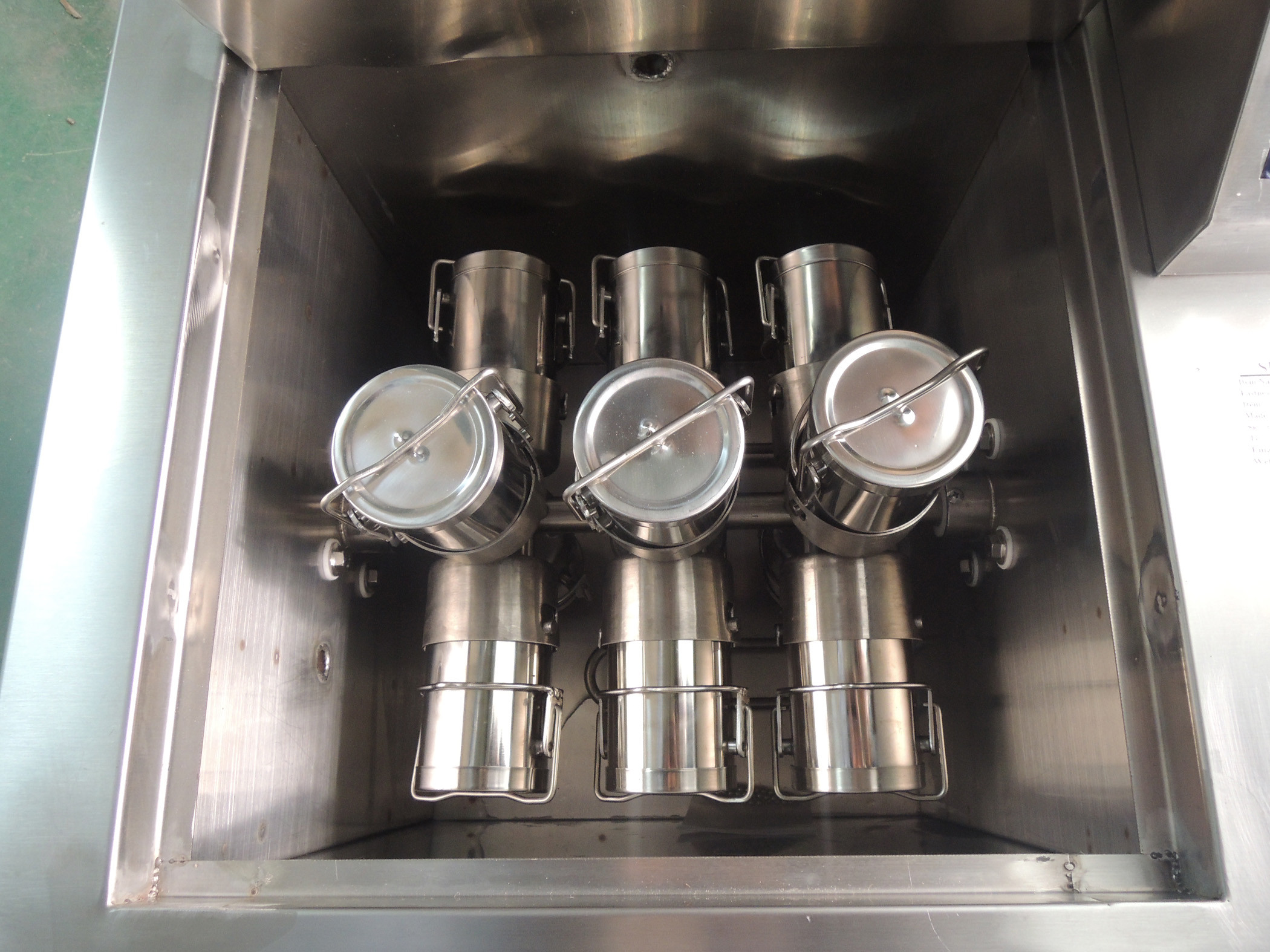

Number of Jars Eight
Volume of each Jar 550 cc (Approx)
Distance of base jars from the axis of rotation 50 mm
Speed of rotation 40 to 45 rpm.
Temperature of Water Bath Ambient of 980 C
Motor ¼ HP 230 V AC.

Technical parameters

Cup capacity	550ml, 1200ml (optional)
Spin speed	40±2r/min
Time control range	99.9min
Time control error	<±5s
Temperature control range	0~100℃
Temperature control error	<±2℃
Heating method	Electric heating
Power Supply	AC 380V, 50Hz

Testing Standards
IS 687 – 1979, 764 - 1979, 765 – 1979, 3417 – 179, 3417 – 179, Method of determination of Color fastness of textile materials to washing: Test1, Test2, Test 3, Test 4 and Test 5 respectively.

Rotate Wash Colour Fastness Tester.pdf

100C Textile Testing Equipment Rotowash Washing Fastness Tester 0

Product Features

1. This wash fastness tester design parameter conform to ISO, BS, AATCC, JIS, and SDC those standards.
2. This washing fastness tester's box and its test cup adopt stainless steel material, it has anti-high temperature,
acid-base, and corrosion functions.
3. Equip with door safety switch, can protect from burning or injured.
4. Equip with procedure time counter, digital temperature controller, auto temperature, and time control, it has alarm
hint while experiment ending.
5. Can customize cup compound mode according to customers' requirements.
