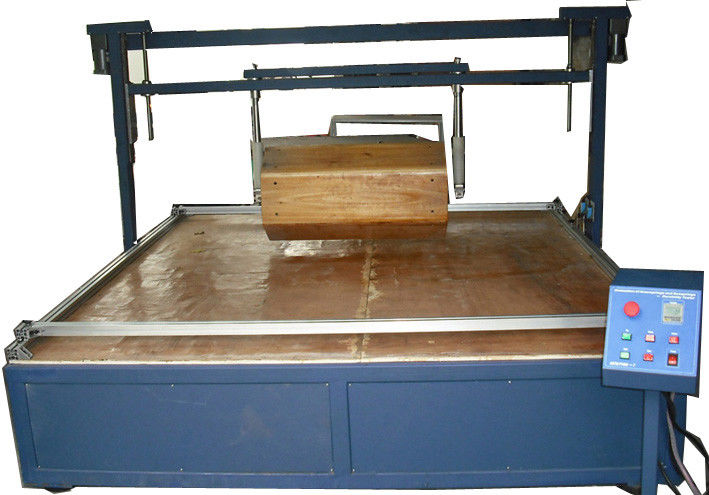

Movable Gantry Rollator Durability Testing Machine with Servo Actuator

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T07
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 30 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Mattress Durability Testing Machine Rollator Length: 915±75mm
Rollator Horizontal Stroke: 1600mm Can Be Set Rollator Vertical Stroke: 0-400mm
Max Dimension Of Specimen: 1800×2200mm Cylinder Weight: 140 KG.
Highlight:

mattress testing equipment

,

spring testing equipment
Product Description

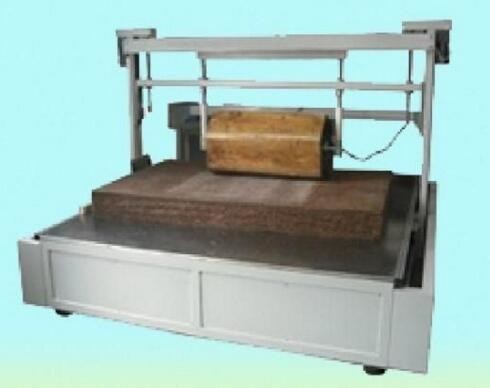

Movable Gantry Rollator Durability Mattress Testing Machine with Servo Actuator



Application of Mattress testing Machine

It is use to test the durability of all kinds of mattress.

This machine use high precision Servo linear electric cylinder to control the force, displacement, speed. One-step installation, mattress rollator test. When finish the test, the system will lift the roller to origin automatically.



Standard of Mattress testing Machine

ASTM F 1566 BSEN 1957

Key specification of Mattress testing Machine

 Hexagonal roller  240 ± 10Lb (109 ± 4.5kg), length 36 ± 3in (915 ± 75mm)
 Six-cylinder edge distance  17 ± 1in (430 ± 25mm)
 ASTM 1566

 Max. mattresses width

Min. 70% of mattresses width or 38in (965mm) choose a smaller value between them;
 Test speed  ASTM 1566: no more than 20 cycles / min
 Measured disc  ASTM 1566: diameter 13.54 ± 0.2in (344 ± 5mm)
 Mattress rollator size (WxDxH)  267cmx300cmx195cm
 Weight (approx.)  about 2000kg
 Power supply  three-phase four-wire AC 380V 6A



Techincal parameters of Mattress testing Machine

 Roller  Woodiness,six sided roller
 Roller length  915±75mm
 Roller specification  Diameter of Roller (Flat to Flat )432±25mm
 Roller weight  109±4.5KG
 Roller horizontal stroke  1600mm can be set
 Rollator vertical stroke  0-400mm
 Rollator test frequency  16 cycles/ minute can be set
 Testing times  0—999,999 times can be set
 Max dimension of specimen  1800×2200mm





Movable Gantry Rollator Durability Testing Machine with Servo Actuator
