Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T07
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 30 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Mattress Durability Testing Machine Rollator Size: Rollator Size (WxDxH): 267cmx300cmx195cm
Weight: 2000KG Standard: ASTM F1566, EN1957
Wooden Hex Barrel Weight: 109KG Cylinder Weight: 140 KG.
Highlight:

mattress testing equipment

,

spring testing equipment
Product Description

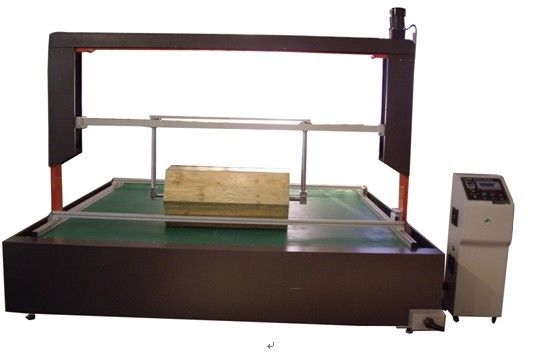

Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine



Application of Mattress testing Machine

The Mattress Rollator measures the durability of mattresses by simulating long-term use conditions, to determine the durability of any type of mattress and boxspring unit, regardless of the materials of construction.



Standard of Mattress testing Machine

ASTM F 1566 BSEN 1957



Key Specification of Mattress testing Machine

Testing schedule

ASTM 1566: Max. mattresses width;

Min. 70% of mattresses width or 38in (965mm) choose a smaller value between them;



 Hexagonal roller  240 ± 10Lb (109 ± 4.5kg), length 36 ± 3in (915 ± 75mm)
​ Six-cylinder edge distance  17 ± 1in (430 ± 25mm)
 Test speed  ASTM 1566: no more than 20 cycles / min
 Measured disc  ASTM 1566: diameter 13.54 ± 0.2in (344 ± 5mm)
 Mattress rollator size (WxDxH)  267cmx300cmx195cm
 Weight (approx.)  about 2000kg
 Power supply  three-phase four-wire AC 380V 6A



Main Features of Mattress testing Machine

 Imposed the pressure on mattress by a transducer, pressure range to 300KG
 Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
 Pusher travel speed adjustable, about 160 weeks times per minute
 Suitable maximum specimen  2.2M ×2.2M
 Display Accuracy  0.001kgf
 Deformation precision  0.001mm
 Impact height  0-300mm adjustable
 Counter range  0-99999 times
 Machine size  ( L×W×H) about 3000×2800×2500mm
 Weight  about 650Kg



Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine
