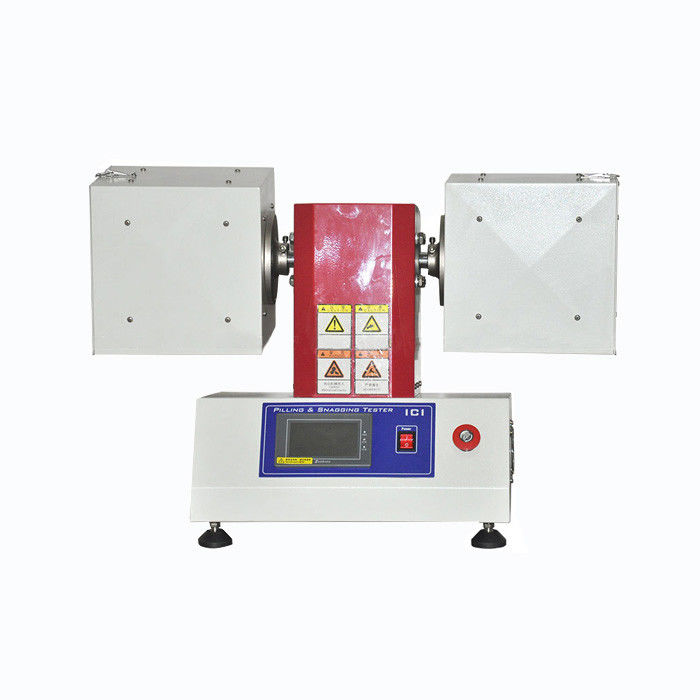

Textile Fabric ICI Pilling Tester Snagging Tester And Roll Box Pilling Tester/ICI Pilling Box Tester
IS10971 – 1984 Pilling Box Tester Machine , Textile Testing Equipment Physical Test Instruments
Product introduction
ICI Pilling Box Tester is used for Determination of fabric propensity to surface fuzzing and to pilling by Pilling box method. Used for pilling test of fabrics ( woolen jersey especially ) under no pressure.
It is a fabric surface fault characterized by little pills of entangled fibres clinging to the surface. These are formed during wearing or washing by the entanglement of the loose fibres which protrude from the fabric surface and development of these into spherical bundles anchored to the fabric by a few unbroken fibres. These give a very unsightly look to the garments.
To determine the tendency to form pills, test specimens taken from the fabric sample are rubbed against each other under controlled conditions and the appearance of the test specimen after rubbing for the specified period is compared against standard rating photographs for grading the fabric.
Related standard
ISO 12945-1,BS EN ISO 12945-1,BS 5811,BS 8479,GB/T 4802.3,JIS L 1058,JIS L1076,M&S P18A,M&S P18B,M&S P18C
Technical Parameter
| Model |
SL-F02C |
SL-F02 |
| Number of Pilling Box |
2 Boxes |
4 Boxes |
| Rotation Speed |
60+/-2 r/min |
| Size of Inner Box |
235×235×235mm (L×W×H) |
| Counter |
1-99999 Auto Stop |
| Specimen mounting tube size and weight |
32×140 mm , 52.5g |
| Power Supply |
110V/220V, 50Hz/60Hz |
| Machine Size |
860×480×500mm |
860×480×880mm |
| Machine Weight |
65kg |
95kg |
