Footwear Testing Equipment Digital Shoeslace Rub Test Machine , SATRA PM154 Rub Resistance Tester

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L18

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion resistance tester, rub resistance tester


Brand:	SKYLINE	SKYLINE:	Shoelace Rubbing Resistant Tester
Movable Fixture Stroke:	35± 2 Mm	Test Speed:	60 ± 6 Cyles/min
Weight:	50kg	Standards:	DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226

Brand:	SKYLINE
SKYLINE:	Shoelace Rubbing Resistant Tester
Movable Fixture Stroke:	35± 2 Mm
Test Speed:	60 ± 6 Cyles/min
Weight:	50kg
Standards:	DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226

Product Description

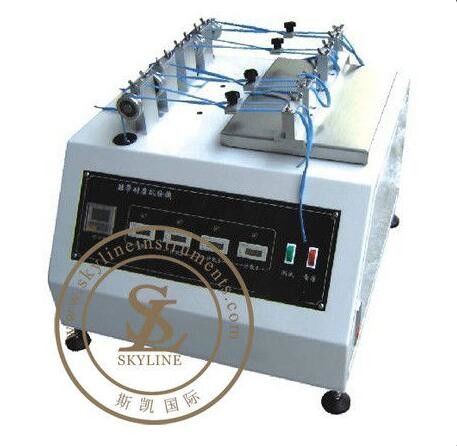

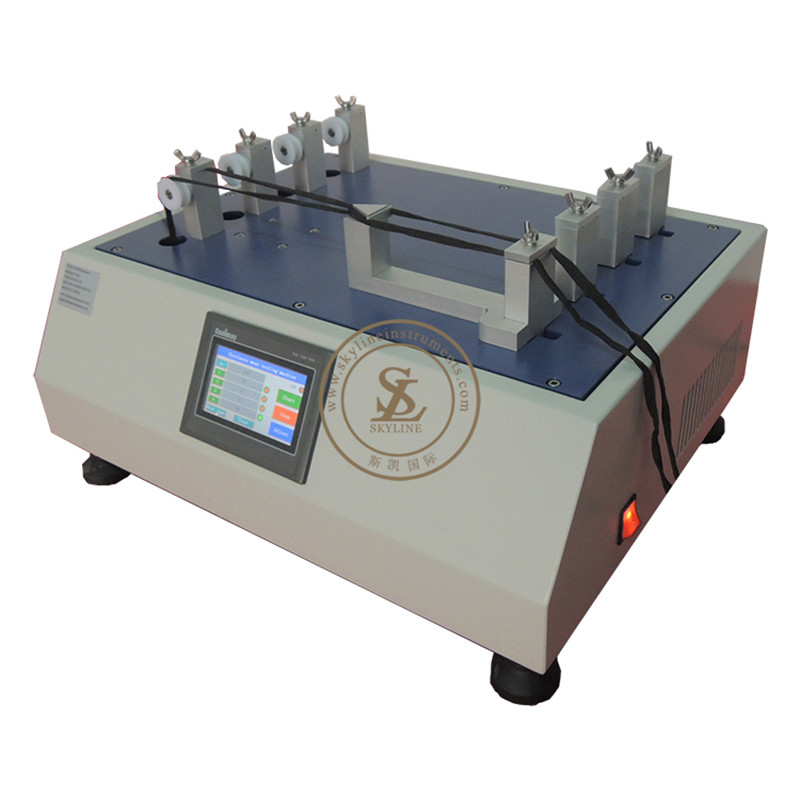

SATRA PM154 Footwear Testing Equipment Digital Shoeslace Rubbing Resistant Tester

Application

This machine is used to test the rubbing resistance for shoelace of cotton, hemp, chemical fiber or other materials.

Product information
This machine is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.4 sets of specimens can be tested once.

Specifications

Test position	4 groups
Control	Touch-screen control, 0~999,999
Min. Separation between movable and fixed fixtures	280 ±50 mm
Movable fixture stroke	35± 2 mm
Test speed	60 ± 6 cyles/min
Profile board	Angle 52.5degree; Length120 mm
Stainless metal strip	W: 25mm, L: 250mm
Weight	250 ± 3g
Power supply	1phase AC 220V 50/60HZ
Dimensions ( L x W x H )	66 x 58 x 42cm
Weight	50 kg
Standards	DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226

Footwear Testing Equipment Digital Shoeslace Rub Test Machine , SATRA PM154 Rub Resistance Tester 0

What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
