High Temperature Test Chamber Chamber For Testing VOC And Formaldehyde Emission
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-E01
SKYLINE:
1000L Temperature And Humidity Test Chamber
Inner Size:
1000*1000*1000
Controller:
TEMI” South Korea“TEMI”
Temperature Fluctuation:
≤ ± 1 ℃;
Temperature Uniformity:
≤ 2 ℃;
Power Supply:
380V ± 10% V; 50Hz;
Highlight:
climatic test chamber
,humidity testing equipment
,High Temperature Test Chamber For VOC
Product Description

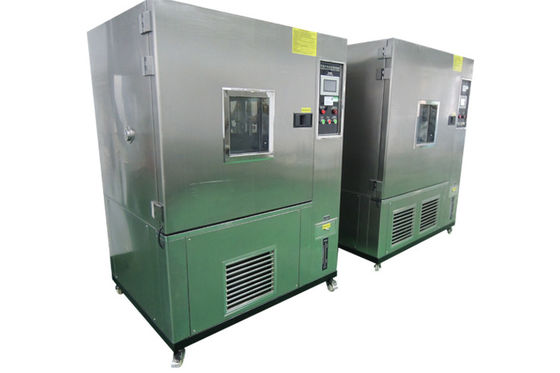

High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission
Applications
- To simulate test environment with different temperature and humidity
- Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test,moistening test and drying test…
- Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
- Uncover test unit weakness in a short-term test with accelerated time effect
Specifications
Inner size | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*800 | 100*100*100 |
| External size W*H*DCM | 90*136*154 | 100*146*184 | 100*161*210 | 110*171*237 | 150*186*257 | 150*186*267 |
| Temperature range | -40°C~+150°C (A:-20°C B:-40°C ) | |||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H) | |||||
Temp humidity | ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition. | |||||
Temperature humidity | ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H. | |||||
Heat/cooling time | About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition ) | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer. | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-20°C) ,air and water double segment compressor | |||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, | |||||
| Parts | Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze | |||||
| Controller | TEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | |||||
Features
- Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
- Control temperature&humidity well-distributed, precisely and steady.
- Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
