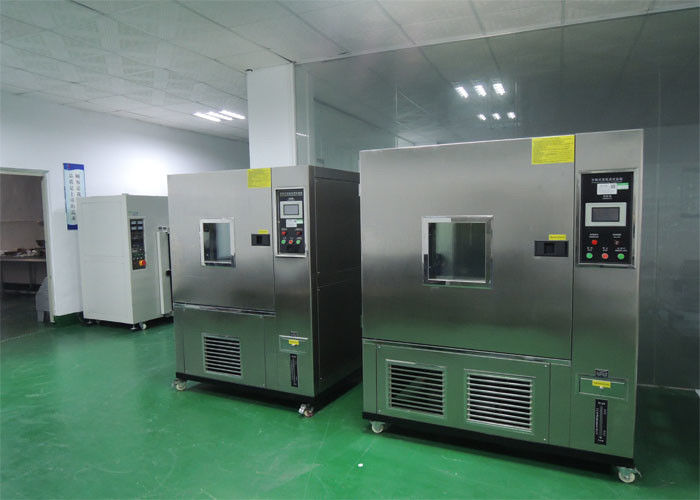

Programmable Humidity Testing Equipment , 408L Contant Temperature Test Chamber

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Temperature Humidity Test Chamber Temperature Range: -40 ℃ ~ +100 ℃;
Internal Size: 800 * 600 * 850mm Temperature Fluctuation: ≤ ± 1 ℃;
Temperature Uniformity: ≤ 2 ℃; Power Supply: 380V ± 10% V; 50Hz;
Highlight:

humidity testing equipment

,

temperature testing equipment
Product Description



Enviromental Test Chamber 408L Programmable Contant Temperature and Humidity Testing Chamber



Features

  •  Programmable Controller with RS232C, 5.7″ LCD touch panel control
  •  Stainless steel Interior, galvanized steel sheet exterior
  •  2pcs stainless steel loading shelves free
  •  Multiple viewing window with heater
  •  50mm diameter feed-through port
  •  Floor stand with castors
  •  Imported compressor



 The main technical

  1.  Internal size: 800 * 600 * 850mm (width × depth × height);
  2.  External Dimensions: 970 × 970 × 2300mm (width × depth × high);
  3.  The temperature range: -40 ℃ ~ +100 ℃;
  4.  The temperature fluctuation: ≤ ± 1 ℃;
  5.  The temperature uniformity: ≤ 2 ℃;
  6.  The temperature deviation: ≤ ± 2 ℃;
  7.  The rise and fall rate:
  8. From +20 to -40 ° C for about 45 min
  9. From + 20-100 ° C for about 40 min
  10. Humidity range: 3 0% -98% R.H (AT + 25 ℃ ~ +85 ℃)
  11. Humidity error: + 2 / -3% R.H (75% R.H or more), ± 5% R.H (75% R.H or less)
  12. Wind speed: 1.7 ~ 2.5m / s;
  13. The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall within 1/6 space measured test;
  14. 11 Power: about 6.5Kw;
  15. 12 Power: 380V ± 10% V; 50Hz;


Standards


GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C)
GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86



Installation environment

  • Temperature:0℃~35℃,Relative humidity:≤85%,Atmospheric pressure:86kPA~106kPa
  • Installation site should be ground flat,and ventilation.
  • Equipment without a strong vibration around.
  • No strong magnetic fields affect the surrounding equipment.
  • The equipment around the non-flammable, explosive, corrosive substances, and dust
  • Left around the proper use of equipment and maintenance of space.



Programmable Humidity Testing Equipment , 408L Contant Temperature Test Chamber



#sus 304 stainless steel Inner working room
