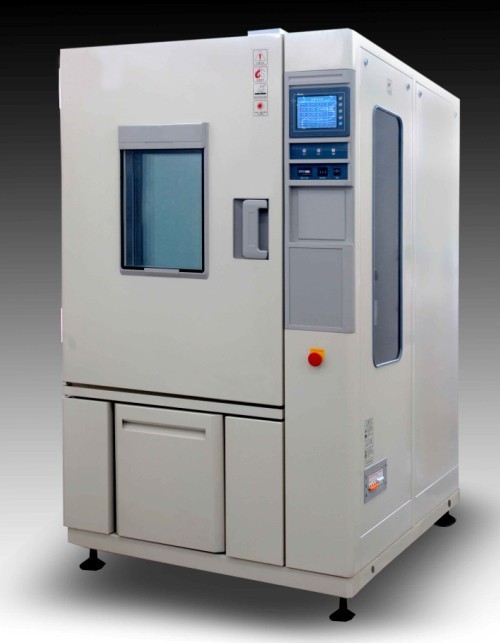

Professional Temperature Testing Equipment , 6.55 Inch Touch Screen Climatic Test Chamber

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Climatic Test Chamber Temperature Range: -20 ℃ ~ +150 ℃;
Internal Size: 500 * 750 * 600mm Temperature Fluctuation: ≤ ± 1 ℃;
Temperature Uniformity: ≤ 2 ℃; Power Supply: 380V ± 10% V; 50Hz;
Highlight:

climatic test chamber

,

humidity testing equipment
Product Description

6.55 inches Touch Screen Controller Temperature and Humidity Climatic Test Chamber

Product information
The system consists of the following
The test chamber is to provide high and low temperature and humidity constant, high and low temperature and humidity alternating test environment; including refrigeration systems, heating systems, humidification / dehumidification / water systems, duct systems, control systems, system safety protection devices.

Parameters

 Inner size
W*H*DCM

40*50*4050*60*5050*75*6060*85*80100*100*800100*100*100
 External size  W*H*DCM90*136*154100*146*184100*161*210110*171*237150*186*257150*186*267
 Temperature range-40°C~+150°C
(A:-20°C B:-40°C )
 Humidity range20%~98%R.H.(10%-98%R.H/5%~98%R.H)

 Temp humidity
analytic accuracy/ uniformity

±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.

 Temperature humidity
control accuracy/fluctuation

±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.

 Heat/cooling time


About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
 Inner and outer materialsSUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
 Insulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
 Cooling system

Air cooling/single segment compressor(-20°C) ,air and water double segment compressor
(-40°C~-70°C)

 Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system


 PartsWatching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
 ControllerTEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional
 CompressorOriginal France“Tecumseh”brand
 Power1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Features
1. Programmable Temperature and Humidity control test chamber
2. Temperature range : -40℃ ～ +150 ℃

3. Humidity range: 20% ~ 98% RH
4. Cooling unit is French TECUMSEH compressor
5. Environment friendly Refrigerant R404A & R23
6. Humidification system with External isolation, stainless steel surface evaporation humidifier
7. Heating element is Independent Nichrome electronic heating system
8. Circulation with cold resistance and low noise centrifugal wind wheel
9. Temperature sensor PT-100 , Resolution: ± 0.01 ℃

10. Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
11. Build- in water tank , 25Liter
12. Programmable color display touch screen controller
