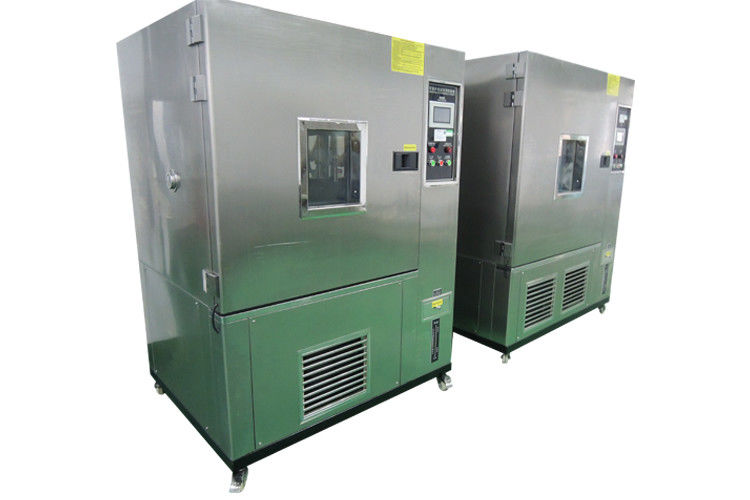

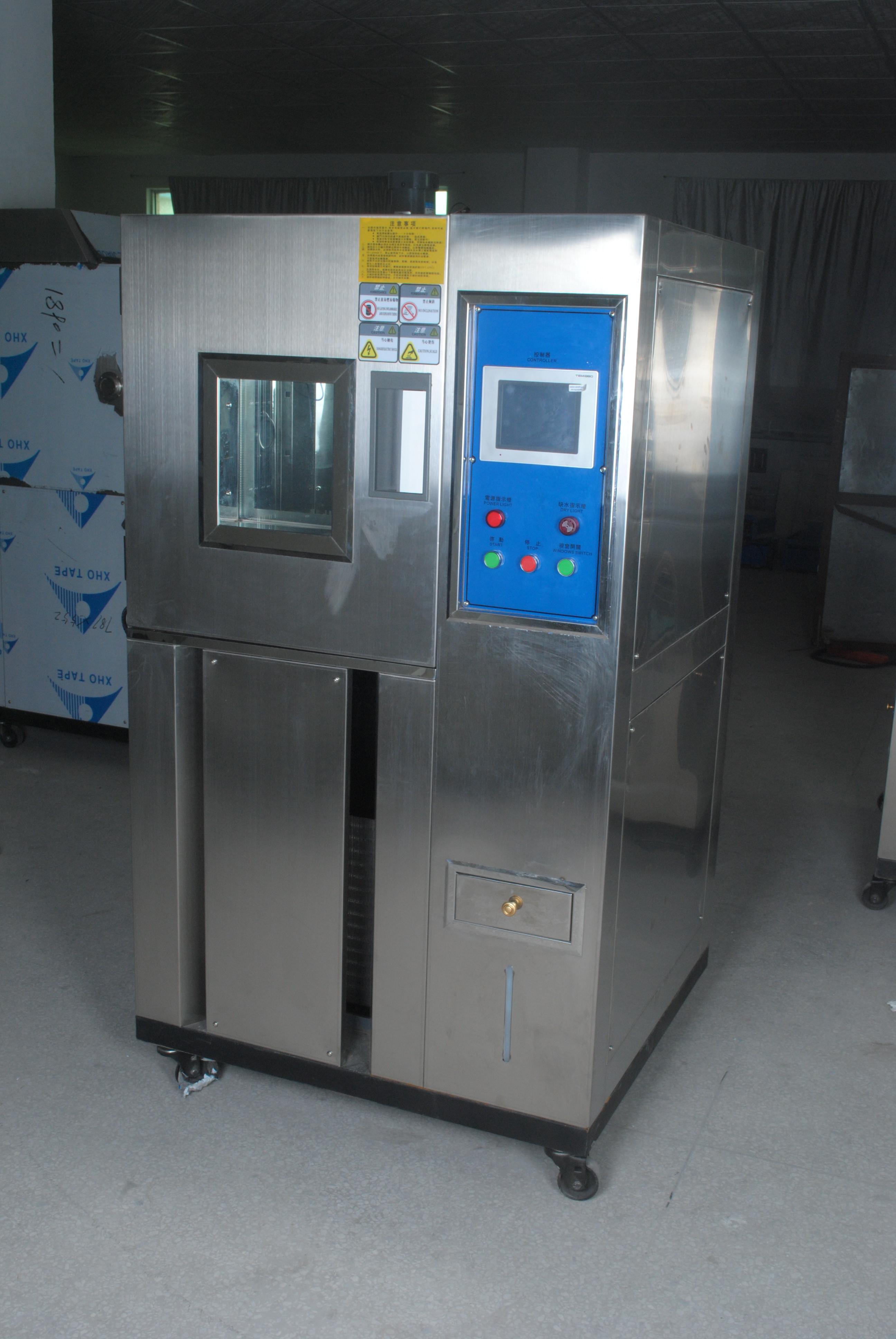

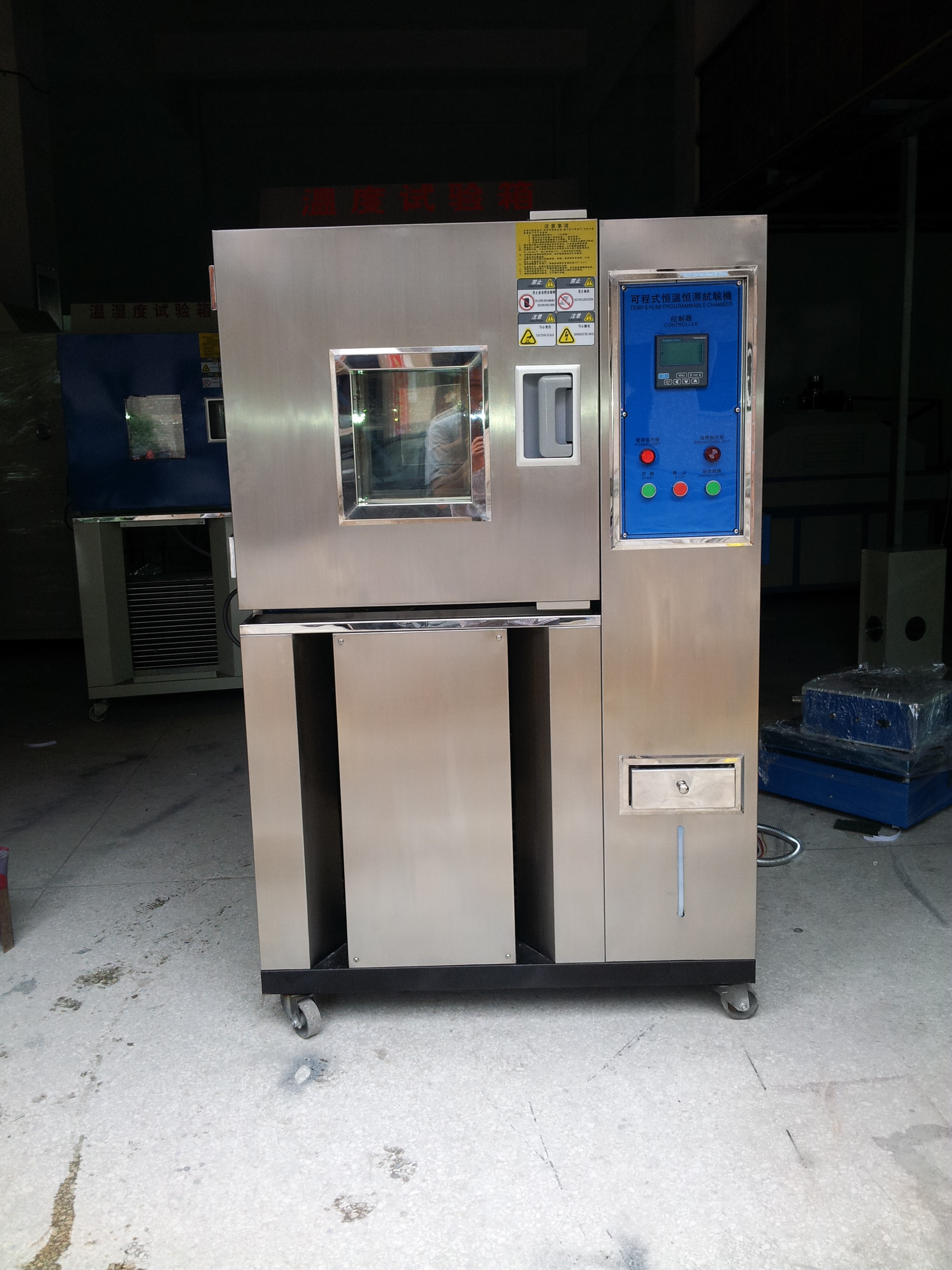

High Temperature Test Chamber Chamber For Testing VOC And Formaldehyde Emission

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: 1000L Temperature And Humidity Test Chamber Inner Size: 1000*1000*1000
Controller: TEMI” South Korea“TEMI” Temperature Fluctuation: ≤ ± 1 ℃;
Temperature Uniformity: ≤ 2 ℃; Power Supply: 380V ± 10% V; 50Hz;
Highlight:

climatic test chamber

,

humidity testing equipment

,

High Temperature Test Chamber For VOC
Product Description

High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission

Applications

  1. To simulate test environment with different temperature and humidity
  2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test,moistening test and drying test…
  3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
  4. Uncover test unit weakness in a short-term test with accelerated time effect


Specifications


 Inner size
 W*H*DCM

40*50*4050*60*5050*75*6060*85*80100*100*800100*100*100
 External size   W*H*DCM90*136*154100*146*184100*161*210110*171*237150*186*257150*186*267
 Temperature range-40°C~+150°C
(A:-20°C B:-40°C )
 Humidity range20%~98%R.H.(10%-98%R.H/5%~98%R.H)

 Temp humidity
 analytic accuracy/   uniformity

±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.

 Temperature   humidity
 control   accuracy/fluctuation

±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.

 Heat/cooling time


About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
 Inner and outer  materialsSUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
 Insulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
 Cooling system

Air cooling/single segment compressor(-20°C) ,air and water double segment compressor
(-40°C~-70°C)

 Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system


 PartsWatching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
 ControllerTEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional
 CompressorOriginal France“Tecumseh”brand
 Power1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz


Features

  • Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
  • Control temperature&humidity well-distributed, precisely and steady.
  • Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
