800L Constant Temperature And Humidity Test Chamber For Electrical / Mobile

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 workding days
Payment Terms Western Union, , T/T
Supply Ability 3 unit / month
Product Details
SKYLINE: Temperature And Humidity Testing Chamber Controller: LCD Colour Touch Screen
Internal Material: SUS#304 Stainless Steel External Material: SUS#304 Stainless Steel With 3B Surface Treatment: SUS#304 Stainless Steel With 3B Surface Treatment
Humidity Range: 10 To 98%RH Accuracy: ±2%RH Power Supply: Single Phase 220V; 3phase 380V
Highlight:

800L climatic test chamber

,

800L humidity testing equipment

,

98%RH humidity testing equipment
Product Description

Constant Programmable 800L Temperature and Humidity Testing Chamber



Product introduction

800 L Programmable Temperature & Humidity Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Technical Data

 Power Supply  220V / 380V, 50Hz / 60Hz, Specified in order
 Temperature Control Mode  Balance Temperature Control(BTC) Mode
 Working Environment  Temperature  5°C ~ 35°C
 Temperature Range  Temp Range from -70°C to 150°C is available on request
 Humidity Range  20% to 98% RH +/- 0.5% (5 ~ 15% is available on request)
 Heating rate  4.0 °C / min
 Cooling rate  1.2 °C / min
 Shell material  Quality SUS304 stainless steel
 Interior material  Quality SUS304 stainless steel
 Thermal Insulation Material  Polyurethane foam (glass wool)
 Controller  Siemens or HT-900 Korea
 Refrigerating Unit  Tecumseh, France made
 Cooling Mode  Water cooling / Double segment compressor
 Heater  Ni-Cr heating wire
 Blower  Centrifugal blower
 Temperature Sensor  PT100
 Safety Devices  Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection
 Optional Parts  printer, special port, added shelf, special shelf, PL internal bulbs, dry and wet ball gauze, etc.

 Internal Dimensions

(W x D x H cm)

 40 x 40 x 50 50 x 50 x 60 60 x 50 x 75 80 x 60 x 85 100 x 80 x 100 100 x 100 x 100
 Internal Volume (L) 80 150 225 408 800 1000

 External Dimensions

( W x D x H cm)

 90 x 94 x 136 100 x 104 x 146 100 x 117 x 161 110 x 137 x 171 150 x 137 x 186 150 x 157 x 186
 Weight (Kg) 180 250 300 400 520 550



Application industry (not limited to the following)
1. Electronic, electrical, mobile, data
2. Communication, instrumentation, vehicle parts
3. Plastic products, metal, food
4. Chemistry, building materials, medical treatment
5. Space and other products to detect the quality of use

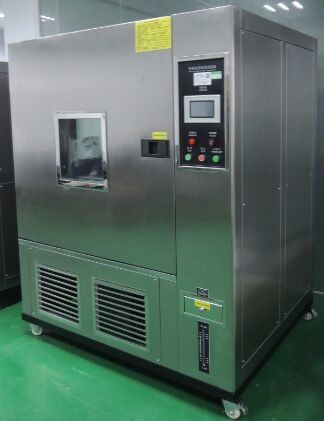

800L Constant Temperature And Humidity Test Chamber For Electrical / Mobile



Working room is made of SUS#304 stainless steel material
