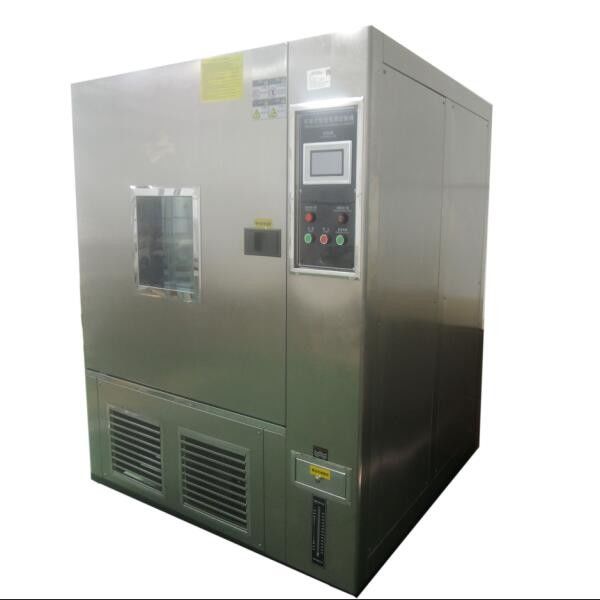

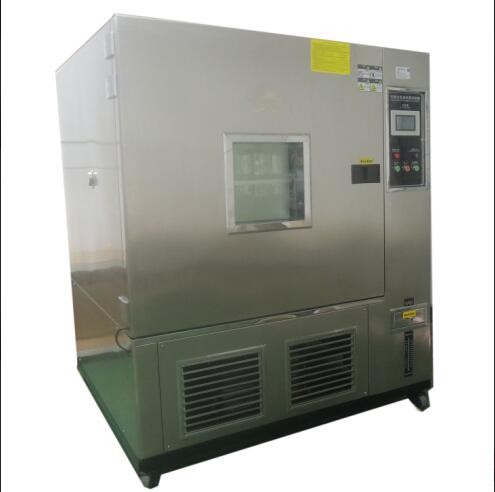

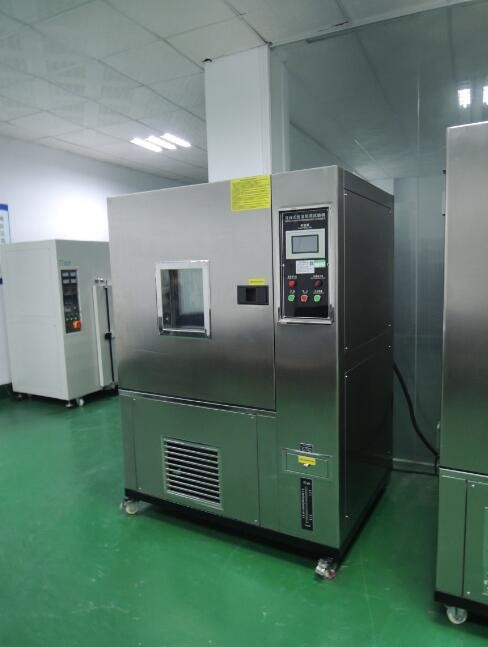

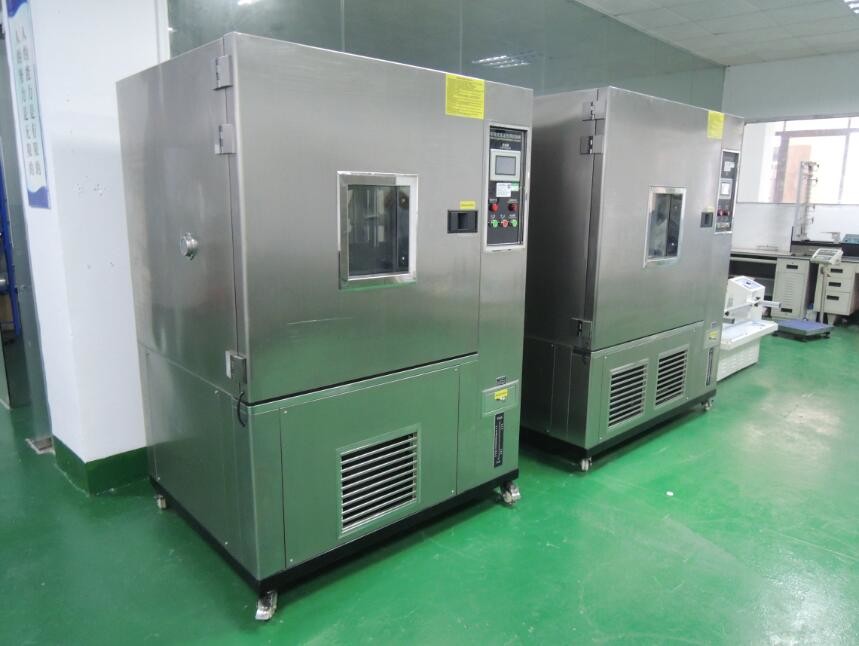

800L Temperature And Humidity Testing Chamber With Safety Protection Device

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Programable Contant Temperature And Humidity Testing Chamber Temperature Range: -40 ℃ ~ +100 ℃;
Internal Size: 800 * 600 * 850mm Temperature Fluctuation: ≤ ± 1 ℃;
Temperature Uniformity: ≤ 2 ℃; Power Supply: 380V ± 10% V; 50Hz;
Highlight:

climatic test chamber

,

temperature testing equipment
Product Description

800L Temperature And Humidity Testing Chamber With Safety Protection Device



Applications

The test chamber function is to provide high and low temperature and humidity constant, high and low temperature and humidity alternating test environment; with refrigeration systems, heating systems, humidification / dehumidification / water systems, duct systems, control systems, system safety protection



Main technical

 Studio size  800 × 1000 × 1000mm (depth × width × height)
 Dimensions 1300 × 1470 × 2100mm (depth × width × height)
 Temperature  20 ° C
 The temperature fluctuation  ≤ ± 1 ℃
 The temperature uniformity  ≤ 1 ℃
 The temperature deviation  ≤ ± 2 ℃
 The rise and fall rate  From room temperature ~ 20 ℃, about 15min
 Humidity  65% R.H
 Humidity error  +2 / -3% R.H
 Wind speed

 1.7 ~ 2.5m / s

The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall 1/6 space measured test
 Power  about 8.5Kw
 Power  380V ± 10% V; 50Hz
 Meet the relevant standards and test methods  GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C)
 GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86



Safety protection device
1.Studio over-temperature protection;
2.Heater short circuit protection;
3.Humidifier short circuit protection;
4.Fan overload protection;
5.Compressor overpressure protection;
6.Compressor overload protection;
7.Water cut / water protection;
8.Leakage protection;
9.Safe and reliable grounding device



Temperature And Humidity Testing Chamber.pdf



800L Temperature And Humidity Testing Chamber With Safety Protection Device
