Programmable Humidity Testing Equipment , 408L Contant Temperature Test Chamber
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-E01
SKYLINE:
Temperature Humidity Test Chamber
Temperature Range:
-40 ℃ ~ +100 ℃;
Internal Size:
800 * 600 * 850mm
Temperature Fluctuation:
≤ ± 1 ℃;
Temperature Uniformity:
≤ 2 ℃;
Power Supply:
380V ± 10% V; 50Hz;
Highlight:
humidity testing equipment
,temperature testing equipment
Product Description

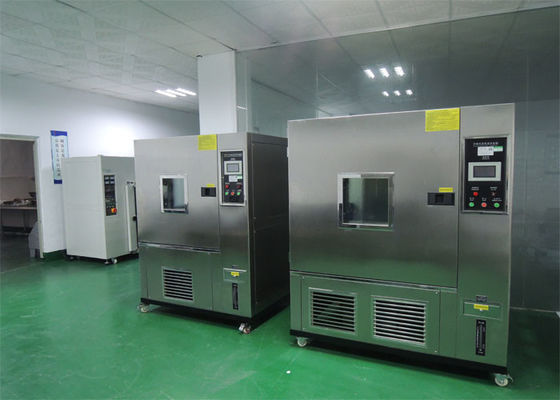

Enviromental Test Chamber 408L Programmable Contant Temperature and Humidity Testing Chamber
Features
- Programmable Controller with RS232C, 5.7″ LCD touch panel control
- Stainless steel Interior, galvanized steel sheet exterior
- 2pcs stainless steel loading shelves free
- Multiple viewing window with heater
- 50mm diameter feed-through port
- Floor stand with castors
- Imported compressor
The main technical
- Internal size: 800 * 600 * 850mm (width × depth × height);
- External Dimensions: 970 × 970 × 2300mm (width × depth × high);
- The temperature range: -40 ℃ ~ +100 ℃;
- The temperature fluctuation: ≤ ± 1 ℃;
- The temperature uniformity: ≤ 2 ℃;
- The temperature deviation: ≤ ± 2 ℃;
- The rise and fall rate:
- From +20 to -40 ° C for about 45 min
- From + 20-100 ° C for about 40 min
- Humidity range: 3 0% -98% R.H (AT + 25 ℃ ~ +85 ℃)
- Humidity error: + 2 / -3% R.H (75% R.H or more), ± 5% R.H (75% R.H or less)
- Wind speed: 1.7 ~ 2.5m / s;
- The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall within 1/6 space measured test;
- 11 Power: about 6.5Kw;
- 12 Power: 380V ± 10% V; 50Hz;
Standards
GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C)
GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86
Installation environment
- Temperature:0℃~35℃,Relative humidity:≤85%,Atmospheric pressure:86kPA~106kPa
- Installation site should be ground flat,and ventilation.
- Equipment without a strong vibration around.
- No strong magnetic fields affect the surrounding equipment.
- The equipment around the non-flammable, explosive, corrosive substances, and dust
- Left around the proper use of equipment and maintenance of space.
#sus 304 stainless steel Inner working room
