Home > products > Flammability Testing Equipment > 16 CFR 1611 Vinyl Plastic Film Flammability Testing Equipment SPI Flammability Tester

16 CFR 1611 Vinyl Plastic Film Flammability Testing Equipment SPI Flammability Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S 1611

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case,

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                flammability test chamber, flammability test apparatus


SKYLINE:	CFR 16 Part 1611 SPI Flammability Test Chamber	Standards:	16 CFR 1611
Application:	Vinyl Plastics Film	Flame Length:	1/2"
Marker Line Spacing:	6”	Sample Size:	3”x9”
Volum:	46x29x52cm	Power Supply:	220V±10％ 50HZ

SKYLINE:	CFR 16 Part 1611 SPI Flammability Test Chamber
Standards:	16 CFR 1611
Application:	Vinyl Plastics Film
Flame Length:	1/2"
Marker Line Spacing:	6”
Sample Size:	3”x9”
Volum:	46x29x52cm
Power Supply:	220V±10％ 50HZ

Product Description

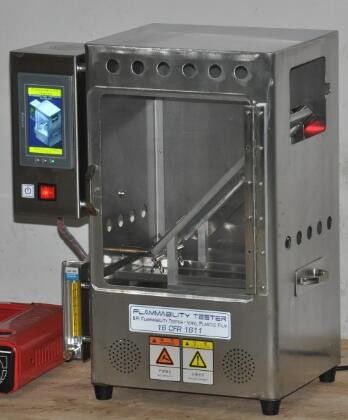

16 CFR 1611 Vinyl plastic film flammability tester ,SPI Flammability Tester

Product information

SPI Flammability Tester, to determine the ignition properties of vinyl plastic film material according to CFR 16 Part 1611 - U.S.A. Flammable Fabrics Act for flammability of apparel vinyl plastic film.

The rate of burning shall not exceed 1.2 in./s as judged by the average of five determinations lengthwise and five determinations transverse to the direction of processing, when specimen is placed at an angle of 45 degree and expose to the standardized flame (22# fire nozzle, 1/2 inch. In length).

Specifications

The most advanced thread locking device and sample holder save 80% of operation time that faster than other suppliers’ design

Equipped with photoelectricity sensor accurately and automatically record burning time with no damage ensures 5 years life or longer

Timer accuracy up to 0.01 second;22# needle flame, 9/16inch from the specimen, flame length adjusted by flow-valve;

Test box 30cmX25cmX37cm, 5pcs x 20mm vents on the left and right sides

The nozzle is 9/16" from the surface of the sample"

Gas butane

Timing distance of burning	6 inch
Sample holder	45°
Marker line spacing	6”
Flame length	1/2"
Sample size	3”x9”
Volume (WxDxH)	46x29x52cm
Weight (approx.)	≈20Kg
Power supply	1∮ AC 220V 50Hz 3A

Included Accessories

set of main machine. Completed with cabinet, flow-meter, timer, transparent viewing window, etc.

1 set of sample holder

20 White cotton threads

l 1 Sample cutting template

5 22# Fire nozzles

Standards CFR 16 Part 1611
