Mask Flame Retardant Tester
, GB2626 Flammability Testing Equipment

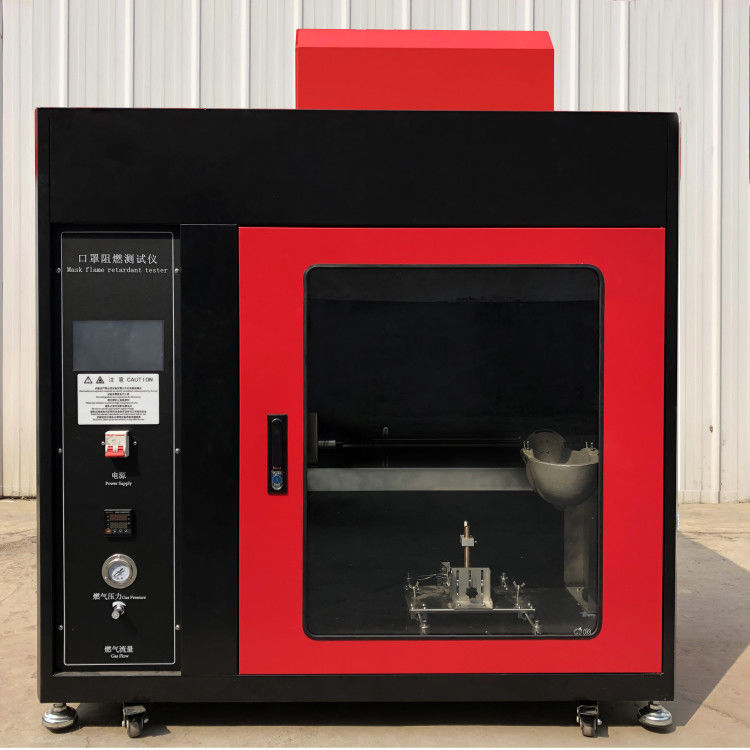

Mask Flame Retardant Tester
Product Introduction
This mask flame retardant tester is developed according to GB2626 and is used to test the fire retardant performance of masks. The applicable standards are: GB2626 GB19082 GB19083 GBT32610 YY0469 YYT0969, etc.
Technical parameters

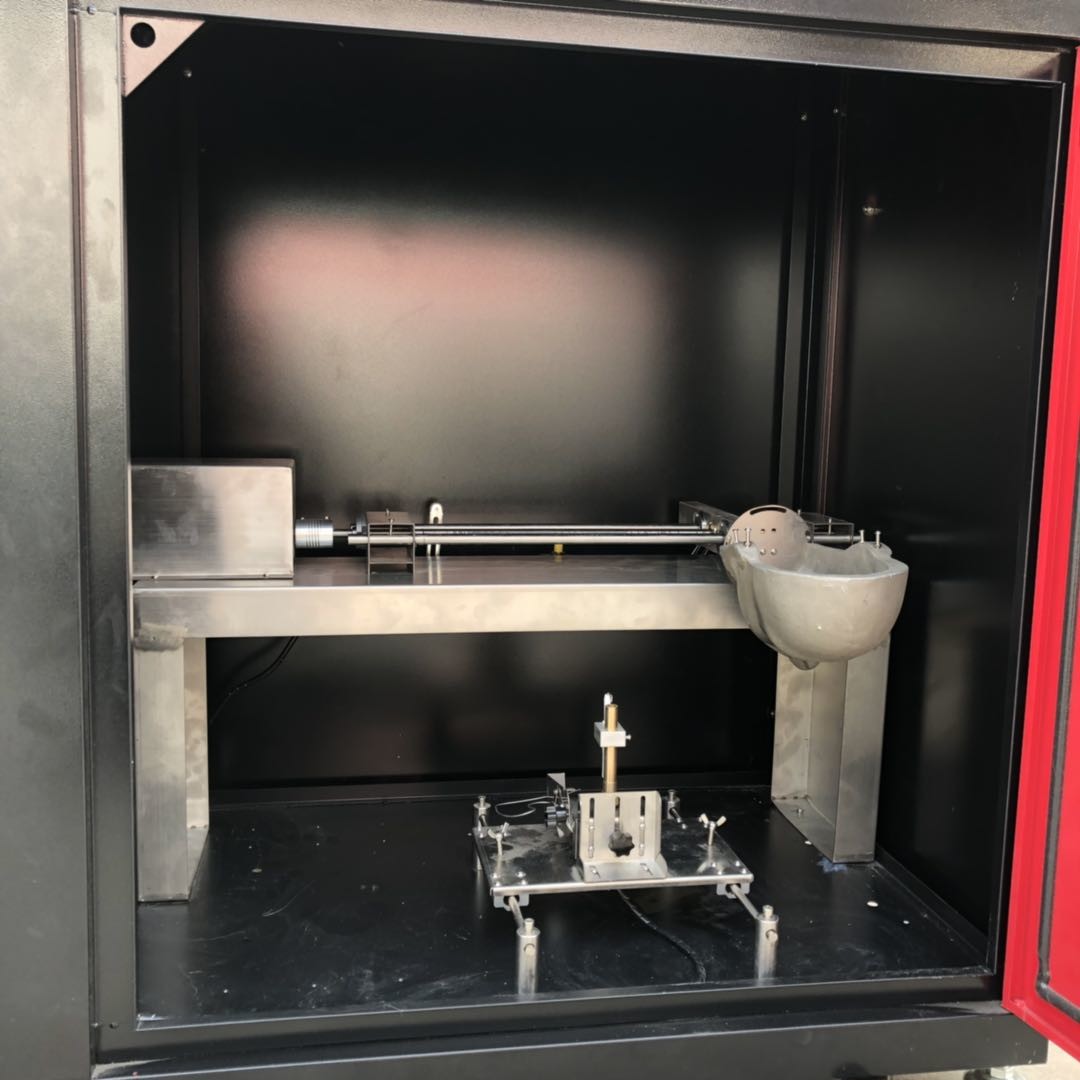

1. The mask head mold is made of metal and simulates human facial features according to the ratio of 1: 1.
2.Burner height adjustable
3.Automatic positioning timing
4. Display afterflame time
5. Equipped with flame sensor
6. Head mold moving speed (60 ± 5) mm / s
7.Diameter of flame temperature detection needle 1.5mm
8. Flame temperature adjustment range 750-950 ℃
9. Accuracy of afterburning time 0.1S
10.Power source 220V 50HZ
11. Gas: propane or liquefied petroleum gas
Operation interface introduction
Test interface
Medical Face Masks Flammability Tester.pdf
Positioning: Click on the head mold to stop above the torch to adjust the direct distance between the torch and the head mold
Run: The head mold starts to move toward the torch and stops after reaching the other position
Exhaust: open and close the exhaust fan on the box
Gas: Open and close the gas passage
Ignition: start high pressure ignition
Lamp: Turn on and off the lighting inside the box
Save: Save the test data after the test is completed
Timer: Recording the after burning time
