DIN7520 Flammability Testing Equipment Automobile Interior Materials Vertical Flammability Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-7604
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 10 work days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1 unit/ month
Product Details
Standards: DIN7520 Cover Size: L385 * W204 * H360mm
Burner: I/D Is 9.5mm Metallic Comb: Length ≥110mm
Highlight:

horizontal flammability tester

,

flammability test apparatus
Product Description

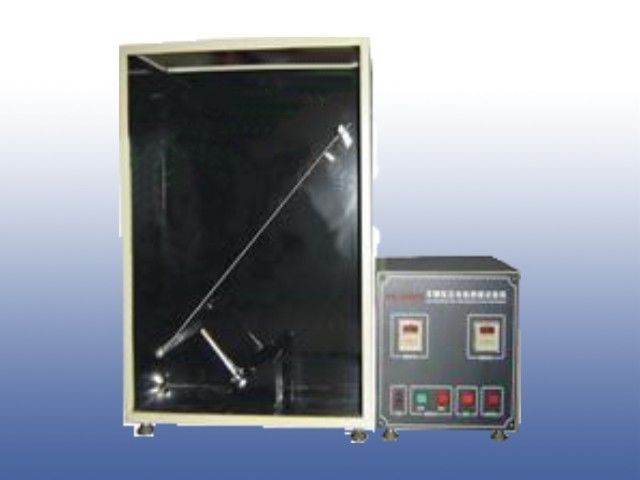

Automobile Interior Materials Vertical Flammability Tester , Flaming Resistance Testing Equipment

Application
Applied to test the flaming of interior material of Automobile, such as cars, carriage and load truck etc.

Standard
 DIN7520

Technology parameters
 Burning time  0.01～99.99/S/M/H continually timing and setting ,when up to setting value could stop automatically
 Cover size  L385 * W204 * H360mm
 Control box size  305X320X285 mm
 Burner  I/D is 9.5mm
 Burner position  The center of nozzle under the center of specimen’s free end, and the distance is19mm
 Metallic comb  Iength ≥110mm, there are 7～8 smooth and round gears every distance within 25mm
 Steel ruler  Accuracy is 1.0mm
 Gas  Liquefied petroleum gas (user self-provided)
