Flammability Testing Equipment , Tracking Index Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7609

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                flammability test chamber, flammability test apparatus


Standards:	IEC60112-2003, UL746, ASTMD3638-92, DIN53480 Etc	Dimension:	W1100 * D600 * H1220mm
Electrode Material:	Electrode Of Platinum, Electrode Holder Is Brass	Power Supply:	220V/AC , 50-60Hz
Electrode Pressure:	1.00N±0.1N	Electrode Space:	4.0±0.01mm, Angle 60°±5°

Standards:	IEC60112-2003, UL746, ASTMD3638-92, DIN53480 Etc
Dimension:	W1100 * D600 * H1220mm
Electrode Material:	Electrode Of Platinum, Electrode Holder Is Brass
Power Supply:	220V/AC , 50-60Hz
Electrode Pressure:	1.00N±0.1N
Electrode Space:	4.0±0.01mm, Angle 60°±5°

Product Description

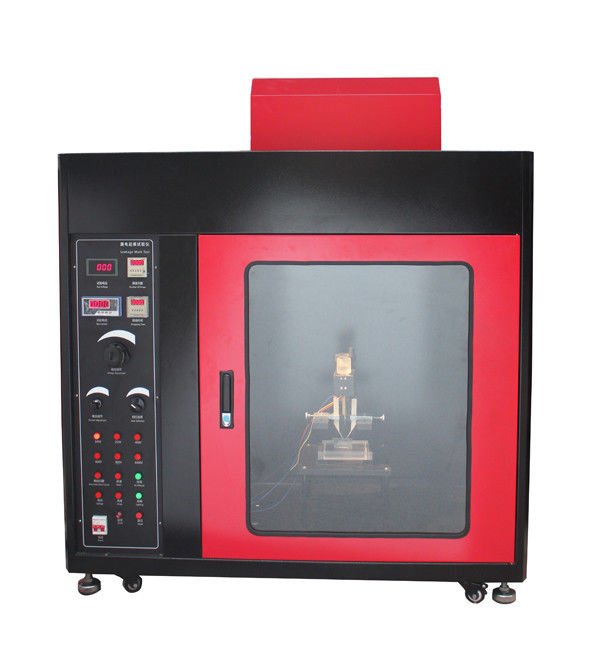

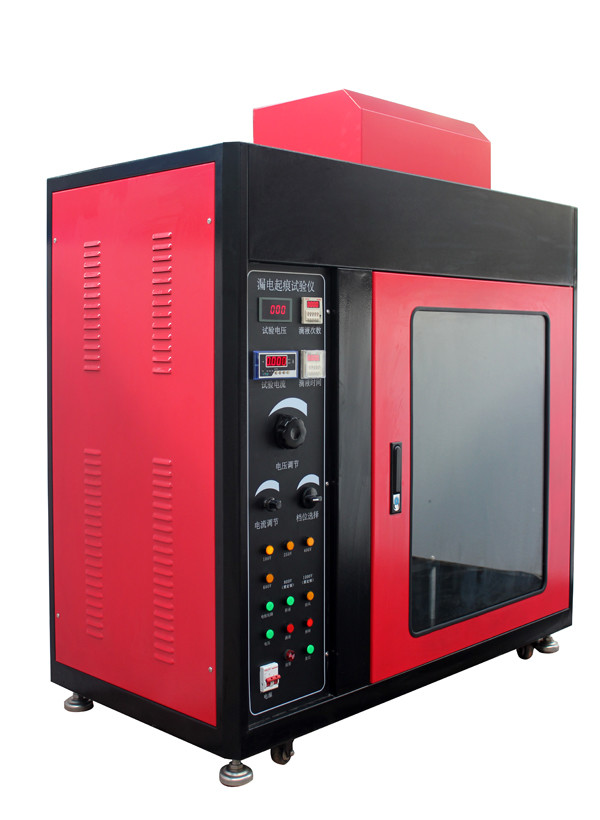

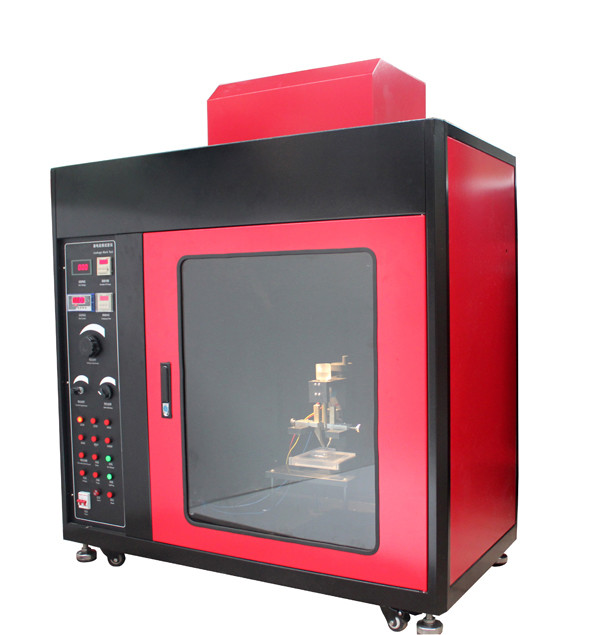

Flammability Testing Equipment , Tracking Index Tester

Used range

This machine applies to determine the tracking index for electrics of various products, such as lighting, electronics, electric tools and instruments. It is also used for insulators, plastics, electric connectors and so on.

Principle

In moisture and impurity circumstance, leakage current of insulation will be produced between live parts of different polarity, or between live parts and grounding metals. The electric arc produced will result in short-circuit. This tester is to simulate these conditions, and to determine the tracking index of materials.

Technical parameters

Electrode Material	Electrode of platinum, electrode holder is brass
Electrode Pressure	1.00N±0.1N
Electrode space	4.0±0.01mm, angle 60°±5°
Electrode size	(2.0 ± 0.1mm)×(5.0 ± 0.1mm)×(40.0 ± 5mm), platinum electrode 12mm, 30°±2° incline
Liquid resistance	Liquid A: 0.1%NH4Cl,3.95±0.05Ωm; Liquid B: 1.98±0.05Ωm
Dripping volume	20drippings is 0.380~0.480g; 50drippings is 0.997~1.147g (inching adjustable)
Dripping Height	35.0 ± 5mm, can be adjust
Dripping Time	30 ± 0.1s, digital timer, 0.0-99.99s for setting, 50 drippings time is 24.5min±2min
Dripping count	1~999999, digital display and presetting
Testing voltage	100V~550V(pre-settable)
Voltage drop	8% when the current is 1.0A±0.1A
Tracking	0.50A±10%, delay time exceed 2.00s±10%
Dimension	W1100 * D600 * H1220mm, hole of exhaust Ø90mm
Power supply	220V/AC , 50-60Hz

Standards

According with IEC60112-2003, UL746, ASTMD3638-92, DIN53480 standards.
