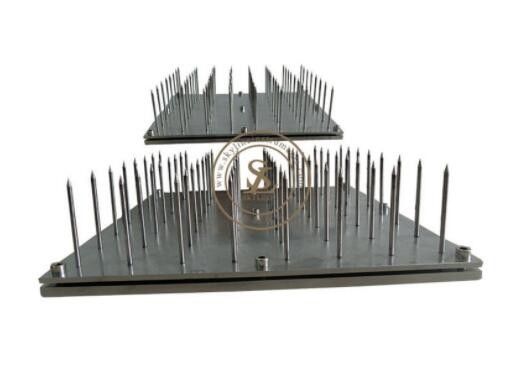

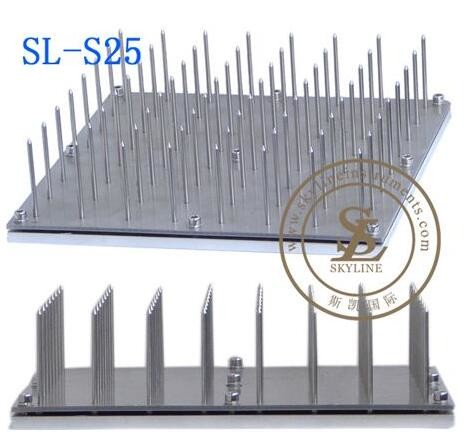

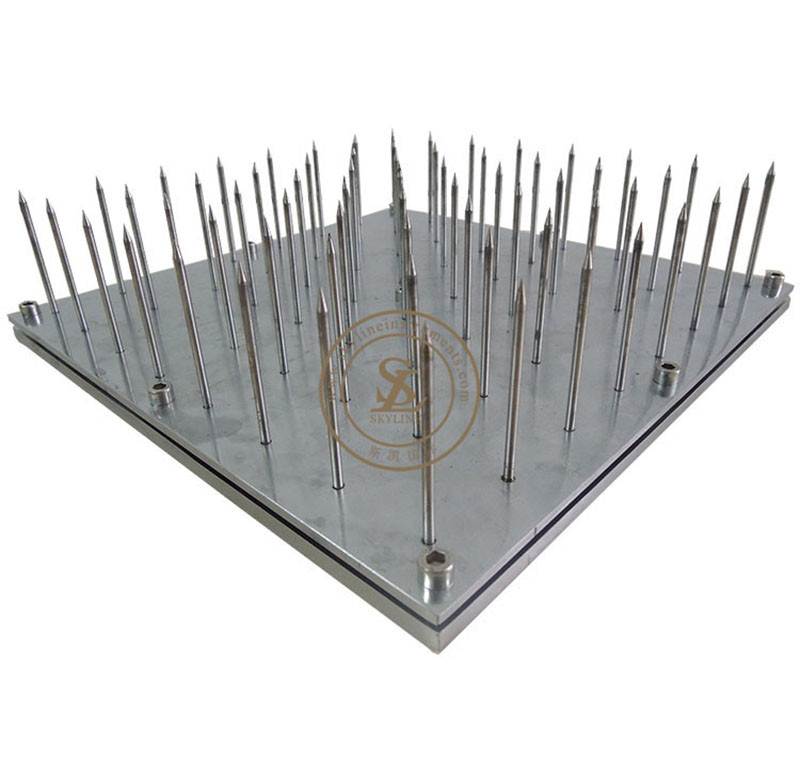

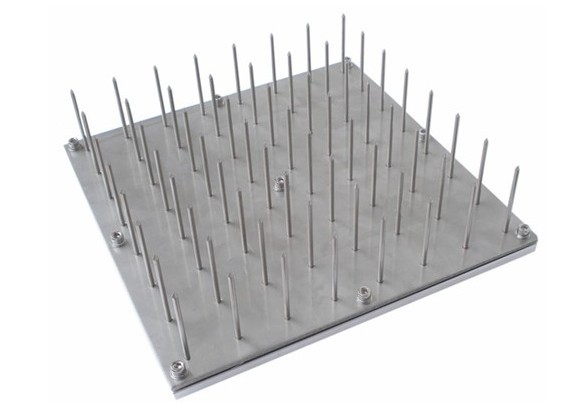

Nail Bed Flammability Testing Equipment

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-S25
Minimum Order Quantity 1 unit
Price neogitable
Packaging Details Plywood case
Delivery Time 5 working days
Payment Terms T/T, Western Union,
Supply Ability 1 unit / month
Product Details
SKYLINE: Nail Bed Flammability Tester Standards: CFR1510, ASTM F963-4.6.2
Apart From The Edge: 0.31inches (7.8mm) Dimension: 10-32x0.38inches (LG)
Screw Spacing: 0.62inches (15.7mm) Outside Dimension: Approx. 254×254mm (1×1inches)
Highlight:

flammability test chamber

,

flammability test apparatus
Product Description

Solid and Soft Toys Flammability Testing Equipment Nail Bed Flammability Testing Equipment



Application

The tester is designed for determining the flammability of cloth toys and plush toys, used in the detection of flammability of flammable hair, and recording the burning time, to make a assessment whether the flammability of the burning part meet the requirement of standards.



Product information

The tester is used as test fixture in the flammability test of solid and soft toys;

Place the prepared sample in a draft-free area that can be ventilated and cleared after each test;

A specified ignition source is acted on the sample until ignition occurs. Observe the combustion state of sample and assess its flammability.



Technical parameters

 Items  Parameters
 Socket Wrench Screw 1  Material  Stainless Steel
 Dimension  # 10-32x0.38inches (LG)
 Quantity  9
 Apart from the edge   0.31inches (7.8mm)
 Screw Spacing  1.25inches (31.75mm)
 Nail 2  Material  Stainless Steel
 Dimension  # 8d×2.50 inches (LG)
 Quantity  64
 Apart from the edge  0.62inches (15.7mm)
 Screw Spacing  4.69 inches (119mm)
 Up plate-stainless steel plate 3  0.12×10.12×10.12inches (3×257×257mm) (LG)
 Bottom plate-stainless steel plate 4  0.25×10.00×10.06inches (6.35×254×255.5mm) (LG)
 Outside dimension  Approx. 254×254mm (1×1inches)



Standard Configurations

Nail Bed Flammable Tester

Burning Paraffin Candle.
