Horizontal Vertical Flammability Testing Equipment

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S29

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: neogitable

Packaging Details: Plywood case

Delivery Time: 10 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                horizontal flammability tester, flammability test chamber


SKYLINE:	Vertical Flammability Tester	Standards:	UL 94-2006 IEC 60695-11-3 IEC 60695-11-4 GB/T5169.15 16 17 22-2008
Timer:	0-999.9s+/-0.1s (adjustable)	Flame Height::	20mm+/-2mm To 180mm+/-10mm(adjustable)
Weight:	128kg	Gas:	98% Methane

SKYLINE:	Vertical Flammability Tester
Standards:	UL 94-2006 IEC 60695-11-3 IEC 60695-11-4 GB/T5169.15 16 17 22-2008
Timer:	0-999.9s+/-0.1s (adjustable)
Flame Height::	20mm+/-2mm To 180mm+/-10mm(adjustable)
Weight:	128kg
Gas:	98% Methane

Product Description

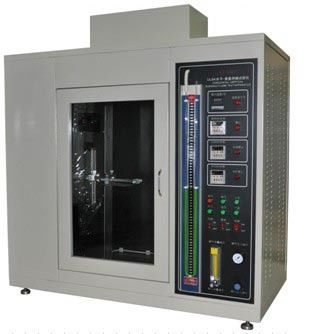

IEC60695-11-3 UL94 Horizontal-Vertical Flame Chamber
Product information
Horizontal and Vertical Flammability Testing Machine
UL 94 flame chamber. Horizontal flame chamber, vertical flame chamber
For the flammability testing of plastic materials used in consumer electric devices and appliances. Stainless steel construction with black interior and large sliding window for easy viewing. Includes a fully adjustable specimen support and precision gas flow controls.

Technical parameters

Kinds	500W(5V class )	50W(HB/Vclass)
Test Flame	500W(burning test for V-0,V-1,V-2 classification)	50W(burning test for V-0,V-1,V-2 classification)
Burner Tube	Internal diameter: Φ 9.5mm±0.3mm	Internal diameter: Φ 9.5mm±0.3mm,
Burning Angle	0°,20°,45°	0°,20°,45°
Thermocouple	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)
Thermocouple Size	0.5 mm	0.5 mm
Standard Copper Block	9mm±0.01mm, weight:10g±005g before drilling.	5.5mm±0.01mm, weight:76g±0.01g before drilling.
Time for Temperature to Increase	From 100°C±5°C to 700°C±3°C; 54s±2s (preset)	From 100°C±5°C to 700°C±3°C; 44s±2s (preset)
Gas Flow	965±32ml/min	105±10ml/min
Gas Supply	methane,min.98% purity	methane,min.98% purity
Water-column	125m±5mm	‹10mm
Test Time	54±2s	44±2s
Flame Height Indicator	40±1mm	20±1mm
Volume Of Chamber	>0.5m³, black interior	>0.5m³, black interior
Conform to standard	UL94,IEC60695-11-3,IEC60695-11-20	UL94,IEC60695-11-4,IEC60695-11-10

Testing Standards
UL 94-2006 IEC 60695-11-3 IEC 60695-11-4
UL94 Horizontal & Vertical Flammability Tester.pdf...
Horizontal Vertical Flammability Testing Equipment 0

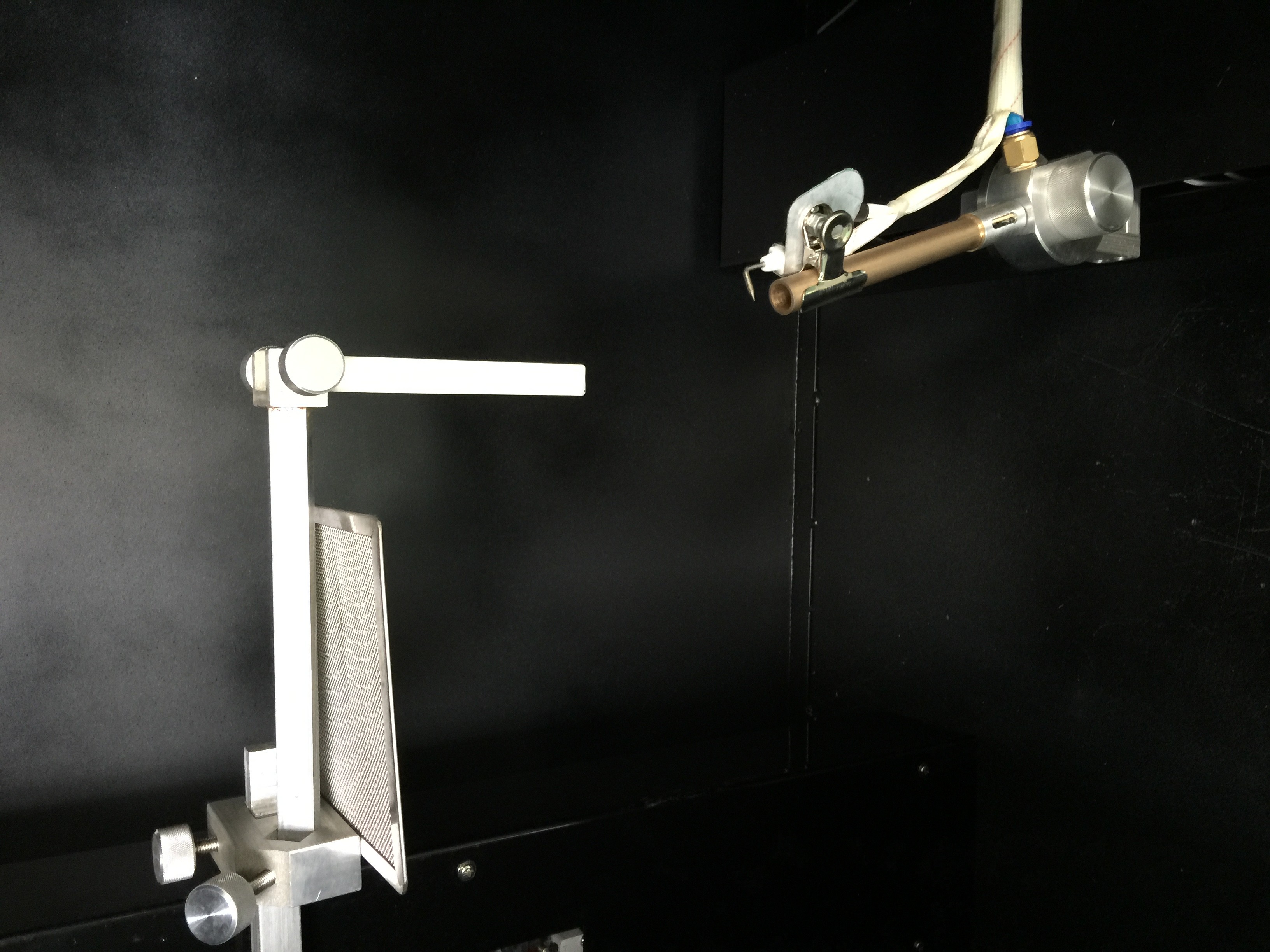

Specimen holder

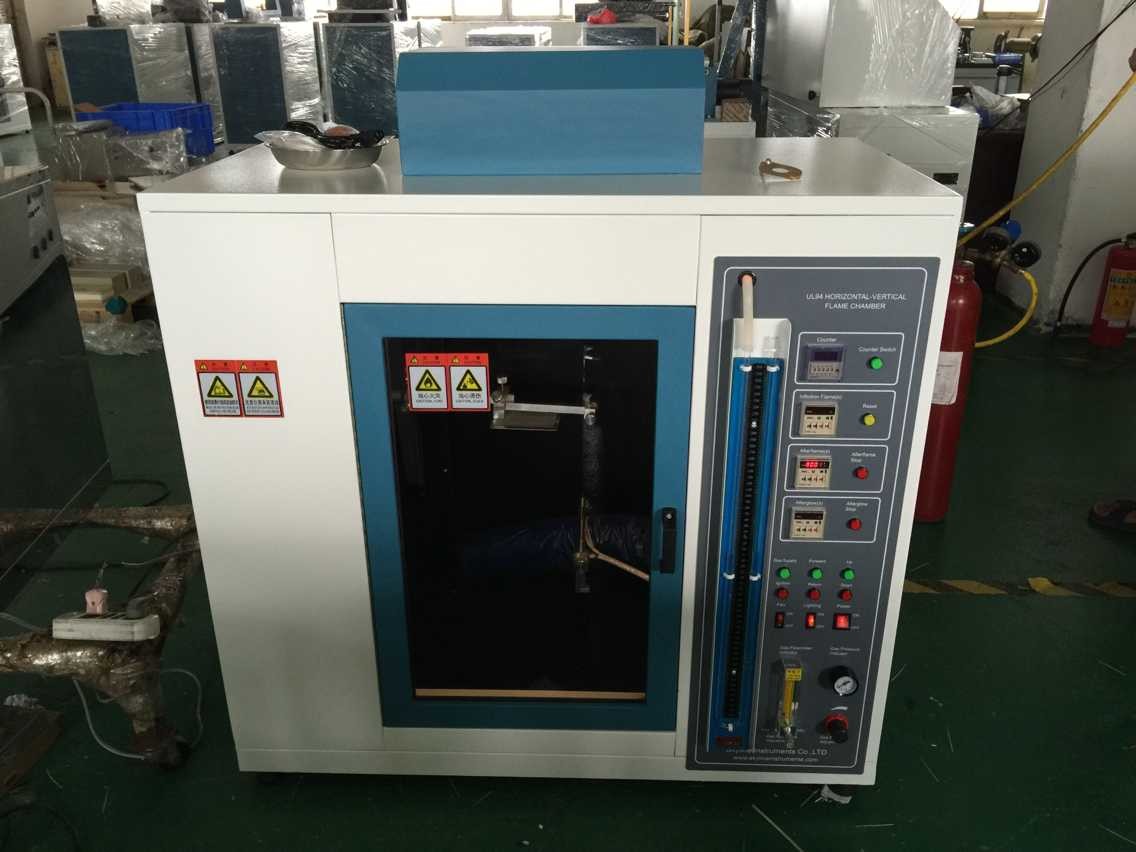

Controll panel

How do you test for flammability?

The various flammability tests are all similar in that they (1) orient a test sample either horizontally or vertically and place it in the test chamber; (2) apply a flame from a Bunsen Burner for a specified time; and (3) measure the time or distance that the flame propagates.
