Flammability Testing Equipment Vertical Flammability Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-S18T

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: plywood case

Delivery Time: 10 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 2 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                horizontal flammability tester, flammability test apparatus


SKYLINE:	Fabric Vertical Flammability Tester	Flame Height:	20 Mm / 40 Mm
Marker Threads:	45 Tex To 50 Tex	Volume:	(WxDxH) 80X55x66cm
Fire Mouth Angle:	0 ° / 30 °, 90 °	Specimen Holders:	12 Pcs
Standards:	ISO6941,ISO6940	Power Supply:	1∮ AC 220V 50Hz

SKYLINE:	Fabric Vertical Flammability Tester
Flame Height:	20 Mm / 40 Mm
Marker Threads:	45 Tex To 50 Tex
Volume:	(WxDxH) 80X55x66cm
Fire Mouth Angle:	0 ° / 30 °, 90 °
Specimen Holders:	12 Pcs
Standards:	ISO6941,ISO6940
Power Supply:	1∮ AC 220V 50Hz

Product Description

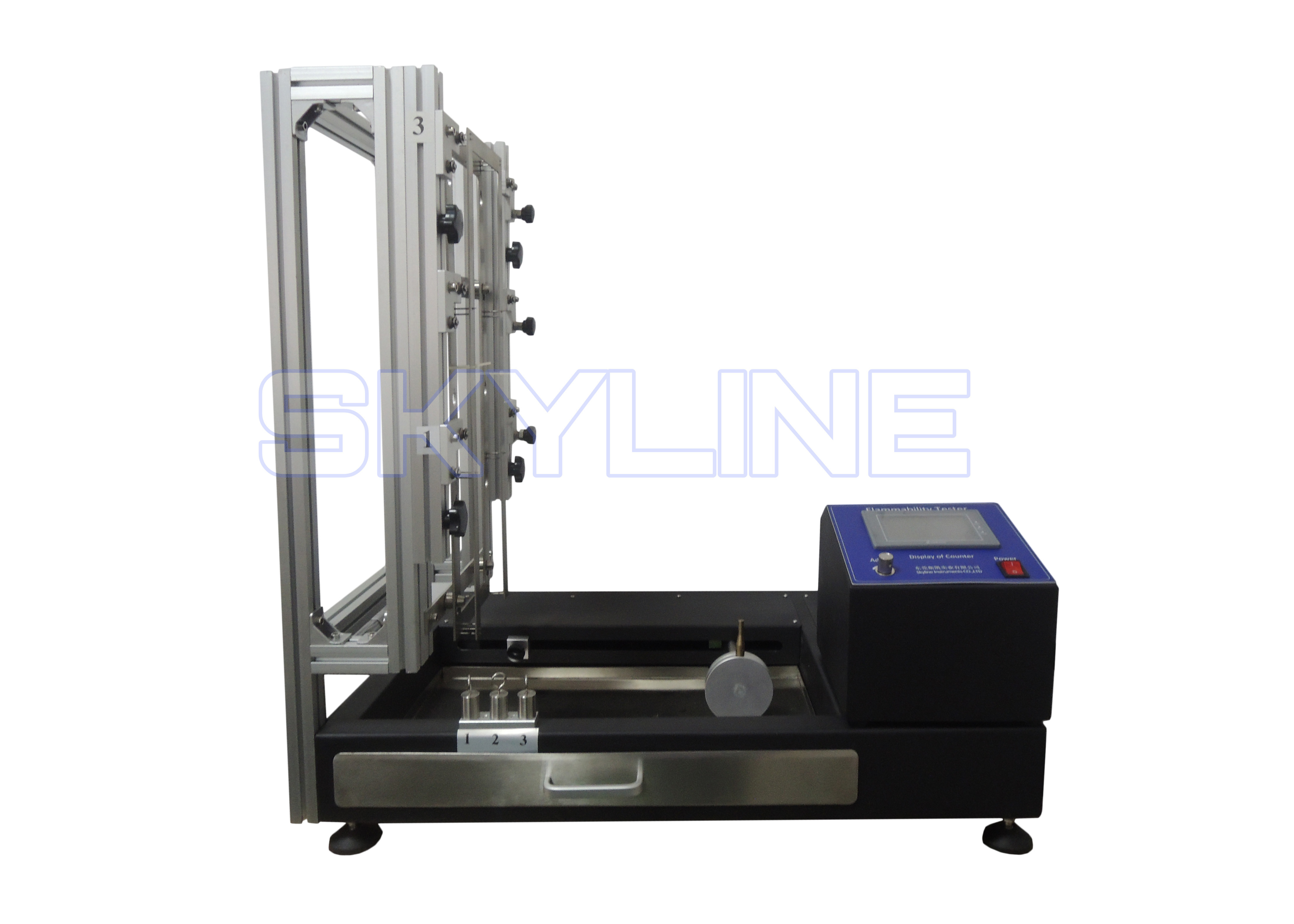

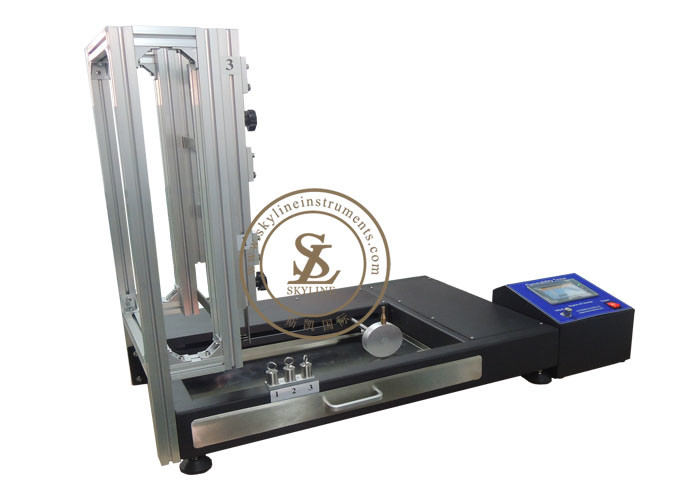

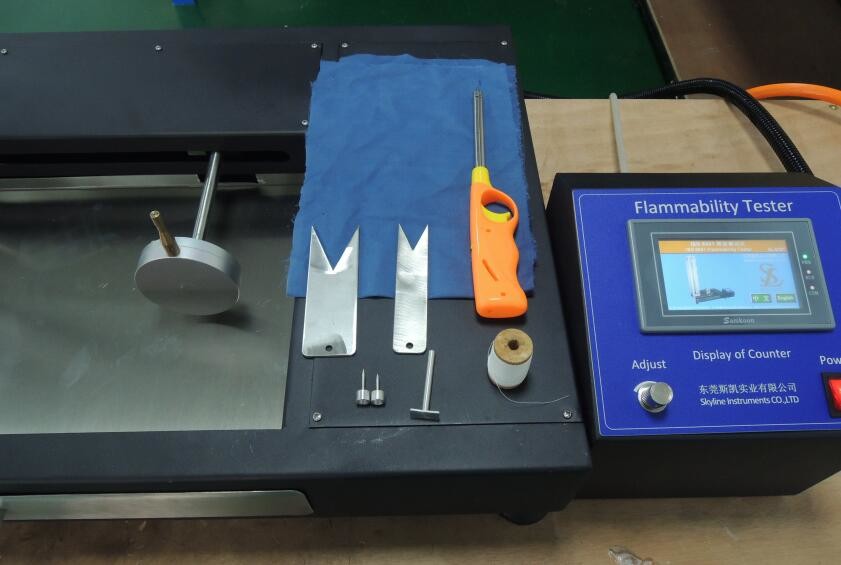

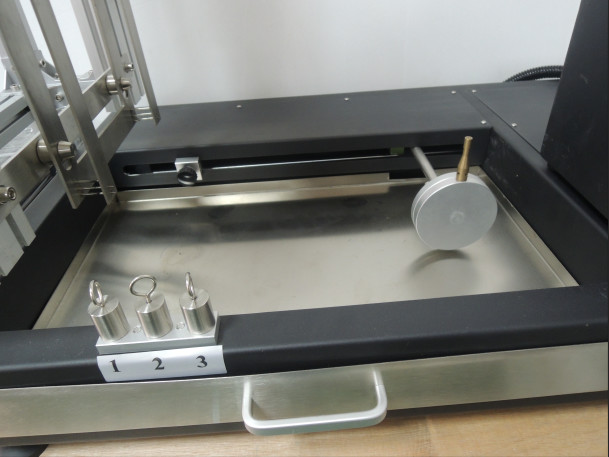

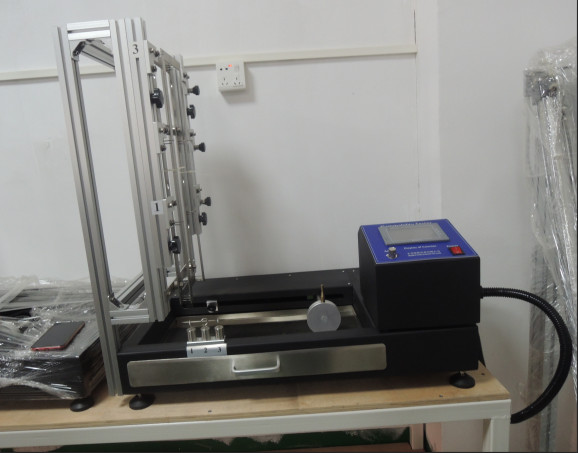

ISO 6941 Textile Fabrics Vertical Burning Tester

Application
ISO6941 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
It is also applicable to all kinds of textile material of flammability test;

Technical parameters

The ignition time setting range	0 ~ 99.99 s
The combustion timing range	0 ~ 999.9 s
Fire mouth Angle	with the horizontal Angle: 0 ° / 30 °, 90 ° can be adjusted
The test flame height	20 mm / 40 mm
Specimen holders	12 pcs
Marker Threads	45 tex to 50 tex
Combustion gas	commercial grade propane or butane or butane/propane mixtures
Volume (WxDxH)	80X55x66cm
Weight (about)	45 kg
Power Supply	1∮ AC 220V 50Hz
Test Standards	BS EN ISO 6940,EN ISO 6941

ISO 6940 Vertical Fabric Flammability Tester.pdf

Please review video of the Fabrics Vertical Burning Tester operation as below link:

https://youtu.be/X6zSjz2_QZI

Flammability Testing Equipment Vertical Flammability Tester 0

What fabrics are most flammable?

Cotton and linen are the most flammable fabrics. Both burn with a hot, vigorous flame that is unlikely to self-extinguish.
