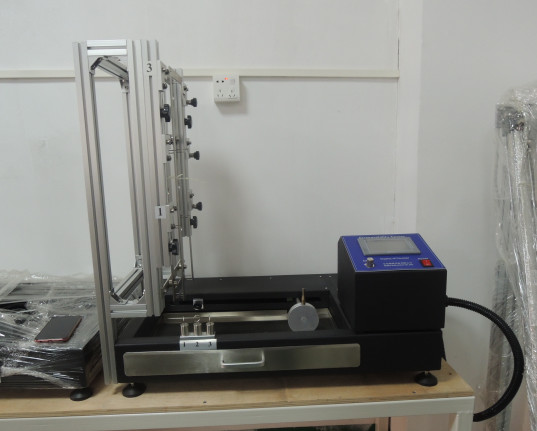

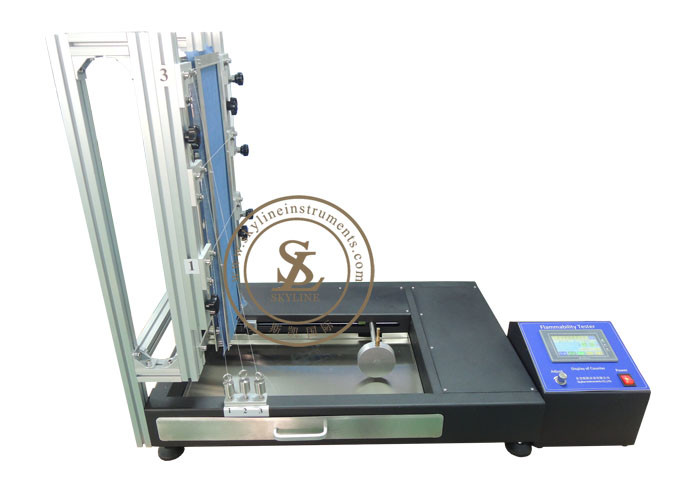

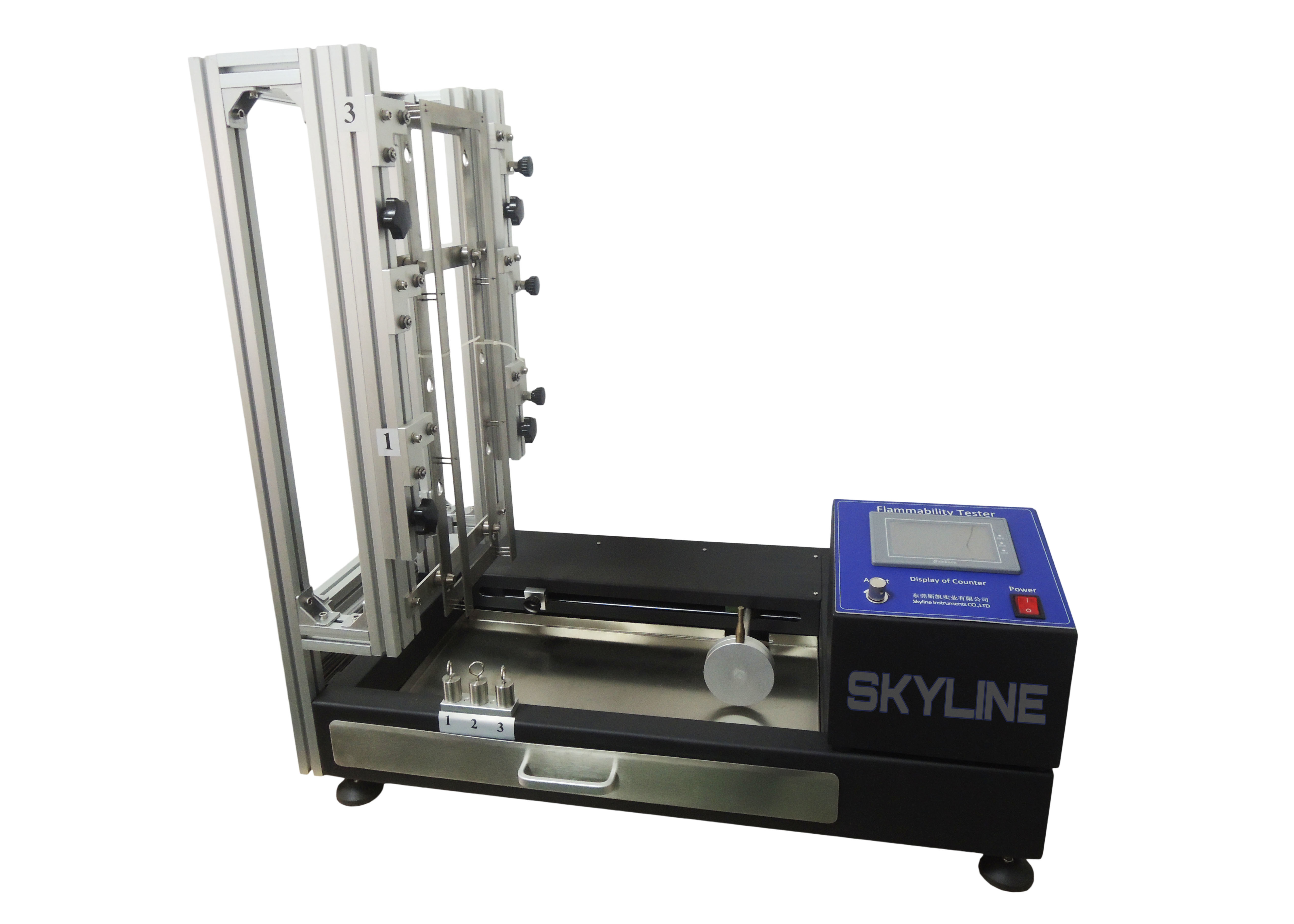

ISO 6940 Fabrics Vertical Flammability Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-S18T-I

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 10 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 2 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                horizontal flammability tester, flammability test apparatus


SKYLINE:	ISO6940 Fabrics Vertical Flammability Testing Equipment	Flame Height:	20 Mm / 40 Mm
Burning Gas:	Butane	Specimen Size:	560mmx170mm
Fire Mouth Angle:	0 ° / 30 °, 90 °	Standard:	ISO 6940/6941, BS EN1103/14878, ISO 15025:2002, DIN 54335/54336/66080. BS 5438/5722/5866/5867/6249/6341

SKYLINE:	ISO6940 Fabrics Vertical Flammability Testing Equipment
Flame Height:	20 Mm / 40 Mm
Burning Gas:	Butane
Specimen Size:	560mmx170mm
Fire Mouth Angle:	0 ° / 30 °, 90 °
Standard:	ISO 6940/6941, BS EN1103/14878, ISO 15025:2002, DIN 54335/54336/66080. BS 5438/5722/5866/5867/6249/6341

Product Description

ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material

Application

Vertical Flammability Tester , to determine the flammability resistance of vertical oriented fabrics, and 45°inclined fabrics material for toys, other material to making toys and soft-filling toy.

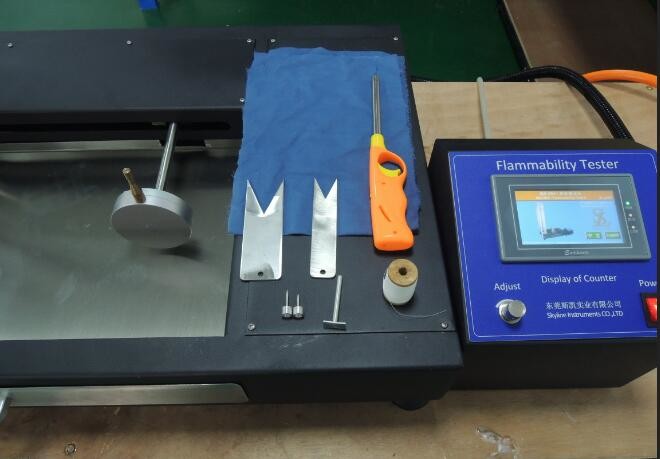

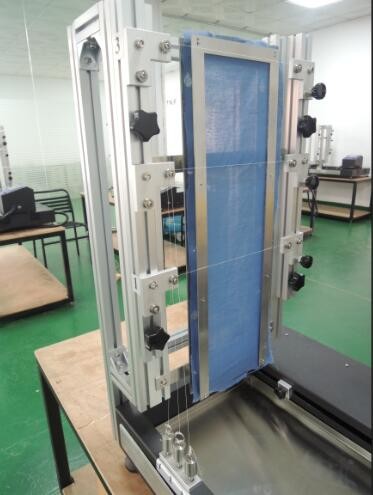

The gas is controlled by a solenoid valve, ignition time is digitally set and test result is displayed on large LCD. The improved marker threads mounting devices ensure easy and fast installation, with accurate burner and micro switch operated trip threads. 3 optical scanning devices are used to detect the severance of threads to offer accurate and reliable timing.

Test Standards

BS EN ISO 6940,EN ISO 6941

Description
ISO6940 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
It is also applicable to all kinds of textile material of flammability test;

Specifications

The ignition time setting range	0 ~ 99.99 s
The combustion timing range	0 ~ 999.9 s
Fire mouth Angle: with the horizontal Angle	0 ° / 30 °, 90 ° can be adjusted
The test flame height	20 mm / 40 mm
Specimen holders	12 pcs
Marker Threads	45 tex to 50 tex
Combustion gas	commercial grade propane or butane or butane/propane mixtures
Volume (WxDxH)	80X55x66cm
Weight (about)	45 kg
Power supply	1∮ AC 220V 50Hz

ISO 6940 Vertical Fabric Flammability Tester.pdf

ISO 6940 Fabrics Vertical Flammability Tester 0

How do you test the Flammability of fabric?

In the US flammability test, a standard flame 5/8 of an inch long is lowered onto the fabric specimen, which is from a garment or production fabric, at a 45 angle for one second. This configuration is used to approximate the position of fabric during wearing.
