ASTM D 2863 ISO 4589-2 Flammability Testing Equipment , Digital Oxygen Index Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-FL50
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 20 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1 unit/ month
Product Details
SKYLINE: ISO 4589-3 Oxygen Index Tester Standards: STM D 2863, ISO 4589-2, NES 714 ISO 4589-3,NES 715
Application: Test The Required Oxygen Concentration(volume Percent) In The Process Of Polymer Burning Height Of The Combustor: 4500mm
Flowmeter: 160~1600L Working Pressure: 0.05-0.15Mpa
Resolution Of The Pressure Gauge: 0.01Mpa Input Pressure: 0.2-0.3Mpa
Highlight:

horizontal flammability tester

,

flammability test apparatus
Product Description

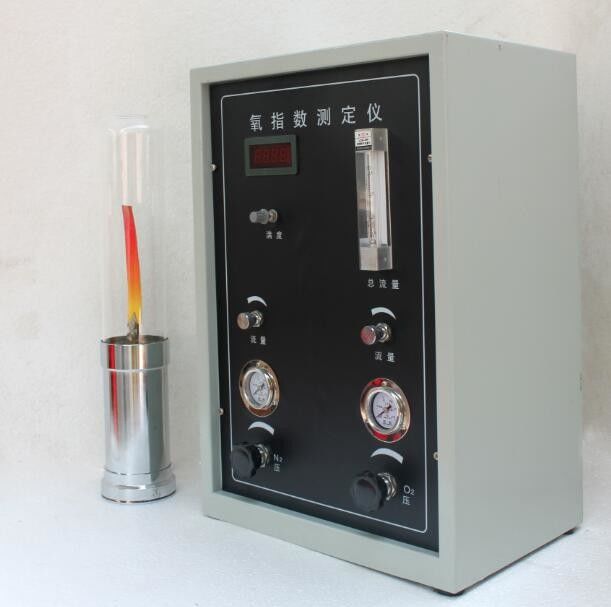

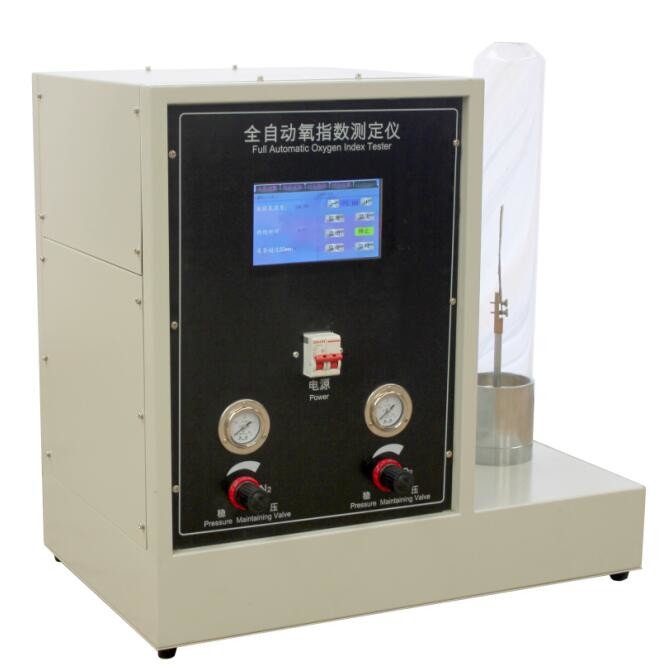

ASTM D 2863 ISO 4589-2  Digital Oxygen Index Tester

Applications
measures minimum oxygen concentration as necessary when specimen combustion. This equipment’s the oxygen analyser is adapted Paramagnetic Type which has a precise, long life, less error rate and high reliability.

Standards
ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707-2008 GB/T 8924-2005 GB/T 16581-1996 NB/SH/T 0815-2010 TB/T 2919-1998 IEC 61144-1992 ISO 15705-2002 ISO 4589-2-1996



Technical Parameters

 Internal diameter of the combustor

 100mm

 Height of the combustor

 450mm

 Pipe hole diameter of the long pole igniter trailing end diameter

 2±1mm

 Flowmeter

 160~1600L/Hadjustable

 Precision of the pressuregauge

 level 2.5

 Resolution of the pressure gauge

 0.01Mpa

 Resolution of the Oxygen concentrate indicator

 0.1%

 Oxygen sensor

 imported from Germany with high precision

 Gas source

 the GB3863 specified oxygen, the GB3864 specified nitrogen

 Experiment environment
temperature, humidity

10~35℃,45-75%

 Input pressure

 0.2-0.3Mpa

 Working pressure

 0.05-0.15Mpa

 Sample type

 self-supporting materials and non-self- supporting materials

 Overall dimensions

 700mm(W)×400mm(D)×600mm(H)

 Power supply

 AC220V, 50/60Hz 1A

 Air source source

 oxygen, nitrogen( prepared by users)




What is oxygen Index test?

Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index) ASTM D2863. Scope: ASTM D2863 is a method to determine the minimum concentration of oxygen in an oxygen/nitrogen mixture that will support a flaming burn in a plastic specimen.
