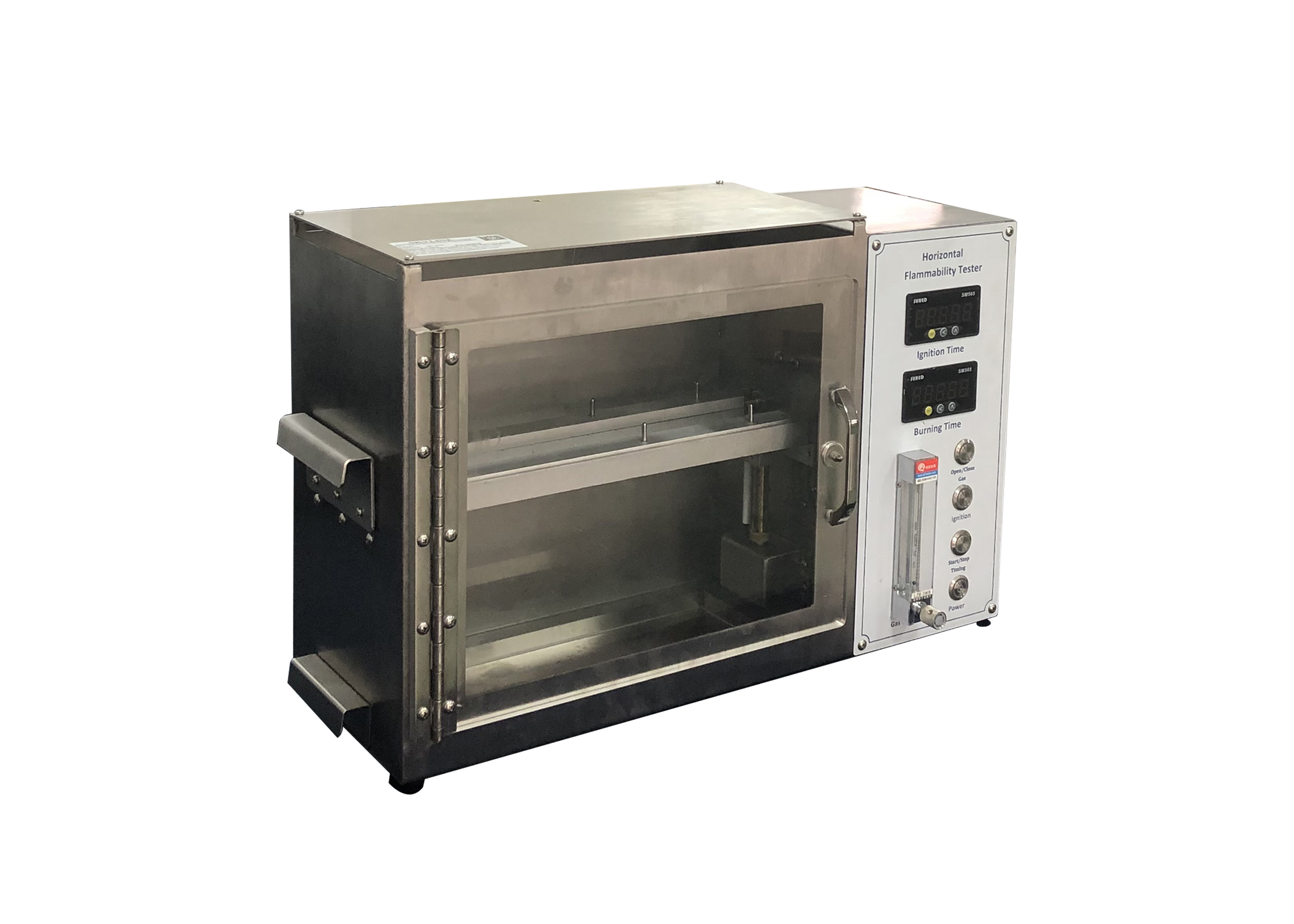

Automotive Interior Flammability Testing Equipment Horizontal Flammability Tester
Application
The horizontal flammability tester can detect the relative burning rate and flame retardancy of textiles, especially automotive interior fabrics. Flame retardant properties of automotive interior materials under fault and abnormal conditions.
Features
The tester is composed of a test part and a control part and adopts an integrated design, which is convenient for on-site installation and debugging.

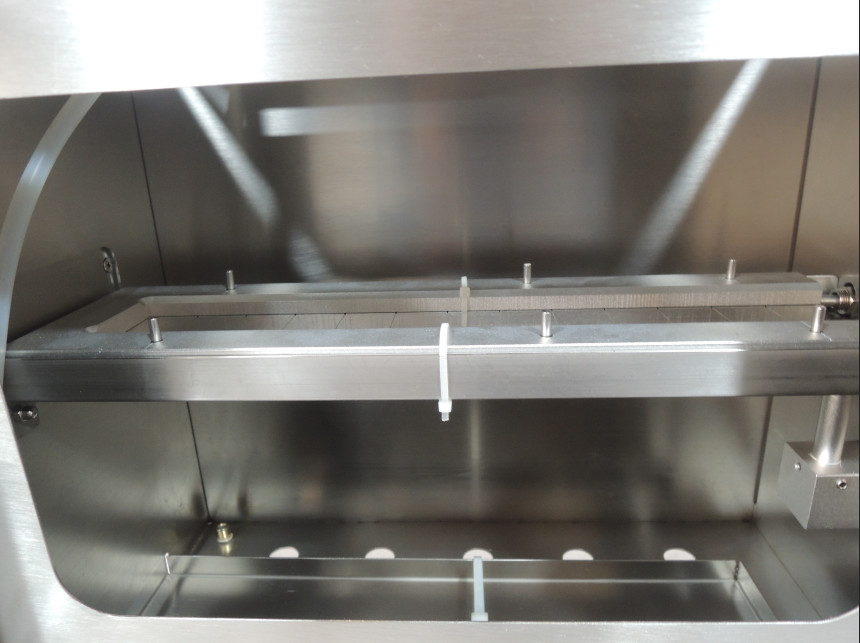

The shell and important parts of the test chamber are made of stainless steel, which is resistant to smoke and gas corrosion. The control system has a high degree of automation and has an automatic ignition function.
Digital display of temperature and time, convenient observation and recording, stable and reliable use
Standard test
ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D 1201, BSAU 16
Technical parameters
The gas source of the test flame is coal gas or liquefied petroleum gas (it is recommended to select gas with better gas quality if possible);
The inner diameter of the burner is ￠ 9.5 ± 0.5mm, the length is about 100mm, and there is an air conditioning hole;
The flame height is easy to adjust, and can be adjusted from 20mm to 175mm according to standard requirements;
Flame application time and holding time can be adjusted within the range of 0 to 99 minutes and 99 seconds;
Automatic control of the test process; volume m3 in the box: 0.05;
Overall dimensions (mm): 545 (L) * 235 (W) * 370 (H) (internal Dimensions: 385x210x335)
Power supply: AC220V ± 10% / 50Hz
Horizontal Flammability Tester operation video link:
https://youtu.be/lsOBffM3P-A
Horizontal Flammability Tester.pdf

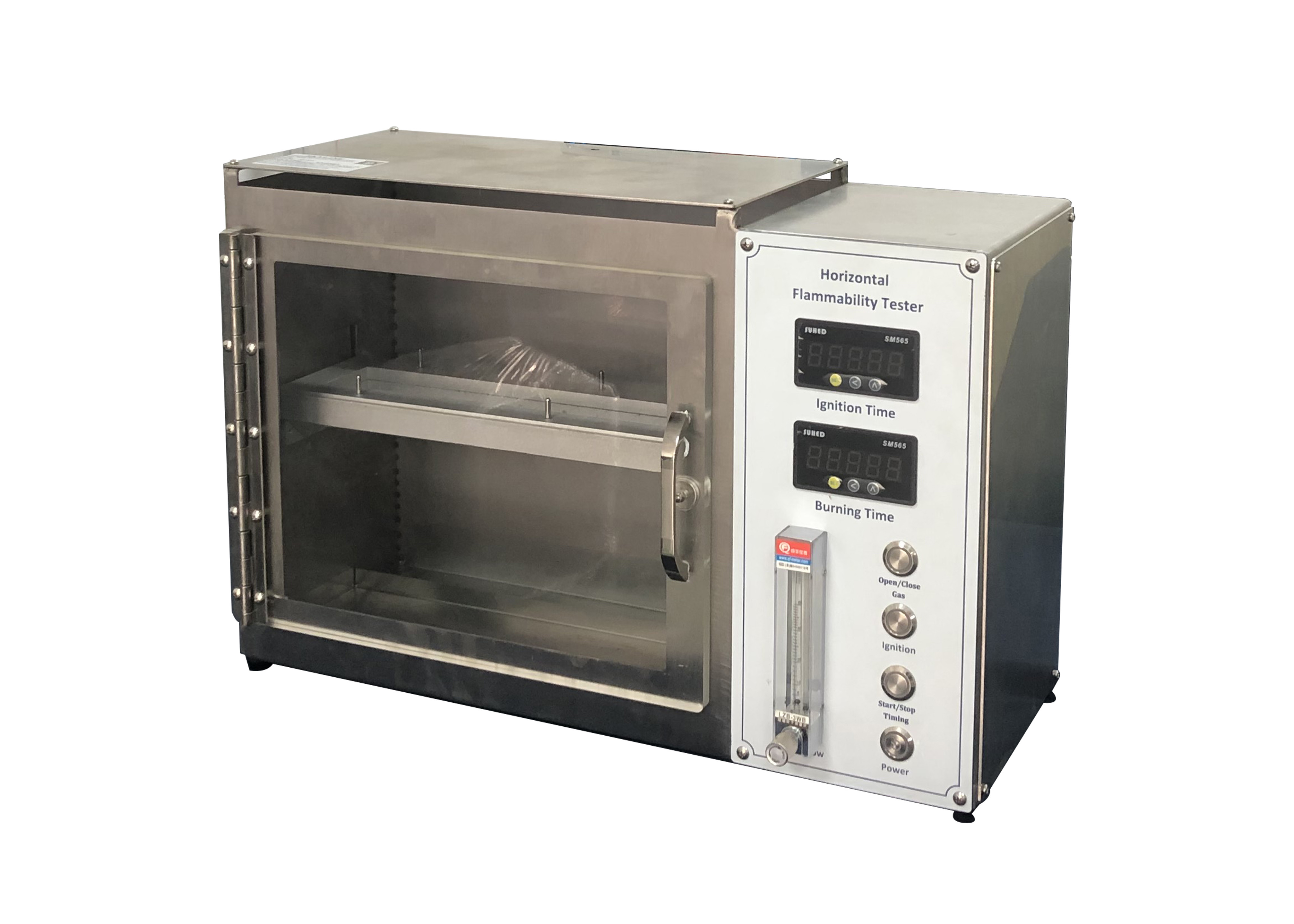

Ignition Timer:Control ignition time, factory setting 15S.
Burning Timer: The time the flame spreads from the first marking line to the second marking line, or the time when the second marking line is not extinguished.
Start Timing:The flame spreads to the first marker line and presses this button to start the timer.
Stop Timing:The flame spreads to the second marking line, press this button to burn the time timer to stop timing
Gas:When the experiment is ignited, first press this button to open the air valve, turn on the steam source, and then ignite.
Power:Instrument power switch
